A Comparison Of The Grinding Process For Hard Vs Soft Minerals

A Comparison Of The Grinding Process For Hard Vs Soft Minerals

The mineral processing industry faces diverse challenges when dealing with materials of varying hardness and abrasiveness. Understanding the fundamental differences in grinding hard versus soft minerals is crucial for optimizing efficiency, reducing operational costs, and selecting the appropriate equipment. This article provides a comprehensive comparison of the grinding processes for these distinct material categories, highlighting the technological solutions that address their unique characteristics.

1. Fundamental Properties: Hard vs. Soft Minerals

The classification of minerals as “hard” or “soft” is primarily based on their Mohs hardness scale rating. Hard minerals, such as quartz, feldspar, granite, and corundum, typically have a Mohs hardness greater than 5. They are characterized by high compressive strength, significant abrasiveness, and often, high silica content. In contrast, soft minerals like calcite, gypsum, talc, kaolin, and limestone have a Mohs hardness below 5. They are generally less abrasive, more friable, and may exhibit plasticity or moisture sensitivity.

The core distinction lies in their resistance to comminution. Hard minerals require more energy to fracture, generating significant wear on grinding media and mill liners. Soft minerals, while easier to break, can present challenges like agglomeration, packing, and heat sensitivity, which can hinder the grinding process and affect final product quality.

2. Key Differences in the Grinding Process

2.1 Energy Consumption and Comminution Efficiency

Grinding hard minerals is inherently an energy-intensive process. A substantial portion of the input energy is consumed in overcoming the material’s high fracture toughness, with a significant fraction being dissipated as heat, noise, and equipment wear. The Bond Work Index, a standard measure of grindability, is high for hard minerals, directly correlating to higher specific energy consumption (kWh/t).

For soft minerals, the energy requirement per ton of material is considerably lower. However, the challenge shifts from breaking the particle to controlling the fineness and particle size distribution. Over-grinding is a common risk, where excessive energy input leads to the production of ultra-fines that can be undesirable for certain applications and can cause operational issues like packing.

2.2 Wear and Tear on Equipment

This is one of the most critical differentiators. The abrasive nature of hard minerals accelerates the wear of grinding media (balls, rods) and mill liners. This not only increases maintenance costs and downtime for replacements but also leads to contamination of the final product with worn metal fragments.

Soft minerals cause minimal abrasive wear. The primary concerns are often related to the buildup of material on grinding surfaces (packing) or the coating of grinding media, which can reduce grinding efficiency over time.

2.3 Particle Size Distribution and Final Product Characteristics

Hard minerals tend to produce a more controlled and narrower particle size distribution when ground correctly. Their brittle nature often leads to cleaving along crystal planes, resulting in sharper, more angular particles.

Soft minerals, being more friable, can be easily over-ground into a very fine, sometimes platy or rounded powder. Achieving a consistent, coarse grind can be more challenging than achieving a fine one. Furthermore, the heat generated during grinding can sometimes alter the chemical or physical properties of temperature-sensitive soft minerals.

3. Equipment Selection: Tailoring the Technology to the Material

Selecting the right grinding mill is paramount for economic and operational success. The choice varies significantly based on whether the feed material is hard or soft.

3.1 Grinding Hard Minerals

For hard and abrasive materials, robustness and wear resistance are the top priorities. Equipment designed for these applications must minimize wear and handle high energy inputs.

• Ball Mills: A classic choice for hard ores. The tumbling action of heavy steel or ceramic balls provides high-impact force necessary for breaking tough particles. They are highly adaptable but can be less energy-efficient for fine grinding.

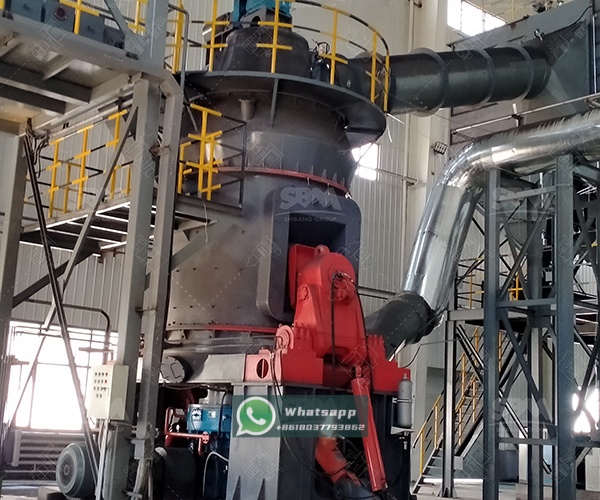

• Vertical Roller Mills (VRM): Modern VRMs, like the LM Vertical Grinding Mill from Shanghai Zenith Machinery, are increasingly used for hard minerals. They operate on the principle of compression grinding between rollers and a table, which is a more efficient method than impact for many hard materials. Their integrated drying system is also beneficial for moist feeds.

For operators processing hard, abrasive ores who require a robust and efficient solution, the LM Vertical Grinding Mill series offers an excellent balance of performance, durability, and energy efficiency. Its integrated design combines multiple processes into a single unit, saving space and reducing overall power consumption.

3.2 Grinding Soft Minerals

For soft and non-abrasive materials, the focus shifts to achieving precise fineness control, minimizing over-grinding, and managing heat. Attrition and shear forces become more important than high-impact breaking.

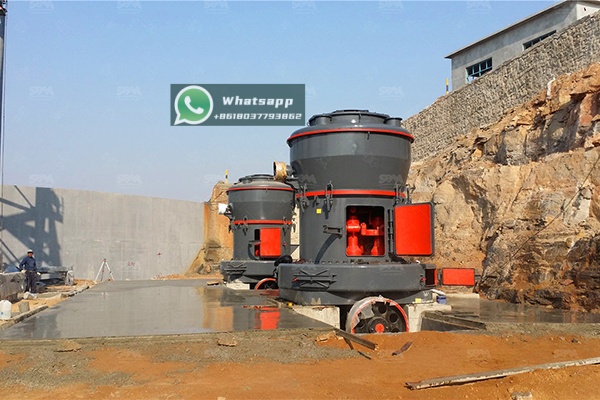

• Raymond Mill (Vertical Roller Mill): Excellent for medium to fine grinding of soft minerals. It uses spring-loaded rollers to apply pressure to a rotating ring, creating a shearing and compression action ideal for friable materials.
• Ultrafine Grinding Mills: For producing superfine powders from soft minerals, mills like the XZM Ultrafine Grinding Mill are ideal. They utilize a high-speed rotor and precise air classification to generate powders as fine as 2500 mesh without significant heat buildup.

When the application demands ultra-fine powders from soft to medium-hard materials, the XZM Ultrafine Grinding Mill is a superior choice. Its advanced design ensures a narrow particle size distribution and high production efficiency for superfine powder applications in industries like paints, coatings, and plastics.

4. Operational Considerations and Best Practices

4.1 For Hard Minerals:

• Media Selection: Use high-chromium or ceramic grinding media to reduce wear and contamination.
• Circuit Design: Often operated in closed circuit with classifiers to ensure target fineness and avoid unnecessary recirculation of fine, hard particles that contribute to wear.
• Mill Lining: Utilize wear-resistant liners with optimized lifter profiles to enhance grinding efficiency and service life.

4.2 For Soft Minerals:

• Temperature Control: Implement air cooling or water injection systems to prevent thermal degradation of the product.
• Air Classification: Integrate highly efficient dynamic classifiers to separate fines immediately, preventing them from being re-ground and consuming extra energy.
• Moisture Management: Use mills with integrated drying capabilities if the raw material has high moisture content.

5. Conclusion

The grinding processes for hard and soft minerals are fundamentally distinct, dictated by the materials’ physical properties. Hard mineral processing is a battle against abrasiveness and high energy demands, requiring robust, wear-resistant equipment. Soft mineral processing, while less energy-intensive, demands precision, temperature control, and strategies to avoid over-grinding. As a leading manufacturer in the field, Shanghai Zenith Machinery Co., Ltd. offers a comprehensive portfolio of grinding equipment, such as the rugged LM Vertical Grinding Mill for hard materials and the precise XZM Ultrafine Grinding Mill for soft ones, enabling operators to select the perfect technology to maximize their productivity and profitability, regardless of the material’s hardness.
