In the complex world of industrial grinding operations, numerous factors influence the selection of appropriate milling equipment. While parameters like hardness, abrasiveness, and desired fineness often take center stage, one critical variable that frequently receives insufficient attention is material moisture content. The presence of water in raw materials can dramatically alter grinding efficiency, equipment performance, and final product quality, making moisture consideration essential for optimal mill selection.
Material moisture content affects grinding operations through multiple mechanisms. At low moisture levels (typically below 1-2%), water can act as a grinding aid, reducing dust generation and potentially lowering energy consumption. However, as moisture content increases beyond critical thresholds, detrimental effects become increasingly pronounced.
Excessive moisture leads to material agglomeration, where particles stick together, forming larger clusters that resist size reduction. This phenomenon directly impacts grinding efficiency, as energy is wasted in breaking apart these agglomerates rather than reducing primary particle size. Furthermore, moist materials tend to adhere to grinding surfaces and internal mill components, causing buildup that reduces throughput and requires more frequent maintenance shutdowns.
The table below illustrates how different moisture levels typically affect grinding operations:
| Moisture Range | Impact on Grinding | Common Challenges |
|---|---|---|
| 0-2% | Minimal impact, potential dust reduction | Dust control may be necessary |
| 2-5% | Moderate efficiency reduction | Beginning of agglomeration, mild buildup |
| 5-10% | Significant efficiency loss | Severe agglomeration, material sticking |
| 10%+ | Severe operational issues | Blockages, complete grinding failure |
Different mill types exhibit varying tolerances to moisture content, making proper equipment selection crucial for handling materials with significant water presence. Traditional grinding approaches often involve pre-drying materials before processing, but this adds substantial energy costs and operational complexity. Modern milling solutions increasingly integrate drying capabilities directly into the grinding process, offering more efficient alternatives.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has developed advanced solutions specifically designed to handle materials with varying moisture content. Their expertise in ultra-fine powder grinding extends to developing mills that efficiently process moist materials without requiring separate drying systems.

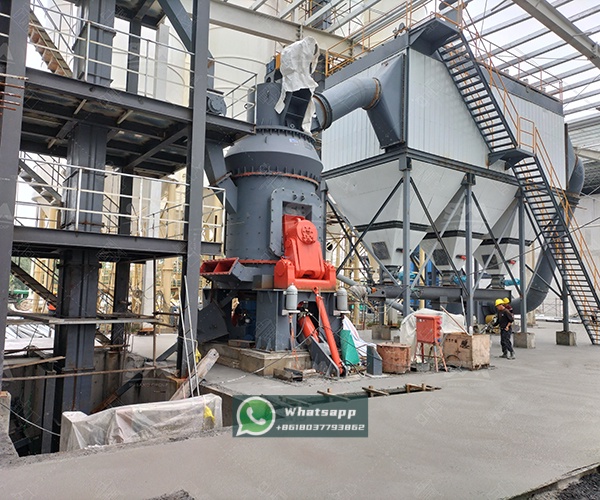

For operations dealing with moderately moist materials (typically up to 10-15% moisture content), Zenith’s LM Vertical Grinding Mill represents an optimal solution. This innovative equipment integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. The vertical design facilitates efficient material flow while the integrated drying system utilizes hot gas introduced through the mill base to simultaneously dry and grind materials.
The technical specifications for the LM Vertical Grinding Mill series demonstrate its capability to handle various material types with different moisture levels:
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For operations requiring ultrafine grinding of materials with moderate moisture content (typically below 6%), Zenith’s XZM Ultrafine Grinding Mill offers specialized capabilities. This mill is widely used for superfine powder production and can achieve remarkable fineness levels between 325-2500 mesh while efficiently handling the challenges posed by material moisture.
The XZM series incorporates advanced design features that minimize moisture-related issues, including optimized airflow patterns that facilitate moisture removal during the grinding process. The technical parameters highlight its versatility:
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
A practical example demonstrates the importance of proper mill selection for moist materials. A mining operation processing limestone with 8% moisture content initially used conventional ball mills, experiencing frequent clogging and achieving only 60% of designed capacity. After switching to Zenith’s LM Vertical Grinding Mill with integrated drying capabilities, the operation achieved 95% of designed capacity while reducing specific energy consumption by 18%. The integrated drying system eliminated the need for separate pre-drying equipment, resulting in significant capital and operational cost savings.
Beyond equipment selection, several operational strategies can optimize grinding performance with moist materials:
The evolution of grinding technology continues to address moisture challenges with increasing sophistication. Shanghai Zenith Machinery is at the forefront of these developments, with ongoing research focused on enhancing the moisture handling capabilities of their grinding equipment. Future innovations may include advanced material flow optimization, more efficient heat transfer mechanisms, and intelligent control systems that automatically adjust to varying moisture conditions.
Material moisture content remains a critical, often underestimated factor in mill selection and operation. The progressive approach of integrating drying capabilities directly into grinding equipment, as exemplified by Shanghai Zenith Machinery’s LM Vertical Grinding Mill and XZM Ultrafine Grinding Mill, offers significant advantages for processing moist materials. By carefully considering moisture content during equipment selection and implementing appropriate operational strategies, industrial operations can achieve optimal grinding performance, energy efficiency, and product quality across a wide range of material conditions.
As grinding technology continues to advance, the ability to efficiently handle materials with varying moisture content will remain a key differentiator for equipment manufacturers and a critical success factor for industrial operations worldwide.
