A Deep Dive Into The Lubrication Systems Of Our European Mills

A Deep Dive Into The Lubrication Systems Of Our European Mills

In the demanding world of industrial mineral processing, the efficiency, reliability, and longevity of grinding equipment are paramount. At the heart of this performance lies a critical, yet often overlooked, component: the lubrication system. A well-engineered lubrication system is not merely an accessory; it is the lifeblood of the mill, ensuring smooth operation, minimizing wear, and protecting significant capital investment. This article explores the sophisticated lubrication technologies integrated into our European-standard mills, highlighting how they contribute to superior operational outcomes.

The Critical Role of Lubrication in Grinding Operations

Grinding mills operate under extreme conditions, subjecting their mechanical components to heavy loads, high temperatures, and constant vibration. The primary functions of the lubrication system in this context are multifaceted:

• Friction Reduction: Creating a protective film between moving parts like trunnion bearings, gears, and pinions to minimize metal-on-metal contact.
• Heat Dissipation: Carrying away heat generated by friction and the grinding process itself, preventing thermal degradation of components.
• Contaminant Removal: Flushing out abrasive particles and metallic debris that can accelerate wear.
• Corrosion Protection: Forming a barrier that shields metal surfaces from moisture and oxidative damage.

A failure in the lubrication system can lead to catastrophic bearing seizure, gear damage, and extended, costly downtime. Therefore, our design philosophy integrates lubrication as a core system from the ground up.

Advanced Lubrication System Architectures in Zenith Mills

Our mills feature customized lubrication solutions tailored to the specific demands of each machine type. We employ two primary systems:

1. Centralized Circulating Oil Systems

For large-scale mills like our Ball Mills and LM Vertical Mills, which feature massive main bearings, we implement high-pressure, circulating oil systems. These systems typically include:

• Main and Standby Pumps: Ensuring an uninterrupted supply of lubricant.
• Oil Coolers: Essential for maintaining optimal oil temperature, especially in high-capacity operations.
• Filtration Units: Multi-stage filtration, often with duplex filters, to maintain oil cleanliness and protect sensitive components.
• Monitoring Sensors: Continuous monitoring of oil pressure, temperature, and flow, with automated alerts and shutdown protocols to prevent damage.

2. Automatic Grease Lubrication Systems

For components such as roller bearings in our Raymond Mills, MTW, and MTM series, we utilize automated grease lubrication systems. These systems provide precise, timed injections of grease, which is crucial for:

• Eliminating manual lubrication, reducing labor costs and human error.
• Ensuring consistent lubrication even in hard-to-reach areas.
• Preventing both under-lubrication (causing wear) and over-lubrication (causing overheating and seal damage).

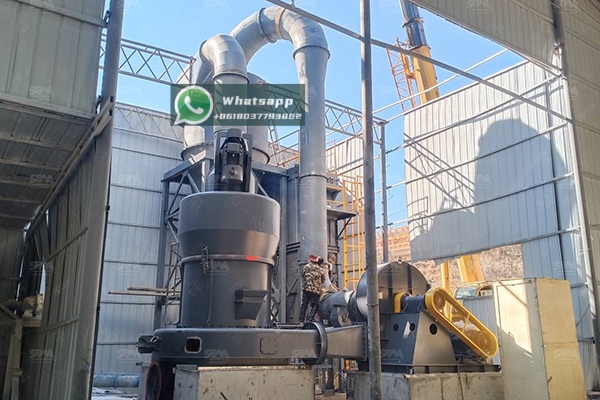

Showcasing Zenith Technology: The MTW Trapezium Grinding Mill

A prime example of our commitment to advanced engineering is the MTW Trapezium Grinding Mill. This mill incorporates a highly efficient and reliable lubrication system that is integral to its renowned performance and durability. Designed with multiple national patents, the MTW series is built for processing a wide range of materials with a focus on energy efficiency and environmental protection.

The mill’s bevel gear transmission adopts a sealed gear box and fluid coupling, ensuring smooth operation and a significant reduction in noise and vibration. The centralized, automated lubrication system allows for one-time injection of grease during an entire shift, drastically simplifying maintenance. This robust design, combined with its superior lubrication, makes the MTW series an ideal choice for European mills requiring high uptime and low operational costs.

Pushing the Boundaries with the LUM Ultrafine Vertical Mill

For applications demanding ultra-fine powders, our LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. Its lubrication system is designed to support the mill’s high-precision, high-speed operation. The system ensures that the critical grinding roller bearings and the sophisticated classifier are consistently and perfectly lubricated.

The LUM mill integrates grinding, drying, classifying, and conveying into a single, compact unit. Its intelligent control system extends to lubrication management, providing real-time monitoring and control. This not only guarantees operational reliability but also contributes to the mill’s exceptional energy efficiency and its ability to produce products with a high content of end-fines, up to D97 = 5-30μm.

Best Practices for Lubrication System Maintenance

Advanced technology must be paired with disciplined maintenance. We recommend the following best practices for our clients:

1. Use the Correct Lubricant: Always use the oil or grease type and viscosity grade specified in the mill’s manual.
2. Regular Oil Analysis: Implement a routine oil analysis program to monitor for contamination, wear metals, and lubricant degradation.
3. Maintain Filter Elements: Change filter elements as recommended or when the differential pressure indicator signals a blockage.
4. Keep Reservoirs Clean: Ensure that oil reservoirs are kept clean and free of water ingress.
5. Train Personnel: Ensure that operational and maintenance staff are thoroughly trained on the specific lubrication system of their mill.

Conclusion

The lubrication systems in our European-standard mills are not an afterthought but a foundational element of their design. By integrating robust, automated, and intelligent lubrication solutions into equipment like the MTW Trapezium Mill and the LUM Ultrafine Vertical Mill, we deliver machinery that offers unparalleled reliability, efficiency, and a lower total cost of ownership. For any operation looking to optimize its grinding process, investing in equipment with a superior lubrication system is a decisive step towards achieving peak performance and sustained profitability.
