In the modern industrial landscape, the demand for precise control and energy efficiency in grinding operations has never been higher. Variable Speed Drives (VSDs) have emerged as a cornerstone technology in mill control systems, offering unprecedented flexibility and optimization. This article explores the critical role of VSDs in controlling various types of grinding mills, with a focus on enhancing performance, reducing operational costs, and improving product quality.
Variable Speed Drives are electronic devices that control the speed and torque of an electric motor by varying the frequency and voltage of its power supply. In the context of grinding mills, this capability translates directly into process control. By adjusting the mill’s rotational speed, operators can influence a multitude of factors including particle size distribution, throughput, and energy consumption. The ability to fine-tune the mill’s operation to match the specific characteristics of the feed material is a game-changer in mineral processing and powder production.
The implementation of VSD technology in mill control systems offers numerous advantages. Energy savings often represent the most significant benefit, as mills can operate at optimal speeds rather than constantly at full capacity. This can lead to energy reductions of 20-30% in many applications. Furthermore, VSDs enable soft-start capabilities, reducing mechanical stress on the mill and its drive train during startup. This extends equipment lifespan and reduces maintenance requirements. Process optimization is another critical advantage, as operators can adjust mill speed in real-time to respond to changes in feed material or desired product specifications.
The effectiveness of VSD technology is highly dependent on its integration with appropriately designed grinding equipment. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment, has developed mills that are particularly well-suited for VSD control. Their extensive range of grinding equipment includes solutions for everything from coarse crushing to ultra-fine powder production.

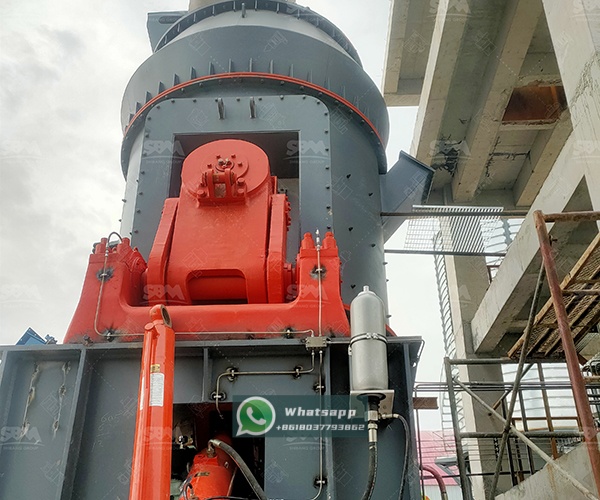

Among Zenith’s comprehensive product lineup, the LM Vertical Grinding Mill stands out as an ideal platform for VSD implementation. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. The vertical design naturally lends itself to variable speed control, as adjustments to the grinding table speed directly impact grinding efficiency and product fineness.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
When paired with a modern VSD system, the LM Vertical Grinding Mill achieves remarkable operational flexibility. Operators can fine-tune the grinding process to accommodate variations in raw material hardness, moisture content, and desired product specifications. The compact design and integrated functions further enhance the benefits of variable speed control, creating a highly efficient grinding system that minimizes energy consumption while maximizing output quality.
For applications requiring ultra-fine powder production, Zenith’s LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This advanced mill integrates grinding, drying, classifying, and transportation in a compact footprint. The precision control offered by VSD technology is particularly valuable in ultra-fine grinding applications, where minute adjustments to operational parameters can significantly impact the final product characteristics.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The integration of VSD control with the LUM Ultrafine Vertical Mill enables producers to achieve consistent product quality in the most demanding fine powder applications. The intelligent control system, combined with variable speed operation, allows for automated adjustments that maintain optimal grinding conditions despite variations in feed material or ambient conditions.

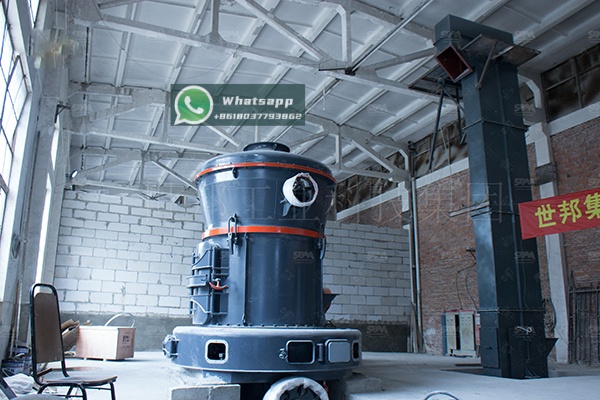

Implementing VSD technology in mill control requires careful consideration of the overall control strategy. Modern approaches often incorporate multi-loop control systems that monitor and adjust multiple parameters simultaneously. Key measured variables typically include motor current, mill sound, bearing pressure, and product fineness. The VSD serves as the primary actuator in this control scheme, adjusting mill speed to maintain the process at its optimal operating point.
Advanced control systems can further enhance the benefits of VSD implementation. Model Predictive Control (MPC) algorithms can anticipate process changes and make preemptive adjustments to mill speed, minimizing product quality variations. Similarly, artificial intelligence and machine learning approaches can identify optimal operating patterns based on historical data, continuously improving process efficiency.
The decision to implement VSD technology in mill control systems must be justified by economic considerations. While the initial investment can be significant, the return on investment is typically compelling. Energy savings alone often justify the expenditure, with payback periods frequently ranging from 12 to 36 months. Additional benefits, including reduced maintenance costs, extended equipment life, improved product quality, and increased production flexibility, further enhance the economic argument for VSD implementation.
When evaluating the economic impact, it’s important to consider the specific characteristics of the grinding equipment. Mills with higher power ratings, such as Zenith’s LM280K with its 1250 kW main motor, typically offer the most significant energy savings potential. Similarly, applications with variable feed materials or frequently changing product specifications benefit disproportionately from the flexibility offered by VSD control.
The evolution of VSD technology for mill control continues at a rapid pace. Emerging trends include the integration of Industrial Internet of Things (IIoT) capabilities, enabling remote monitoring and control of grinding operations. Digital twin technology is also gaining traction, allowing operators to simulate process changes and optimize VSD settings before implementing them in the actual production environment.
Advances in power electronics are making VSD systems more efficient and reliable, while reductions in cost are making the technology accessible for smaller grinding operations. The ongoing development of more sophisticated control algorithms promises to further enhance the benefits of variable speed control, pushing the boundaries of what is possible in grinding efficiency and product quality.
Variable Speed Drives have revolutionized mill control, offering unprecedented levels of efficiency, flexibility, and precision. When integrated with advanced grinding equipment such as Shanghai Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, VSD technology enables producers to optimize their operations across multiple dimensions. The combination of sophisticated grinding machinery and precise speed control represents the future of industrial powder processing—a future characterized by reduced energy consumption, enhanced product quality, and improved operational economics.
As the industry continues to evolve, the synergy between advanced mill design and sophisticated control technology will only become more important. Companies that embrace these technologies position themselves for success in an increasingly competitive global market, where efficiency and quality are paramount.
