In modern agriculture, the proper conditioning of soil is crucial for optimal crop growth and yield. Two of the most important soil amendments are gypsum and agricultural lime. Gypsum (calcium sulfate) helps to improve soil structure, reduce crusting, aid in seedling emergence, and improve water infiltration, while lime (calcium carbonate) is essential for correcting soil acidity. Often, these materials are blended to address multiple soil issues simultaneously. The effectiveness of these blends, however, is heavily dependent on their fineness and uniformity. This is where advanced grinding technology, specifically the Raymond Mill, plays a pivotal role.
The reactivity and speed of action of gypsum and lime in the soil are directly proportional to their surface area. Finer particles dissolve and react more quickly with the soil, providing faster correction of pH and soil structure. A coarse, uneven blend will lead to patchy application results, with some areas receiving too much amendment and others not enough. A high-quality Raymond Mill is engineered to produce a consistent, fine powder with a narrow particle size distribution, ensuring every granule of the final product is effective and that the blend is homogenous.

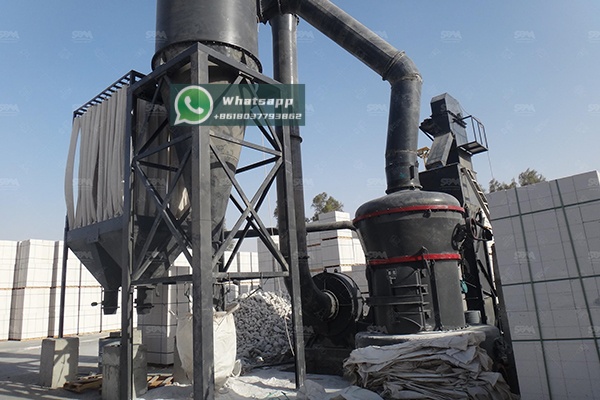

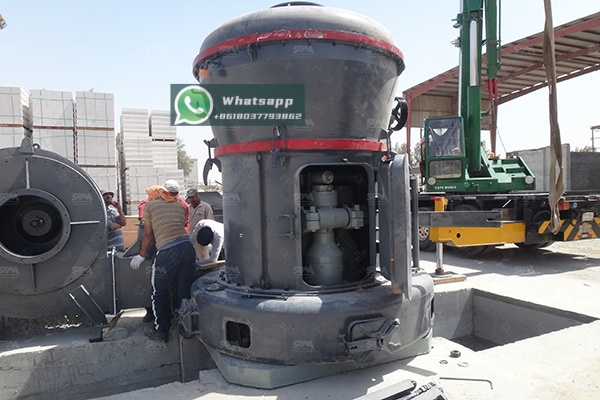

The Raymond Mill, a type of roller mill, is an ideal choice for grinding non-metallic minerals like gypsum and limestone. The process begins with crushed raw material being fed into the grinding chamber. Inside, grinding rollers, suspended from a revolving star rack, press against a stationary grinding ring. The material is ground by the compression force between the rollers and the ring.
As grinding occurs, a stream of air is blown upwards through the mill. This air stream carries the finer particles to a classifier located at the top of the unit. The classifier is a critical component; it acts as a precision screen, allowing only particles that meet the desired fineness to pass through to the collection system (e.g., a cyclone and bag filter). Oversized particles are rejected by the classifier and fall back onto the grinding ring for further grinding. This closed-circuit system ensures high efficiency and precise control over the final product’s fineness.
For producers of agricultural gypsum and lime blends, selecting a reliable and efficient mill is a critical business decision. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, offers a range of grinding solutions that are perfectly suited for this application. Among their comprehensive product line, the YGM Series Raymond Mill stands out as a proven and efficient choice.
Zenith’s Raymond Mill is designed with a focus on energy saving and environmental protection. It offers high grinding efficiency and lower energy consumption, leading to high economic profits for the operator. Its robust construction and intelligent design make it a low-maintenance, high-availability asset for any agricultural mineral processing plant.
Below are the technical parameters for several models in the YGM Series, demonstrating their capacity and flexibility to meet different production needs.
| Model | Roller Quantity (pcs) | Max.Feed Size (mm) | Discharging Size (mm) | Capacity (t/h) |
|---|---|---|---|---|
| YGM8314 | 3 | 20 | 1.6-0.045 | 1.2-4.6 |
| YGM9517 | 4 | 25 | 1.6-0.045 | 2.1-8 |
| YGM4121 | 5 | 30 | 1.6-0.045 | 5-11 |
For operations requiring higher capacity or dealing with slightly different material characteristics, Zenith’s MTM Medium-Speed Grinding Mill serves as an excellent alternative or upgrade. It adopts world-leading powder processing technology and is considered an ideal substitute for traditional Raymond Mills, featuring an upgraded structure for higher efficiency and energy-saving production.
The MTM series is particularly well-suited for continuous, high-volume production of agricultural lime and gypsum blends, offering robust performance and reliability.
| Model | Ring Roll Number (pcs) | Max. Feed Size (mm) | Output (t/h) | Main Unit Motor Power (kW) |
|---|---|---|---|---|
| MTM100 | 4 | <25 | 3-8 | 37 |
| MTM130 | 5 | <30 | 6-11 | 75 |
| MTM160 | 6 | <35 | 9-22 | 132 |
The production of high-quality agricultural gypsum and lime blends is a technical process where the grinding mill is the heart of the operation. A Raymond Mill, with its efficient grinding mechanism and precise classification system, provides the perfect solution for creating a fine, uniform, and highly reactive product. Shanghai Zenith Machinery Co., Ltd., with its extensive experience and advanced product lines like the YGM Raymond Mill and the MTM Medium-Speed Grinding Mill, offers reliable and economical equipment tailored to the needs of the modern agricultural industry. By investing in the right grinding technology, producers can ensure their soil amendments deliver maximum agronomic benefits, supporting sustainable and productive agriculture.
