In modern industrial processing, the creation of stable and consistent product slurries represents one of the most critical challenges across multiple sectors including mining, ceramics, chemicals, and construction materials. The quality, uniformity, and stability of these slurries directly impact downstream processes, product quality, and overall operational efficiency. Achieving optimal slurry characteristics requires sophisticated grinding technology that can deliver precise particle size distribution, consistent output, and reliable performance under varying operational conditions.
Stable slurries are characterized by their ability to maintain homogeneous particle distribution over time, resisting sedimentation and separation. This stability is crucial for several reasons. First, inconsistent slurries can lead to clogging in pipelines and processing equipment, causing costly downtime and maintenance. Second, variations in particle size distribution affect chemical reactions in subsequent processing stages, potentially compromising final product quality. Third, unstable slurries often require additional chemical additives to maintain suspension, increasing operational costs and potentially introducing unwanted contaminants.
The foundation of creating stable slurries lies in achieving the correct particle size distribution. Research has demonstrated that optimal slurry stability occurs when there’s a balanced distribution of particle sizes that allows smaller particles to fill the voids between larger ones, creating a dense packing structure. This requires grinding equipment capable of producing precisely controlled particle sizes with minimal variation.
Traditional grinding methods often struggle to produce the consistent particle size distribution necessary for stable slurries. Conventional ball mills, while effective for coarse grinding, frequently produce broad particle size distributions that lead to rapid sedimentation. Modern grinding technology addresses these limitations through sophisticated design features that enable precise control over the grinding process.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has made significant achievements in the field of ultra-fine powder grinding. Our specialized research, development, and production of industrial powder grinding equipment has yielded innovative solutions specifically designed to address the challenges of slurry production.

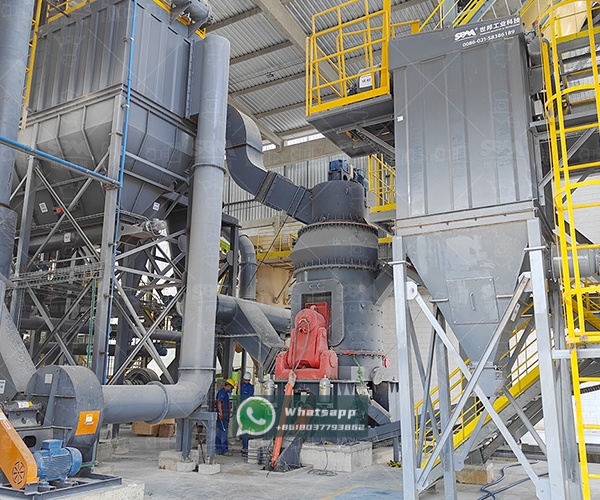

For operations requiring stable and consistent slurry production, we highly recommend our LM Vertical Grinding Mill. This innovative equipment integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact system. The vertical design provides significant advantages for slurry preparation, including superior particle size control, energy efficiency, and operational stability.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM Vertical Grinding Mill’s integrated classification system ensures that particles exceeding the target size are returned for regrinding, resulting in a narrow particle size distribution ideal for slurry stability. The mill’s ability to handle moist materials and integrate drying functions makes it particularly valuable for slurry applications where moisture control is critical.
For applications requiring exceptionally fine particles for specialized slurry formulations, our LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This advanced system integrates grinding, drying, classifying, and transportation while occupying minimal space. It is specifically engineered to produce products with high content of end-fines and features intelligent control for easier maintenance and consistent operation.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in producing ultra-fine powders with precisely controlled particle size distributions, making it ideal for high-value slurry applications in industries such as electronics, advanced ceramics, and specialty chemicals. The mill’s advanced classification system and precise temperature control ensure consistent product quality even when processing heat-sensitive materials.
Our grinding solutions offer several distinct advantages for slurry production operations. The compact vertical design significantly reduces the footprint compared to traditional horizontal mills, making them ideal for facilities with space constraints. The integrated approach minimizes transfer points between processing stages, reducing the potential for contamination and material loss.
Energy efficiency represents another critical advantage. Both the LM and LUM series incorporate advanced grinding mechanics and efficient drive systems that reduce power consumption by 30-50% compared to conventional grinding systems. This not only lowers operational costs but also supports sustainability initiatives.
Operational reliability and maintenance accessibility have been central to our design philosophy. The modular construction and accessible components minimize maintenance downtime, while the robust construction ensures long service life even under demanding operating conditions. Advanced monitoring and control systems provide real-time performance data, enabling proactive maintenance and consistent product quality.
Different industries present unique challenges for slurry production. Our grinding mills can be configured to address these specific requirements. For mineral processing applications, where abrasive materials are common, we offer wear-resistant linings and grinding elements that extend service life. For chemical applications requiring corrosion resistance, special material constructions are available.
The flexibility of our grinding systems allows for customization of grinding media, rotation speeds, and classification parameters to optimize performance for specific materials and target particle size distributions. This adaptability makes our solutions suitable for diverse applications ranging from traditional mining operations to advanced material synthesis.
Creating stable and consistent product slurries requires more than just reducing particle size—it demands precise control over the entire grinding process. The advanced grinding technology developed by Shanghai Zenith Machinery represents a comprehensive solution to these challenges. By integrating multiple processing functions into compact, efficient systems, our equipment enables producers to achieve superior slurry quality with reduced operational costs and enhanced reliability.
The LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill exemplify our commitment to innovation and performance excellence. These systems provide the precise control, operational efficiency, and reliability necessary for modern slurry production across diverse industrial applications. As processing requirements continue to evolve toward finer specifications and tighter quality control, advanced grinding technology will remain essential for maintaining competitive advantage in slurry-dependent industries.
Through continuous research and development, Shanghai Zenith Machinery remains at the forefront of grinding technology, developing solutions that address the evolving challenges of industrial processing while supporting our clients’ goals for quality, efficiency, and sustainability.
