In modern industrial grinding processes, the integration of thermal energy systems with milling equipment has become increasingly critical for achieving optimal efficiency and product quality. The hot air generator, as an essential component in vertical mill systems, plays a pivotal role in material drying, classification, and transportation processes. This technical analysis examines the fundamental principles, operational mechanisms, and system integration aspects of hot air generators within vertical grinding mill configurations.
The primary function of a hot air generator in vertical mill systems is to provide controlled thermal energy for drying raw materials during the grinding process. This is particularly crucial when processing materials with significant moisture content, as excessive moisture can lead to clogging, reduced grinding efficiency, and compromised final product quality. The hot air generator typically operates on the principle of direct heat exchange, where combustion gases or electrically heated air are introduced into the grinding chamber.
The thermal energy transfer occurs through convection, where hot gases directly contact the material particles, evaporating surface and inherent moisture. The temperature regulation must be precisely controlled to prevent thermal degradation of sensitive materials while ensuring sufficient drying capacity. Modern systems incorporate sophisticated control algorithms that monitor inlet and outlet temperatures, moisture content, and airflow rates to maintain optimal operating conditions.
The integration of hot air generators with vertical mills requires careful consideration of several technical parameters. Airflow velocity must be optimized to ensure adequate material suspension and transportation without excessive energy consumption. Temperature gradients throughout the system must be managed to prevent condensation and material deposition in ductwork and classifiers.
The hot air generator typically interfaces with the mill at multiple points: primary air inlet for material drying, secondary air streams for classification control, and tertiary flows for material transportation to collection systems. Each of these air streams requires individual temperature and flow control to maintain system stability and product consistency.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has developed sophisticated vertical mill systems with integrated thermal management capabilities. Our engineering team has made significant achievements in the field of ultra-fine powder grinding, particularly in optimizing the synergy between grinding mechanisms and thermal processing.

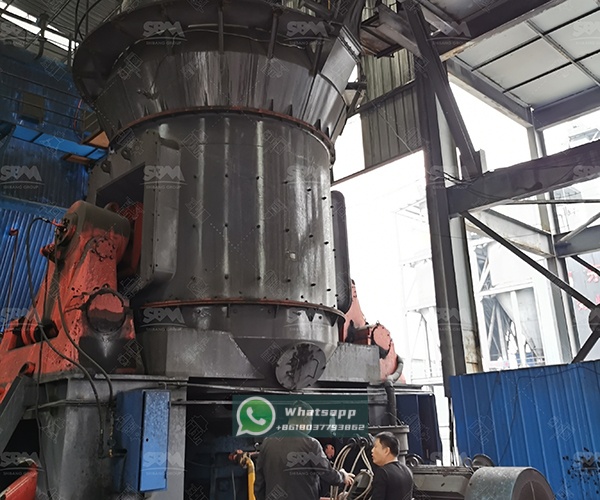

Among our comprehensive product portfolio, the LM Vertical Grinding Mill series represents a pinnacle of integrated grinding and drying technology. This equipment seamlessly combines five critical functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact unit. The integration of advanced hot air generation and distribution systems enables exceptional drying efficiency while maintaining precise temperature control throughout the grinding process.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM series incorporates a sophisticated hot air routing system that optimizes heat transfer efficiency while minimizing thermal losses. The vertical arrangement naturally facilitates counter-current heat exchange, where the hottest air contacts the driest material, maximizing thermal efficiency. This design significantly reduces energy consumption compared to traditional horizontal milling systems with separate drying equipment.

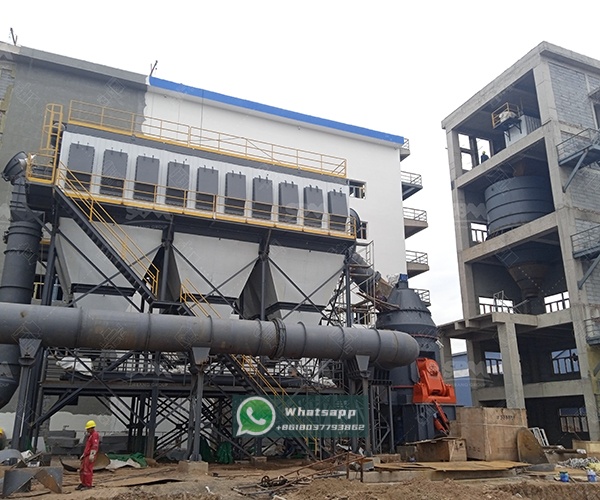

For applications requiring exceptionally fine product specifications, Zenith’s LUM Ultrafine Vertical Mill offers advanced thermal management capabilities specifically designed for ultra-fine powder production. This equipment integrates grinding, drying, classifying, and transportation functions while occupying minimal space, making it ideal for facilities with footprint constraints.
The LUM series features an intelligent control system that precisely regulates hot air temperature and flow rates based on real-time process conditions. This ensures consistent product quality even when processing materials with variable moisture content or chemical composition. The advanced classification system, coupled with optimized hot air distribution, enables production of powders with tight particle size distributions and minimal oversize particles.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Modern hot air generators integrated with vertical mill systems must address increasingly stringent energy efficiency and environmental compliance requirements. Zenith’s engineering approach emphasizes optimization of combustion efficiency, heat recovery, and emission control in all thermal system designs.
The LM and LUM mill series incorporate several energy-saving features, including:
These features collectively contribute to significant reductions in specific energy consumption (kWh per ton of product) while maintaining or improving product quality and production rates.
The reliability of hot air generators in vertical mill systems depends on robust design and proper maintenance protocols. Zenith’s equipment incorporates several features to enhance operational stability:
Regular maintenance of the hot air system includes inspection of burners, heat exchangers, refractory linings, and control systems. Proper maintenance not only ensures operational reliability but also maintains energy efficiency over the equipment’s service life.
The evolution of hot air generation technology for vertical mill systems continues to focus on several key areas:
Shanghai Zenith Machinery remains at the forefront of these developments, continuously refining our vertical mill systems to incorporate the latest advancements in thermal processing technology.
The integration of hot air generators with vertical mill systems represents a critical advancement in industrial grinding technology. The sophisticated thermal management capabilities of equipment like Zenith’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill enable processors to achieve exceptional product quality while optimizing energy consumption and operational costs.
As material specifications become more demanding and energy efficiency requirements more stringent, the role of properly designed and integrated thermal systems will continue to grow in importance. Through continued innovation and refinement, Zenith’s vertical mill solutions with integrated hot air generation capabilities provide industry-leading performance for a wide range of grinding applications.
