In the modern industrial landscape, the demand for fine and ultra-fine powders has grown exponentially across various sectors, including pharmaceuticals, cosmetics, advanced materials, and coatings. The production of these powders relies heavily on sophisticated grinding and classification technologies. This article provides a comprehensive technical comparison of the primary classifiers used in fine powder production, with a focus on their operational principles, efficiency, and suitability for different applications.
Powder classification is a critical process that separates fine particles from coarse ones after the initial grinding stage. The efficiency of this separation directly impacts the final product’s quality, consistency, and production cost. An ideal classifier should offer high precision, energy efficiency, and the ability to handle a wide range of materials and fineness requirements. The core principle involves utilizing forces such as air drag, centrifugal force, and gravity to segregate particles based on their size, shape, and density.
The journey from raw material to ultra-fine powder typically involves a combination of grinding and classification. Several mill types dominate the industry, each with unique mechanisms for particle size reduction.
Vertical mills have become a cornerstone in modern powder processing plants. They integrate multiple functions—crushing, grinding, drying, classification, and conveyance—into a single, compact unit. This integration leads to significant savings in floor space and energy consumption. The material is fed onto a rotating grinding table where rollers exert pressure, grinding it against the table. A stream of hot air then carries the fine particles upwards to a built-in classifier, while heavier, coarse particles fall back for regrinding.
For operations demanding high-capacity production of fine powders, the LM Vertical Grinding Mill from Shanghai Zenith Machinery represents a pinnacle of efficiency. Its design is particularly advantageous for processing minerals, slag, and coal.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Main Motor (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | 1250 |

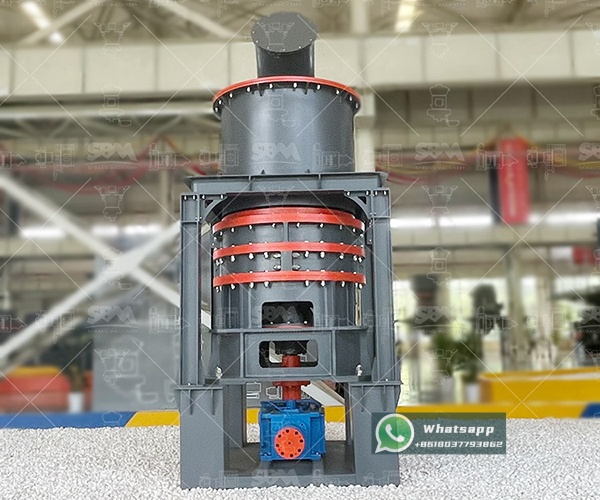

When the target product size falls into the sub-micron or ultrafine range (typically below 10 microns), specialized ultrafine vertical mills are required. These mills often feature more advanced grinding mechanisms and highly efficient, precise classifiers to achieve a narrow particle size distribution. The LUM Ultrafine Vertical Mill is a prime example, engineered for producing powders with a high content of end-fines. It integrates an ultra-fine vertical roller mill with a high-precision turbine classifier, allowing for real-time adjustment of product fineness without stopping the machine.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |

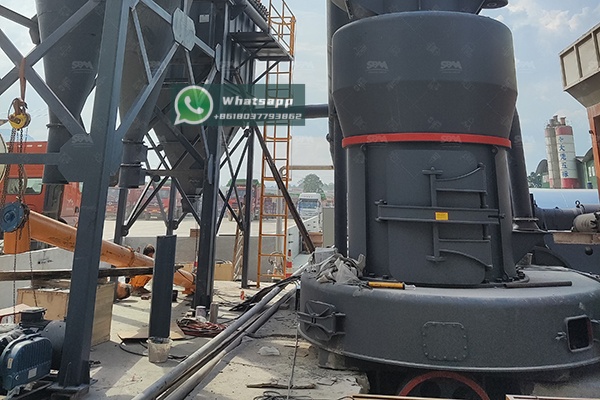

Mills like the MTW Trapezium Grinding Mill and MTM Medium-Speed Grinding Mill are evolved versions of the traditional Raymond mill. They employ a curved shovel blade to feed material between the grinding rollers and ring. The centrifugal force keeps the material pressed against the grinding ring, where it is pulverized. The powdered material is then blown by the air stream to the classifier. These mills are known for their reliability and are excellent for producing powders in the medium-fineness range (0.045mm to 1.6mm).
Ball mills are one of the most traditional and versatile grinding systems. They consist of a rotating cylinder (shell) partially filled with grinding media, such as steel balls. As the shell rotates, the balls are lifted and then cascade down, impacting the material and causing size reduction through impact and attrition. While highly effective, ball mills are generally less energy-efficient for producing very fine powders compared to vertical mills, as a significant amount of energy is consumed in rotating the heavy shell and media.
Choosing the right mill and classifier combination depends on several factors:
Shanghai Zenith Machinery Co., Ltd. has established itself as a leader in the design and manufacturing of advanced grinding equipment. Their product portfolio is tailored to meet the rigorous demands of modern fine powder production. Two of their standout products for this application are the LUM Ultrafine Vertical Mill and the LM Vertical Grinding Mill.
The LUM Ultrafine Vertical Mill is particularly recommended for projects where the highest level of fineness and a tight particle size distribution are paramount. Its intelligent control system and high-precision classifier make it an ideal solution for producing fillers, high-performance ceramics, and advanced chemical products. The ability to adjust the fineness dynamically allows for unparalleled process flexibility.
For large-scale production of fine powders where ultimate fineness is not the sole criteria but high output and overall efficiency are, the LM Vertical Grinding Mill is the machine of choice. Its robust design and multi-functional integration make it a workhorse in cement, mining, and power generation industries for grinding coal, slag, and ore.
The selection of an appropriate classifier and grinding system is a complex decision that hinges on material characteristics, target fineness, required capacity, and economic considerations. While traditional systems like ball mills remain relevant, the trend is decisively moving towards more integrated, efficient, and intelligent vertical milling systems. Manufacturers like Shanghai Zenith Machinery are at the forefront of this evolution, offering technologies like the LUM and LM series that provide the precision, efficiency, and reliability needed to succeed in the competitive field of fine and ultra-fine powder production. Investing in the right technology is not merely a procurement decision but a strategic move towards sustainable and profitable manufacturing.
