In the realm of industrial powder processing, few grinding technologies have demonstrated the longevity and reliability of the Raymond Mill. Since its invention in the early 20th century, this workhorse of the milling world has undergone significant technological evolution, yet its core mechanical principles remain a benchmark for efficiency and simplicity. This article provides a comprehensive technical examination of the Raymond Mill grinding mechanism, exploring its operational principles, key components, and technological advancements that have kept it relevant in modern industrial applications.

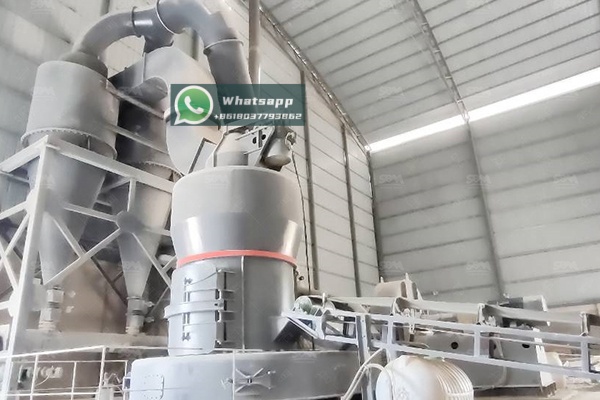

The Raymond Mill operates on the pendulum grinding principle, where multiple grinding rollers suspended from a spider assembly rotate around a central vertical shaft. These rollers swing outward due to centrifugal force and press against the inner surface of a stationary grinding ring. The material to be ground is fed into the mill through a central feeder and falls onto the grinding table, where it is scooped up by the plows and directed into the path of the grinding rollers.
The grinding process involves three distinct mechanical actions: compression, shear, and attrition. As the material passes between the rotating rollers and stationary ring, it undergoes intense compressive forces that fracture larger particles. Simultaneously, the relative motion between the rollers and ring creates shearing action, while the inter-particle friction contributes to attrition grinding. This multi-faceted approach ensures efficient size reduction across a wide range of material hardness and characteristics.
The heart of the Raymond Mill lies in its grinding roller system. Typically configured with 3 to 6 rollers arranged symmetrically around the central shaft, these components bear the primary responsibility for particle size reduction. Modern Raymond Mills feature rollers with replaceable grinding surfaces, often made from high-chromium alloy or other wear-resistant materials to extend service life. The rollers are mounted on pendulum arms that allow them to swing freely, maintaining consistent pressure against the grinding ring regardless of feed rate variations or material characteristics.
The stationary grinding ring forms the counter-surface against which the rollers operate. Manufactured as a single circular casting or segmented components, the grinding ring’s profile and material composition significantly impact grinding efficiency and wear characteristics. Advanced designs incorporate optimized curvature profiles that maximize the grinding zone while minimizing power consumption. The ring’s wear resistance directly influences maintenance intervals and operational costs, making material selection a critical consideration in mill design.
Unlike simple impact mills, Raymond Mills incorporate an integrated air classification system that separates properly ground particles from those requiring further size reduction. The classifier, typically positioned above the grinding chamber, consists of rotating blades or vanes that create a centrifugal classification field. Finer particles pass through this field into the product collection system, while coarser material returns to the grinding zone for further processing. This closed-circuit operation ensures consistent product fineness and prevents over-grinding of already-sized material.
While maintaining its fundamental mechanical principles, the modern Raymond Mill has incorporated numerous technological advancements that enhance its performance and operational efficiency. Digital control systems now allow precise adjustment of classifier speed, grinding pressure, and feed rates, enabling real-time optimization of grinding parameters. Advanced sealing technologies minimize air infiltration and prevent product contamination, while improved bearing designs and lubrication systems extend component life and reduce maintenance requirements.
Modern Raymond Mills also feature enhanced dust collection systems that meet stringent environmental regulations. Positive pressure operation prevents dust leakage, while high-efficiency cyclones and baghouse filters ensure minimal particulate emissions. These environmental considerations, combined with improved energy efficiency, make contemporary Raymond Mills suitable for operations where both product quality and environmental compliance are paramount.
As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has made great achievements in the field of ultra-fine powder grinding. Our Raymond Mills incorporate decades of research and practical experience, resulting in machines that deliver exceptional performance across diverse industrial applications.
Our Raymond Mill series stands out for its energy-saving operation and environmental protection features. The optimized grinding chamber design and advanced classifier system ensure high grinding efficiency with lower energy consumption, translating to significant economic benefits for our customers. The following table details the technical specifications of our flagship Raymond Mill models:
| Model | Roller Quantity (pcs) | Max.Feed Size (mm) | Discharging Size | Capacity (t/h) |
|---|---|---|---|---|
| YGM8314 | 3 | 20 | 1.6-0.045 | 1.2-4.6 |
| YGM9517 | 4 | 25 | 1.6-0.045 | 2.1-8 |
| YGM4121 | 5 | 30 | 1.6-0.045 | 5-11 |
For operations requiring even finer grinding capabilities, we recommend our XZM Ultrafine Grinding Mill, which can achieve an impressive output fineness ranging from 325 to 2500 mesh. This mill is particularly suitable for processing soft to medium-hard materials with moisture content below 6%, making it an ideal solution for advanced material processing applications.

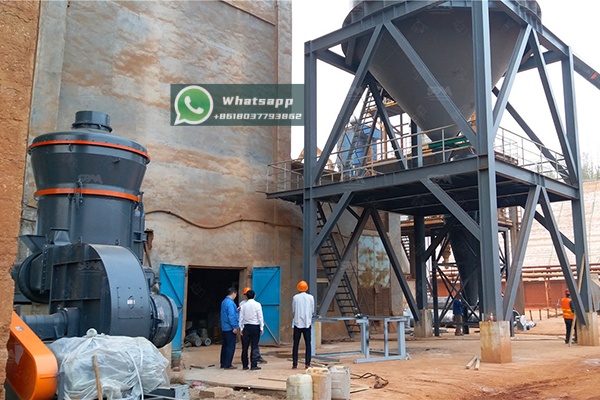

The Raymond Mill’s grinding mechanism makes it particularly suitable for processing non-metallic minerals with Mohs hardness below 7 and humidity below 6%. Common applications include grinding of barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, and insulation materials, among others.
Material characteristics significantly influence grinding performance and mill configuration. Harder materials typically require reduced grinding pressure and lower feed rates to minimize wear, while softer materials can be processed at higher capacities. Moisture content represents another critical parameter, as excessive humidity can lead to material buildup in the grinding chamber and reduced classification efficiency. Proper drying of feed material or integration of hot air systems may be necessary for high-moisture applications.
Maximizing Raymond Mill performance requires careful attention to operational parameters and proactive maintenance practices. Regular inspection of grinding elements for wear, proper adjustment of grinding pressure, and optimization of classifier speed all contribute to consistent product quality and extended equipment life. Modern monitoring systems can track power consumption, bearing temperature, and vibration levels, providing early warning of potential issues before they lead to unscheduled downtime.
Preventive maintenance should focus on the high-wear components, including grinding rollers, grinding rings, and classifier blades. Establishing replacement schedules based on actual operating hours and material abrasiveness helps prevent unexpected failures. Proper lubrication of all moving parts, particularly the central gear assembly and roller bearings, remains essential for reliable long-term operation.
When selecting grinding equipment, understanding the relative advantages of different technologies is crucial. Compared to ball mills, Raymond Mills typically offer higher energy efficiency for intermediate fineness applications (80-400 mesh) due to their more targeted grinding action and integrated classification system. Vertical roller mills may provide advantages for very high capacity applications but often involve higher capital investment and more complex maintenance requirements.
The Raymond Mill’s particular strength lies in its versatility, relatively simple maintenance, and proven reliability across diverse applications. For operations requiring frequent product changes or processing of multiple material types, the Raymond Mill’s quick adjustment capabilities and robust construction often make it the preferred choice.
The ongoing evolution of Raymond Mill technology focuses on several key areas: further improvements in energy efficiency through optimized grinding chamber geometries and advanced classifier designs; enhanced digitalization with IoT connectivity for remote monitoring and predictive maintenance; and development of specialized wear materials for extended component life in abrasive applications. Integration with advanced process control systems using artificial intelligence for real-time optimization represents another promising development direction.
As environmental regulations become increasingly stringent, Raymond Mill manufacturers continue to develop solutions that minimize dust emissions and reduce overall energy consumption. These efforts align with broader industry trends toward sustainable manufacturing practices while maintaining the operational reliability that has made Raymond Mills a staple of industrial powder processing for nearly a century.
The Raymond Mill grinding mechanism represents a timeless engineering solution that continues to evolve while maintaining its fundamental operational principles. Its combination of mechanical simplicity, operational reliability, and processing efficiency ensures its ongoing relevance in modern industrial applications. As demonstrated by Shanghai Zenith’s advanced Raymond Mill series, continuous innovation in materials, design, and control systems further enhances this proven technology’s capabilities, providing industry with efficient, economical solutions for powder processing challenges across diverse sectors.
