Selecting the appropriate grinding mill is one of the most critical decisions in mineral processing and powder production operations. The right mill can significantly impact your production efficiency, product quality, energy consumption, and overall operational costs. This comprehensive guide will walk you through the key technical considerations and help you match the perfect mill to your specific material requirements.
Before selecting a mill, you must thoroughly understand your material’s characteristics. Different materials behave differently under various grinding mechanisms, and choosing the wrong equipment can lead to inefficient operation, excessive wear, or unsatisfactory product quality.
Different grinding principles suit different materials and applications. Understanding these fundamental differences is crucial for making an informed decision.
Ball mills are among the most versatile and widely used grinding equipment across various industries. They operate on the principle of impact and attrition, where the grinding media (balls) cascade and impact the material as the mill rotates.
Best Applications:
Shanghai Zenith Ball Mill Advantages:
Our ball mills feature robust construction, high adaptability to various materials, and precise control over final product fineness. The wet-type ball mills are particularly effective for mineral processing, offering capacities from 0.65-90 t/h depending on the model.
Vertical mills have gained significant popularity due to their compact design and energy efficiency. They integrate multiple functions into a single unit, making them ideal for modern processing plants.
LM Vertical Grinding Mill – The All-in-One Solution
Shanghai Zenith’s LM Vertical Grinding Mill represents the pinnacle of integrated grinding technology. This innovative equipment combines five essential functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact machine.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
Key Benefits:
For applications requiring extremely fine powders, specialized ultrafine grinding equipment is essential. These mills can achieve particle sizes down to the micron and sub-micron range.

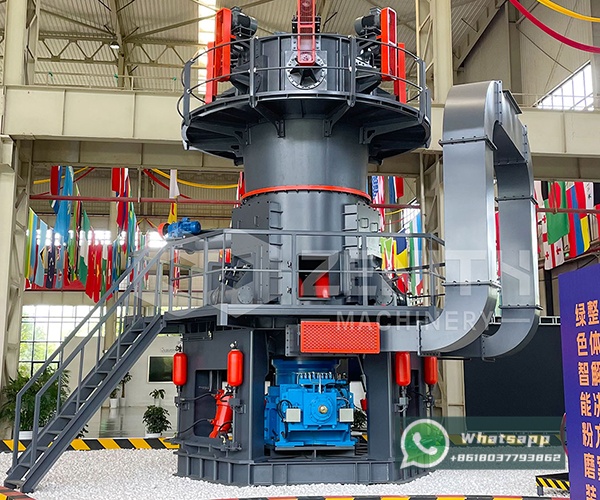

LUM Ultrafine Vertical Mill – Precision in Ultrafine Grinding
Our LUM Ultrafine Vertical Mill represents the latest advancement in ultrafine powder processing technology. Designed for high-precision applications, this mill integrates grinding, drying, classifying, and transportation in a compact, efficient package.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Advanced Features:
Your production capacity needs will significantly influence mill selection. Consider both current requirements and future expansion plans. Shanghai Zenith offers mills with capacities ranging from small-scale laboratory units (under 1 t/h) to large industrial systems exceeding 170 t/h.
The required product fineness is perhaps the most critical factor in mill selection:
Materials with high moisture content require integrated drying capabilities. Our LM Vertical Grinding Mills and LUM Ultrafine Vertical Mills include built-in drying systems that can handle materials with moisture content up to 15% without requiring separate drying equipment.
Modern grinding mills must balance performance with energy consumption. Vertical mills typically offer 30-50% energy savings compared to traditional ball mills for similar applications. The MTW Trapezium Grinding Mill features an optimized drive system that reduces power consumption while maintaining high throughput.
For hard ores and minerals, Ball Mills and LM Vertical Mills provide the durability and capacity needed for continuous operation. The wet-type ball mills are particularly effective for mineral slurry processing, while vertical mills excel in dry grinding applications.
Cement raw meal and clinker grinding benefit from the high efficiency of LM Vertical Mills. Our vertical slag mill series offers specialized solutions for grinding granulated blast furnace slag with capacities up to 110 t/h.
Ultrafine grinding requirements in these industries are perfectly served by our LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill, which can achieve fineness levels up to 2500 mesh with precise particle size control.
Regular maintenance is essential for optimal mill performance. Shanghai Zenith designs all our mills with maintenance accessibility in mind. The MTW Trapezium Grinding Mill features a unique modular design that allows quick replacement of wear parts without disassembling the entire machine.
Consider the expected lifespan of grinding media, liners, and other wear components. Our Raymond Mill and MTM Medium-Speed Grinding Mill utilize high-chrome alloy grinding rolls and rings that offer extended service life, reducing both maintenance frequency and operational costs.
Modern grinding operations benefit from advanced control systems. Our LUM Ultrafine Vertical Mill includes intelligent control features that automatically adjust operating parameters to maintain consistent product quality while optimizing energy consumption.
Modern grinding equipment must meet stringent environmental standards. All Shanghai Zenith mills incorporate dust collection systems and noise reduction features. The MTW Trapezium Grinding Mill’s internal positive pressure design prevents dust leakage, while the pulse dust collector ensures emissions remain well below regulatory limits.
Selecting the right mill requires balancing multiple factors including material properties, capacity requirements, product specifications, and economic considerations. Shanghai Zenith Machinery offers comprehensive technical support to help you make the optimal choice for your specific application.
Our team of experts can provide material testing services, recommend the most suitable equipment, and assist with installation and commissioning. With decades of experience in industrial powder grinding equipment, we have the knowledge and technology to ensure your grinding operation achieves maximum efficiency and productivity.
Remember that the most expensive mill isn’t necessarily the best choice for your application, nor is the cheapest option always the most economical in the long run. Consider total cost of ownership, including energy consumption, maintenance requirements, and operational flexibility when making your final decision.
