In the realm of industrial mineral processing and powder production, achieving precise particle size distribution is paramount. The efficiency and quality of the final product heavily depend on the classification system integrated within the grinding mill. Among the various technological advancements, the multi-head classifier, particularly as implemented in advanced ultrafine grinding mills, represents a significant leap forward. This article delves into the technical intricacies of this system and highlights its critical role in modern powder processing.
Grinding and classification are inseparable processes in the production of fine and ultrafine powders. The primary goal of any grinding operation is to reduce the size of raw materials to a desired fineness. However, without an efficient classification mechanism, the mill would suffer from issues like over-grinding, increased energy consumption, and a broad, uncontrolled particle size distribution. The classifier acts as the ‘gatekeeper’ of the grinding chamber, ensuring that only particles that have reached the target fineness exit the system, while coarser particles are recirculated for further size reduction.
Traditional classifiers, such as single-rotor or static classifiers, often struggle with the precision required for ultrafine applications (typically below 10 microns). Their limitations become apparent in achieving sharp cuts and high yields of the finest fractions. This is where the multi-head classifier system demonstrates its superior capabilities.
A multi-head classifier is an advanced dynamic classification system that features several (typically two or more) classifying rotors arranged in a vertical stack or a specific configuration within the mill’s upper section. This design is a fundamental departure from single-rotor systems and offers several distinct technical advantages:
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment, has made great achievements in the field of ultra-fine powder grinding. The company’s expertise is embodied in its advanced grinding mills that incorporate sophisticated classification technology. Two of Zenith’s flagship products that exemplify the application of high-efficiency classification are the LUM Ultrafine Vertical Mill and the XZM Ultrafine Grinding Mill.

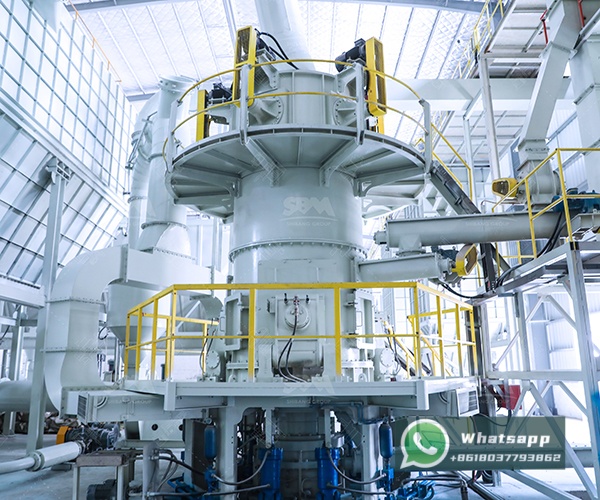

The LUM Ultrafine Vertical Mill is a prime example of integrated engineering, where grinding, drying, and classification are harmonized. Its classifier is designed for producing products with a high content of end-fines. The intelligent control system allows for easy adjustment of the fineness, making it an ideal solution for producing ultrafine powders consistently.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |

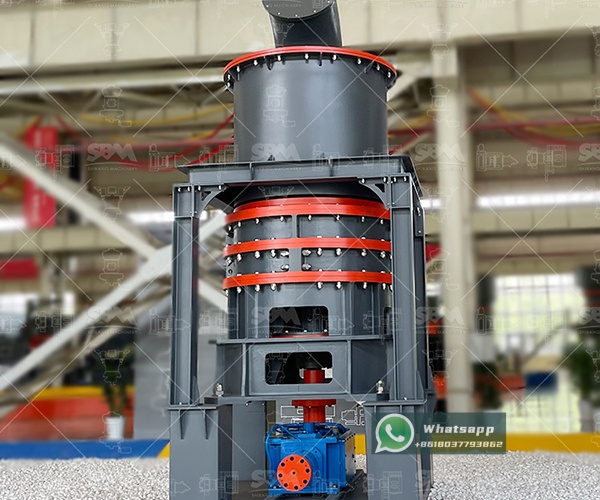

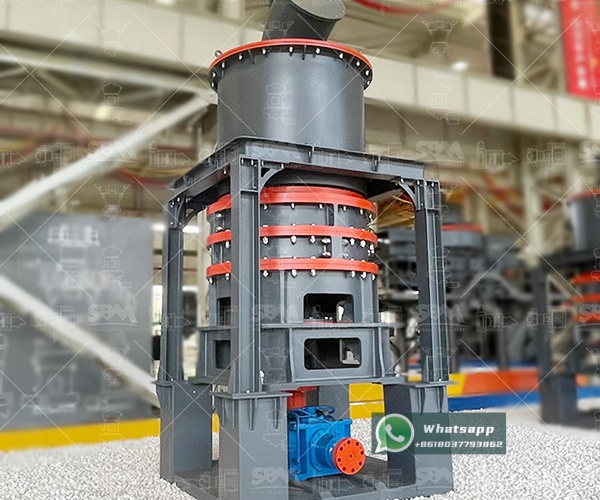

Another remarkable product is the XZM Ultrafine Grinding Mill, widely recognized for its ability to produce superfine powder. It is particularly suitable for grinding soft or medium-hard materials and can achieve an impressive output fineness ranging from 325 to 2500 mesh. The classification system within the XZM mill is key to its performance, ensuring that the desired fineness is met with high efficiency.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) |
|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 |
The practical benefits of mills equipped with multi-head classifiers are substantial. Operators experience greater operational stability, reduced maintenance downtime due to the robust design of the classifier, and significant energy savings. The precise control over product fineness opens up opportunities in more demanding and profitable markets.
Industries that benefit immensely from this technology include:
The multi-head classifier is more than just an accessory to a grinding mill; it is the brain of the modern ultrafine powder production process. Its ability to deliver precision, flexibility, and efficiency makes it an indispensable technology for producers aiming for the highest quality standards. Shanghai Zenith Machinery’s commitment to innovation is clearly demonstrated in its LUM and XZM series mills, which leverage advanced classification to meet the rigorous demands of today’s industrial markets. For any operation looking to optimize its powder production, investing in a mill with a sophisticated multi-head classifier is a strategically sound decision.
