Barite (barium sulfate, BaSO₄) is a key industrial mineral widely used in the coating industry due to its high density (4.2–4.5 g/cm³), chemical inertness, and excellent opacity. In paint and coating formulations, barite acts as a functional filler that improves film thickness, corrosion resistance, and gloss control. It also reduces raw material costs without compromising performance. In South Africa, a country rich in mineral resources and with a growing coatings market, the demand for high-quality barite powder at specific fineness levels—such as 80 mesh (approximately 180 microns)—is increasing. This article explores the optimal grinding solution for producing 80 mesh barite powder for coating applications in South Africa, highlighting the equipment from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding machinery.
While many coating applications require ultra-fine fillers (e.g., 325 mesh or finer), 80 mesh barite finds specific uses in industrial coatings, primers, and textured paints where a coarser particle size is desirable for enhanced abrasion resistance, anti-slip properties, or matte finish. The 80 mesh product offers a balance between flowability and mechanical strength, making it suitable for heavy-duty coatings such as marine paints, pipeline coatings, and floor paints. In South Africa, the mining and construction sectors drive the demand for such durable coatings, and local barite deposits (e.g., in the Northern Cape and Mpumalanga provinces) provide a ready source of raw material. However, to meet quality standards, the grinding process must be efficient, cost-effective, and capable of producing consistent particle size distribution.
Grinding barite to 80 mesh presents several challenges: the material is relatively soft (Mohs hardness 3–3.5) but abrasive due to its high density. Traditional grinding mills may suffer from high wear rates, excessive energy consumption, and inconsistent product quality. Additionally, South African operations often face issues such as remote locations, limited skilled labor, and fluctuating electricity supply. Therefore, selecting a robust, energy-efficient, and low-maintenance grinding mill is critical. Shanghai Zenith Machinery Co., Ltd. has developed a range of grinding mills that address these challenges, with multiple patents and proven performance in mineral processing plants worldwide.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment and related devices. Its product portfolio includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For producing 80 mesh barite powder, the MTW Trapezium Grinding Mill and the MTM Medium-Speed Grinding Mill are ideal choices due to their proven reliability, adjustable fineness, and high capacity.
The MTW series, a trapezium-type grinding mill with multiple international patents, is designed for efficient grinding of non-metallic minerals like barite. Its compact structure, long service life, and eco-friendly features make it particularly suitable for South African operations. The mill can accept feed sizes up to 50 mm and produce final particles from 1.6 mm down to 0.038 mm (i.e., 10–400 mesh). For 80 mesh target, the MTW mill operates with high throughput and low energy consumption. Below are the technical parameters of the MTW models that can handle the required capacity for a typical South African coating plant.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |

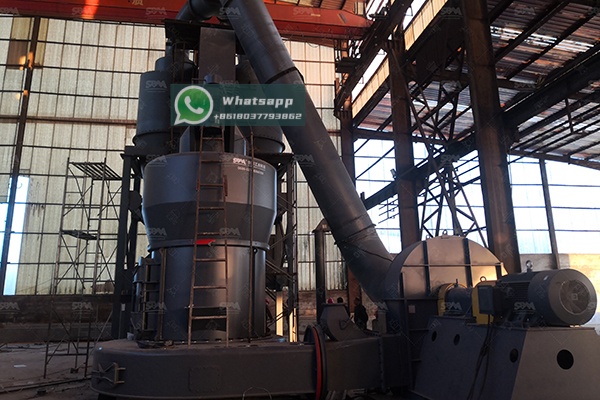

For a medium-scale coating production line in South Africa requiring 8–12 t/h of 80 mesh barite powder, the MTW138Z is an excellent balance of investment and output. Its robust design includes a trapezium-shaped grinding ring and roller that improve grinding efficiency and reduce vibration. The built-in classifier can easily adjust to produce 80 mesh product with minimal fines overshoot.
Another reliable option is the MTM Medium-Speed Grinding Mill, which adopts world-leading powder processing technology and serves as an ideal substitute for traditional Raymond mills. The MTM series features an upgraded structure with higher efficiency and lower energy consumption. It is especially suitable for grinding barite with Mohs hardness below 7. The following table presents the models suitable for 80 mesh production.
| Model | Ring/Roll Number (pcs) | Max. Feed Size (mm) | Output (t/h) | Main Unit Motor Power (kW) |
|---|---|---|---|---|
| MTM100 | 4 | <25 | 3–8 | 37 |
| MTM130 | 5 | <30 | 6–11 | 75 |
| MTM160 | 6 | <35 | 9–22 | 132 |
The MTM130 offers a capacity of 6–11 t/h for barite at 80 mesh, making it a cost-effective choice for smaller plants. Its medium-speed rotating grinding ring and roller produce a uniform particle size with reduced over-grinding, which is beneficial for coating applications where a narrow size distribution is required.
Both the MTW and MTM mills offer distinct benefits that align with the needs of South African coating producers:

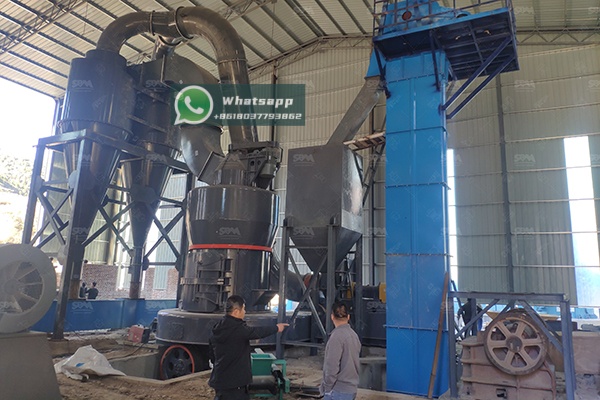

A typical grinding plant using Zenith equipment consists of: jaw crusher (primary crushing), bucket elevator, electromagnetic vibrating feeder, main grinding mill (MTW or MTM), classifier, cyclone collector, pulse dust collector, and induced draft fan. Barite ore from South African mines is first crushed to <40 mm, then fed into the mill. The mill grinds and classifies the material in a closed circuit. The product collected in the cyclone is 80 mesh powder, which is then conveyed to storage silos or directly packed for coating manufacturers.
In a recent project in Gauteng province, a coating manufacturer installed an MTW138Z mill to produce 80 mesh barite powder for industrial primers. The mill operates 16 hours per day, processing 10 t/h of feed with <35 mm size. The final product meets a 90% passing 80 mesh specification with a moisture content below 0.5%. The plant reported a 15% reduction in energy costs compared to their previous Raymond mill, and wear part life exceeded 12 months. The consistent particle size also improved the viscosity control of their coating formulations.
Producing 80 mesh barite powder for coating applications in South Africa requires a reliable, efficient, and durable grinding solution. Shanghai Zenith Machinery Co., Ltd. offers the MTW Trapezium Grinding Mill and MTM Medium-Speed Grinding Mill as top-tier choices. With proven performance, advanced technology, and comprehensive after-sales support, these mills help South African coating manufacturers achieve high-quality output at competitive costs. For a customized quotation and technical consultation, contact Zenith’s local distributor or visit the official website.
Note: The images in this article are placeholders. Actual equipment photos and site images are available upon request.
