basalt grinding mill for casting sand in Pakistan 5-10 tph

Introduction: The Demand for Quality Casting Sand in Pakistan

Pakistan’s foundry and metal casting industry is a vital component of its manufacturing and construction sectors. The production of high-quality casting sand, a fundamental molding material, is paramount for achieving precise and defect-free metal castings. Basalt, a ubiquitous volcanic rock in the region, presents an excellent raw material for producing synthetic casting sand due to its high silica content, angular grain structure, and thermal stability. However, transforming raw basalt into uniformly graded sand with specific particle size distribution (typically between 50-150 mesh for casting applications) requires precise and efficient grinding technology. This article explores the technical considerations for establishing a 5-10 tons per hour (TPH) basalt grinding line for casting sand production in Pakistan and introduces optimal machinery solutions.

Technical Challenges in Basalt Grinding for Foundry Sand

Grinding basalt for foundry applications is not a simple crushing operation. It demands a process that controls particle shape, minimizes ultra-fines (which can affect permeability), and ensures consistent grading. Key challenges include:

• Abrasive Nature: Basalt’s hardness (6-7 on the Mohs scale) leads to high wear on grinding components, demanding robust mill construction and wear-resistant materials.
• Particle Shape Requirement: For optimal mold strength and gas permeability, angular grains are preferred over rounded ones. The grinding mechanism must preserve this angularity.
• Capacity & Efficiency: A 5-10 TPH output requirement necessitates a mill with stable throughput, low energy consumption per ton, and high availability to ensure profitable operation.
• Product Flexibility: Different casting processes may require slightly different sand specifications. The ideal mill should offer adjustable fineness control.

Selecting the Right Grinding Mill Technology

Several grinding mill types can process hard materials like basalt. For the specific output range of 5-10 TPH and the need for controlled particle sizing, two primary technologies stand out: Vertical Roller Mills (VRM) and advanced Trapezium Mills.

Vertical Roller Mills (LM Series) are highly efficient for medium to large-scale production. They integrate grinding, drying, classification, and conveying into a single unit, offering a compact footprint and lower energy consumption. The material is ground between rollers and a rotating table, allowing for excellent control over the final product’s fineness.

Advanced Trapezium Mills (MTW/MTM Series) are evolved versions of the traditional Raymond mill. They are particularly well-suited for producing powders in the medium-fineness range (30-400 mesh), which perfectly encompasses casting sand specifications. Their curved shovel design, efficient classifier, and multiple patents on grinding geometry make them energy-efficient and reliable for abrasive materials.

Recommended Solution: Shanghai Zenith Machinery Grinding Equipment

For a 5-10 TPH basalt grinding project in Pakistan, Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer with great achievements in ultra-fine powder grinding, offers precisely engineered solutions. Zenith specializes in the research, development, and production of industrial powder grinding equipment, providing robust and efficient options for the mining and foundry industries.

Based on the project requirements, we highly recommend the following mill as the core equipment for your casting sand production line:

1. MTW138Z Trapezium Grinding Mill

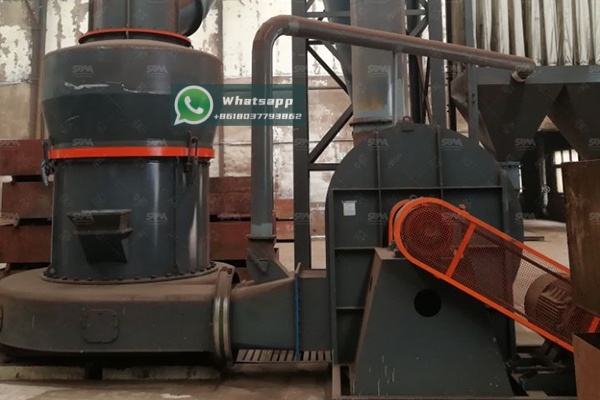

The MTW138Z is an ideal candidate for this application. Its design incorporates several technological advancements that address the challenges of grinding abrasive basalt. The wear-resistant grinding roller and ring extend service life, while its efficient centrifugal classifier ensures precise particle size separation, crucial for producing sand with minimal unwanted fines. Its capacity range of 6-17 TPH comfortably meets and slightly exceeds the 5-10 TPH target, providing a buffer for optimal operation.

2. LM130K Vertical Grinding Mill (Alternative for Higher Fineness Control)

For operations that might later diversify into producing finer mineral powders or require exceptional drying capabilities (if basalt feedstock has moisture), the LM130K Vertical Grinding Mill is a superb alternative. Its integrated classifier offers superior fineness control, and its vertical structure saves significant floor space. The capacity aligns perfectly with the project’s needs.

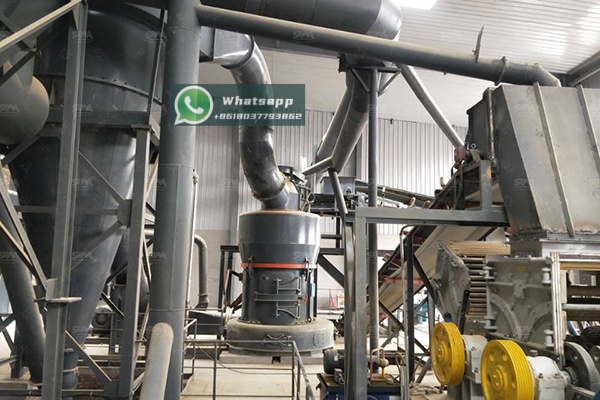

Proposed 5-10 TPH Basalt Grinding Plant Layout

A complete sand production line involves more than just the grinding mill. A typical configuration for a Zenith-supported project in Pakistan would include:

1. Primary Crushing: Jaw crusher to reduce raw basalt (<500mm) to <50mm.
2. Intermediate Storage & Feeding: Vibrating feeder and raw material silo with weigh feeder.
3. Core Grinding: The recommended MTW138Z Grinding Mill.
4. Classification & Collection: The mill’s built-in classifier separates fine product. A pulse bag dust collector (like Zenith’s Pulse Jet Filter) ensures environmentally friendly operation with over 99.9% collection efficiency.
5. Product Handling: Screw conveyors and bucket elevators transport the finished casting sand to storage silos.
6. Electrical Control System: Centralized PLC control for easy and safe operation.

Economic and Operational Benefits for Pakistani Investors

Choosing the right equipment from a reputable manufacturer like Shanghai Zenith translates into tangible benefits:

• High Return on Investment (ROI): Efficient grinding with the MTW or LM series mills lowers energy costs, a major operational expense. The reliable output of 5-10 TPH ensures steady supply to foundries.
• Low Maintenance Costs: Zenith mills are designed for durability with easily replaceable wear parts, minimizing downtime.
• Local Support & Service: Shanghai Zenith has a global network and can provide technical support, installation guidance, and spare parts supply, which is crucial for long-term project success in Pakistan.
• Product Quality Consistency: Producing standardized, high-quality casting sand enhances the competitiveness of local foundries, reducing reliance on imported sand.

Conclusion

Establishing a 5-10 TPH basalt grinding plant for casting sand production is a strategically sound investment in Pakistan’s industrial growth. The key to success lies in selecting grinding technology that balances capacity, product quality, energy efficiency, and long-term reliability. The MTW138Z Trapezium Grinding Mill from Shanghai Zenith Machinery Co., Ltd. is a purpose-built solution that meets all these criteria, offering Pakistani investors a robust and profitable pathway to supplying the foundational material for the nation’s metalworking industry. For projects requiring even more integrated processing or finer control, the LM130K Vertical Grinding Mill presents a powerful and efficient alternative.
