Egypt is witnessing a steady increase in pet ownership, particularly in urban areas such as Cairo, Alexandria, and Giza. More families own cats, and the demand for convenient, hygienic, and affordable litter products is rising. Imported bentonite and silica litter are common, but they are expensive and place a burden on foreign currency. This opens the door for local production of cat litter from Egyptian basalt. Basalt is abundant in the country and can be processed into a natural, highly absorbent granule. However, the first step for any successful basalt cat litter project is reliable grinding. A basalt grinding mill for cat litter in Egypt with a capacity of 1-3 tph is a practical choice for small and medium enterprises because it balances production volume with investment cost. It also gives operators the flexibility to serve a local brand while gradually expanding into export markets in Africa and the Middle East.
Basalt is a fine-grained volcanic rock formed from rapid cooling of lava. It contains silicates, iron, magnesium, and calcium minerals that make it dense and hard. When crushed into controlled particles, basalt creates a porous litter with good surface area. Urine is quickly absorbed into the pores, and ammonia odors are adsorbed by the mineral surface. Unlike some clay litters, basalt granules do not turn into sticky mud. They remain strong, which reduces dust and tracking inside the house. Basalt also is chemically inert and does not release irritating additives. For owners who prefer ecological products, basalt litter can be composted after use. Egypt already quarries basalt for construction aggregates, so a cat-litter project can use the same quarry with a small additional treatment line.
The production of basalt cat litter can be organized as a continuous grinding and classification line. Blocks are first sent to a jaw crusher. The crusher reduces the feed to about 25-30 mm. A bucket elevator then lifts the crushed basalt to a raw-material hopper. From the hopper, a vibrating feeder doses the stone into the grinding mill. Inside the mill, the rollers and grinding rings crush the basalt to the target size. An integrated air classifier selects the fine and medium particles. The desired cat-litter grade is separated by the classifier and sent to a rotary screen. The screen classifies the material into 0.5-1.5 mm granules. Oversize particles return to the mill for another pass, while ultra-fine powder is collected by a pulse dust collector and can be reused. This closed-loop process ensures that the 1-3 tph output is stable and that no valuable basalt is wasted.
Not every grinding mill is suitable for hard basalt. The hardness of Egyptian basalt is usually around 5-7 on the Mohs scale. The mill must be equipped with wear-resistant grinding components and heavy bearings. The grinding force must be high enough to break basalt without excessive vibration. Energy consumption is another key factor: a small plant cannot afford an oversized mill. Dust control is essential in Egypt, especially near residential areas. The selected mill should operate under negative pressure and work with a bag filter. Finally, maintenance should be simple. A 1-3 tph plant often runs with one or two shifts, so any downtime in the mill directly delays packaging. Zenith’s grinding mills are designed with these needs in mind, using a sturdy body and a compact drive system.

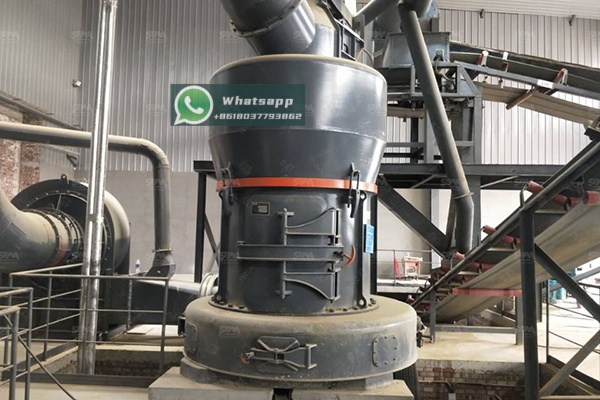

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China. The company has rich experience in grinding hard minerals and has installed many systems in Africa and the Middle East. For this application, Zenith recommends two machines. The first is the MTW110 Trapezium Grinding Mill. It has a compact structure, long service life, and several patented technologies. The mill can accept basalt up to 30 mm and deliver a final product from 1.6 mm down to 0.045 mm. The second is the MTM100 Medium-Speed Grinding Mill. It is considered an important replacement for traditional Raymond mills because it has better energy efficiency and a more stable grinding roller system. The MTM100 has four grinding rollers and is especially suitable for medium-size plants that need continuous operation. Both machines can be matched with a classifier, a dust collector, and a control cabinet to form a complete 1-3 tph basalt grinding system.
| Parameter | MTW110 | MTM100 |
|---|---|---|
| Max. Feed Size | <30 mm | <25 mm |
| Final Size Range | 1.6-0.045 mm | 1.6-0.045 mm |
| Nominal Capacity | 3-9 t/h | 3-8 t/h |
| Recommended Cat-Litter Output | 1-3 t/h | 1-3 t/h |
| Main Motor Power | 55 kW | 37 kW |
| Fan Motor Power | 55 kW | — |
| Grinding Roller Quantity | Trapezium roller set | 4 rollers |
Table: Technical parameters of Zenith MTW110 and MTM100 for basalt cat litter production.
The nominal capacity of MTW110 and MTM100 starts at 3 t/h. This is actually an advantage for a 1-3 tph basalt cat-litter line because it gives a safety margin. In practice, the plant can use a variable-frequency drive for the feeder and a variable-speed classifier. By reducing the feed rate and adjusting the separator, the line can produce exactly 1, 2, or 3 tons of finished cat litter per hour. The oversize and fine fractions are recycled or collected, so the mill does not need to stop frequently. This approach prevents over-grinding and keeps the particle shape uniform, which is important for cat litter acceptance.
Zenith can supply more than a mill. For an Egyptian project, the company can configure a complete package that includes a jaw crusher, bucket elevator, raw-material hopper, electromagnetic feeder, MTW110 or MTM100 mill, air classifier, cyclone collector, pulse-jet dust collector, induced-draft fan, and central control panel. This package is pre-engineered to fit a small floor area. Because all parts are manufactured under the same quality standard, the client avoids compatibility problems. Installation supervision, commissioning, and operator training can be provided. For spare parts, Zenith has a supply chain that supports quick delivery to Egypt. A 1-3 tph basalt grinding plant built around Zenith equipment can run for many years with stable product quality.
The Egyptian market has a clear and increasing need for natural, low-cost cat litter. Basalt is an excellent raw material, and basalt cat litter can be produced sustainably on a 1-3 tph line. The grinding mill is the heart of the process, because it controls particle size, production efficiency, and operating cost. Shanghai Zenith Machinery Co., Ltd. has accumulated strong expertise in ore grinding equipment and has achieved great results in the field of ultra-fine powder grinding. By choosing the MTW110 Trapezium Grinding Mill or the MTM100 Medium-Speed Grinding Mill, Egyptian producers can obtain a reliable, energy-saving solution that converts local basalt into a valuable product for pet owners.
