Basalt has become one of the most important raw materials for industrial applications and tile production due to its high strength, durability, and chemical stability. In Tanzania, where construction materials are in high demand, basalt-based tiles are increasingly used for both decorative and functional purposes. To meet the specific particle size requirements—around 80 mesh—for producing such high-quality tiles, efficient and reliable basalt grinding mills are indispensable.
As a leading machinery supplier, Shanghai Zenith Machinery Co., Ltd. stands out as one of the most outstanding manufacturers of ore and industrial powder grinding equipment in China. With decades of engineering experience, advanced technology, and dedication to product development, the company offers a comprehensive range of mills suitable for basalt grinding for tile production in Tanzania.
Basalt, primarily composed of plagioclase, pyroxene, and olivine minerals, is an igneous rock known for its density and hardness. These characteristics make it ideal for producing wear-resistant and visually appealing tiles. However, the success of basalt tile production depends critically on precise grinding to achieve the optimal fineness—approximately 80 mesh—before mixing, molding, and sintering.
At 80 mesh fineness, basalt powder retains adequate binding strength while achieving the desired texture and smoothness required for ceramic and building tile surfaces. The appropriate grinding solution must ensure not only the right particle size but also high energy efficiency, stability, and low operational cost, especially in large-scale production environments like those emerging in Tanzania’s industrial zones.
Grinding basalt for tile applications requires equipment capable of handling materials with Mohs hardness around 6 and a typical feed size of up to 40-50 mm. Furthermore, to consistently produce 80 mesh (roughly 180 micrometers) powder, the grinding system must offer precise classification and efficient dust collection.
An optimal basalt grinding process includes the following stages:
Shanghai Zenith Machinery offers a broad series of grinding equipment, but for basalt grinding to 80 mesh for tile production, two particular models stand out for their efficiency, reliability, and cost performance: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

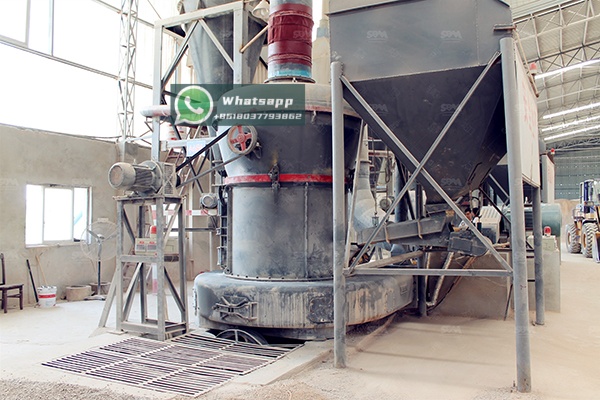

The MTW Trapezium Grinding Mill is engineered with advanced European technology and is ideal for basalt grinding due to its optimized internal air flow, adjustable classifier, and durable wear parts. It is suitable for producing powders in the range of 45 to 380 microns, perfectly aligned with 80 mesh basalt powder requirements. Its trapezium-shaped roller and unique curved blade design enhance grinding efficiency significantly, ensuring higher productivity with lower energy consumption.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
For basalt tile producers in Tanzania, MTW138Z or MTW175G would be the recommended configurations. Their balanced capability handles medium to large production demands, and their robust design ensures continuous operation, even under local industrial conditions with variable raw material feed characteristics.
For operations seeking a more compact and integrated solution, the LM Vertical Grinding Mill from Shanghai Zenith Machinery is an excellent choice. It integrates crushing, grinding, drying, and material transportation within a single system, reducing both the footprint and energy consumption. Its vertical structure is ideal for large-scale basalt processing lines, making it a suitable option for Tanzanian tile manufacturers who want to upgrade their production capacity.
What makes this model particularly appealing is its ability to handle feed sizes up to 50 mm and produce uniform output in the fineness range suitable for tile raw materials. Additionally, with in-built dust collection and automatic control systems, it facilitates clean and intelligent manufacturing.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
The LM190K model is particularly recommended for medium to large tile manufacturing plants. Its high throughput ensures steady basalt powder supply, while its vertical system design contributes to a clean and environmentally friendly operation line.

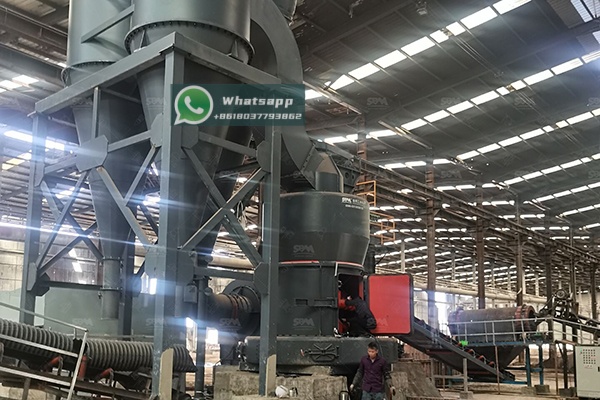

Over recent years, Tanzania’s construction and infrastructure industries have expanded rapidly, increasing the demand for reliable building materials, including basalt tiles. Many local and overseas investors are keen to set up manufacturing plants that produce high-quality floor and wall tiles. In this scenario, the implementation of advanced basalt grinding systems like the MTW and LM series ensures not only product quality but also long-term operational efficiency.
For instance, a medium-scale tile manufacturing line in Dar es Salaam with a target capacity of 20 tons per hour could efficiently deploy one set of MTW175G as the primary grinding system. It can consistently produce the required 80 mesh basalt powder for tile mass preparation, while limiting electricity consumption to optimize operating cost per ton. Alternatively, using one LM190K vertical mill can further integrate multi-function processing steps, providing additional process stability and cleaner output.
The production of basalt tiles at the 80 mesh preparation stage demands advanced, stable, and efficient grinding technology. Shanghai Zenith Machinery Co., Ltd., with its MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, provides the most comprehensive and adaptable solutions to the Tanzanian tile manufacturing industry. Their flexibility, durability, and efficiency can significantly enhance the quality of basalt powder while lowering production costs and improving environmental compliance.
As Tanzania continues to strengthen its industrialization efforts, adopting world-class grinding solutions from Zenith will help local producers remain competitive in both domestic and regional markets.
For more information about machine specifications, installation services, or customized project consultation, please contact Shanghai Zenith Machinery Co., Ltd.
