Ethiopia’s rapidly expanding industrial sector has created a growing demand for high-quality casting sand used in foundries and metal casting operations. One critical raw material in this process is petroleum coke, a carbon-rich byproduct of oil refining, which when ground to an ultra-fine powder (typically 800 mesh or finer) serves as an essential additive to improve the surface finish, reduce gas porosity, and enhance the mechanical properties of castings. The grinding of petroleum coke to such fine specifications requires specialized milling equipment capable of high efficiency, precise particle size control, and consistent output. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers a comprehensive range of mills that are ideally suited for this demanding application. This article explores the technical requirements for petroleum coke grinding in the Ethiopian foundry industry and presents two outstanding solutions from Zenith’s product line.
In foundry operations, casting sand is mixed with binders and additives to create molds and cores. Petroleum coke, after being ground to a fine powder (often 800 mesh, which is approximately 15 microns), acts as a carbonaceous additive that helps control the expansion of sand during high-temperature metal pouring, reduces veining defects, and improves the release of the casting from the mold. The finer the particle size, the more uniformly it disperses within the sand mixture, leading to better performance. Ethiopian foundries, which are increasingly adopting modern casting techniques, require reliable grinding systems that can produce consistent 800-mesh petroleum coke powder with minimal energy consumption and maximum uptime.
Petroleum coke is a hard, brittle material with a relatively low moisture content, but its abrasiveness and tendency to generate fines during grinding pose challenges. Achieving 800 mesh (D97 ≈ 15 μm) requires ultra-fine grinding technology that can handle high throughput while maintaining narrow particle size distribution. Traditional ball mills or Raymond mills often struggle to reach such fine levels economically. This is where advanced mills like the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill from Shanghai Zenith come into play. These mills are specifically designed for superfine powder production and are already trusted in numerous applications worldwide, including carbon black, graphite, and petroleum coke processing.
Based on extensive testing and field applications, Shanghai Zenith recommends two flagship products for the Ethiopian casting sand market. The first is the XZM Ultrafine Grinding Mill, a classic choice for materials requiring a fineness range of 325-2500 mesh. The second is the LUM Ultrafine Vertical Mill, an integrated system that combines grinding, classification, and drying in one compact unit. Both machines can reliably produce 800-mesh petroleum coke powder with excellent efficiency.

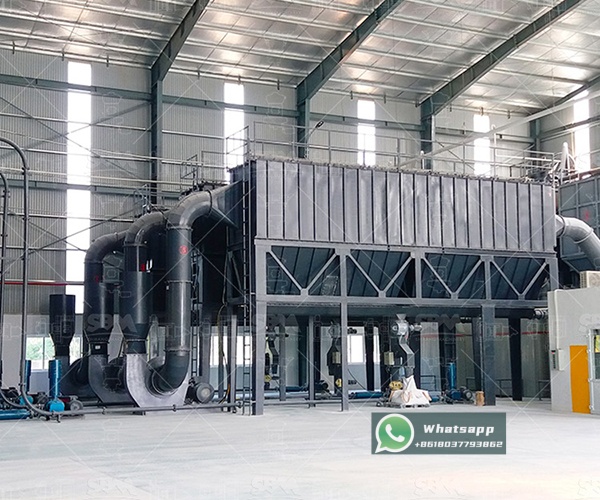

The XZM Ultrafine Grinding Mill is a high-capacity, low-energy mill that uses multiple grinding rollers and a high-precision classifier to achieve ultra-fine separations. It is particularly suitable for soft to medium-hard materials (Mohs hardness <6) with moisture below 6%, which perfectly matches petroleum coke characteristics. The mill can produce 800-mesh powder at capacities ranging from 500 kg/h to 25,000 kg/h depending on the model. The following table lists the technical parameters of two popular XZM models that are ideal for Ethiopian foundries.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
For a typical Ethiopian medium-scale foundry producing 2-5 tons of 800-mesh petroleum coke per day, the XZM221 mill is an excellent entry-level choice. Its compact footprint and moderate power consumption make it easy to install and operate. The mill’s classifier ensures that more than 95% of the product passes through 800 mesh, meeting the foundry’s strict quality standards.

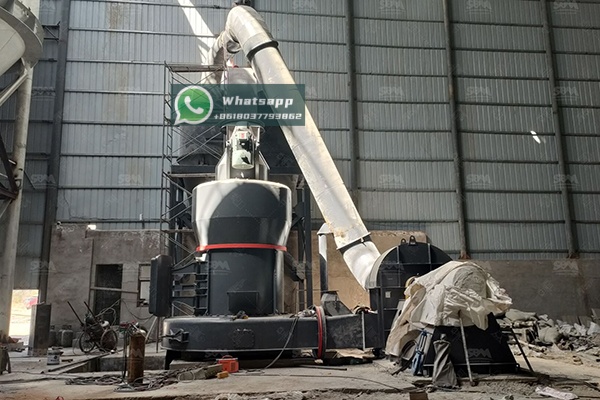

The LUM Ultrafine Vertical Mill represents the latest innovation from Shanghai Zenith. It integrates grinding, classification, drying, and material conveying into one system, reducing the need for auxiliary equipment and minimizing the plant footprint. The vertical design uses a grinding roller that presses against a rotating grinding table, breaking down petroleum coke particles through a combination of compression and shear. An integrated dynamic classifier returns oversized particles for further grinding, ensuring a precise 800-mesh cut. The LUM series is particularly advantageous for Ethiopian operations where space is limited and energy efficiency is critical. Below are the parameters for models suitable for 800-mesh petroleum coke.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) | Remarks |
|---|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 | Ideal for 800 mesh (15 μm) |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 | Higher throughput option |
| LUM1836 | 355-400 | 2.3-15 | 5-30 | For large-scale plants |
The LUM1525, with a main motor power of 220-250 kW, can produce up to 11.5 tons per hour of 800-mesh petroleum coke, making it suitable for medium to large Ethiopian foundry operations. Its intelligent control system allows remote monitoring and automatic adjustment of the classifier speed to maintain consistent product fineness, even when the feed characteristics vary.
Shanghai Zenith Machinery Co., Ltd. has decades of experience in designing and manufacturing ore grinding equipment, with a strong focus on ultra-fine powder technology. Our mills are used in over 100 countries, including many African nations, and we have a dedicated service team to support Ethiopian customers. Key advantages for petroleum coke grinding include:
Ethiopia’s foundry industry is poised for growth, and the ability to produce high-quality casting sand with 800-mesh petroleum coke is a competitive advantage. Shanghai Zenith Machinery’s XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill are the perfect solutions for this application, offering exceptional performance, reliability, and economy. By choosing Zenith, Ethiopian casting sand producers can ensure a steady supply of ultra-fine petroleum coke powder that meets the most stringent foundry standards. Contact our team today for a customized mill recommendation and a detailed feasibility study for your specific project.
