Bentonite, a versatile clay mineral, plays a critical role in the production of high-quality ceramic tiles. In Afghanistan, where the construction and tile industry is rapidly growing to meet domestic demand and export opportunities, the need for efficient and reliable grinding equipment has never been greater. Bentonite acts as a plasticizer, binder, and suspending agent in tile bodies, glazes, and engobes. To achieve optimal performance, bentonite must be ground to a specific fineness—typically 325 mesh (45 microns) or finer. This ensures uniform dispersion, enhanced rheological properties, and superior tile surface quality.
Afghanistan’s abundant bentonite reserves, particularly in provinces such as Herat and Bamyan, offer a promising raw material source. However, local processors often face challenges with outdated equipment, inconsistent particle size, and high energy consumption. To address these issues, advanced grinding mills from Shanghai Zenith Machinery Co., Ltd. provide a cost-effective and environmentally friendly solution. This article explores the technical requirements for bentonite grinding in tile production and recommends two flagship mills that deliver consistent 325-mesh products with high throughput and low operating costs.
In ceramic tile manufacturing, the fineness of bentonite directly influences several key properties:
Traditional ball mills or Raymond mills often struggle to produce consistent 325-mesh bentonite with acceptable energy efficiency. As a result, many Afghan manufacturers turn to modern vertical roller mills or trapezium mills, which offer advanced classification systems and lower specific power consumption.
Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of ore grinding equipment in China, with decades of experience in ultra-fine powder processing. Their product line includes MTW Trapezium Grinding Mill, LM Vertical Grinding Mill, and several other mills suitable for bentonite. For tile production requiring 325 mesh, the most efficient choices are the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill (fine-powder series). Both are designed for high-capacity operation, easy maintenance, and low environmental impact.

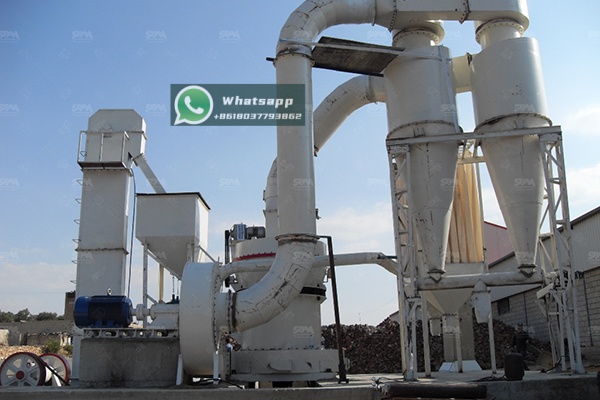

The MTW series is an advanced European-type mill with multiple patents. Its trapezoidal grinding roller and ring design increase grinding efficiency by 30% compared to traditional Raymond mills. The built-in classifier ensures that 98% of the final product passes 325 mesh. Key advantages for bentonite processing in Afghanistan include:
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
For a typical Afghan tile factory requiring 5-8 tons per hour of 325-mesh bentonite, the MTW110 or MTW138Z would be ideal. They offer excellent particle size distribution (D97 ≤ 45 μm) and low operating costs.

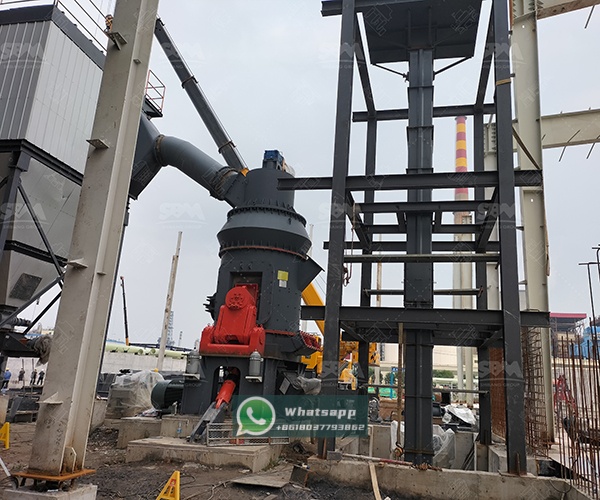

The LM Vertical Mill integrates crushing, grinding, drying, and classifying into a single unit. Its vertical roller design features a dynamic separator that precisely controls fineness. The LM130X-GX and LM220X-GX models are specifically designed for fine powders from 325 to 600 mesh, making them perfect for bentonite used in tile glazes and body compositions.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (D97) | Main Motor (kW) |
|---|---|---|---|---|
| LM130X-GX | 1300 | 4-12 | 325-600 mesh | 220 |
| LM220X-GX | 2200 | 15-30 | 325-600 mesh | 560 |
For larger operations (above 12 t/h), the LM220X-GX is recommended. Its high capacity and low specific energy consumption (typically 15–25 kWh/t) make it a cost-competitive solution for Afghan bentonite processors.
In addition to the above, Shanghai Zenith also offers the XZM Ultrafine Grinding Mill (for superfine powders up to 2500 mesh) and the MTM Medium-Speed Grinding Mill (a Raymond mill upgrade). However, for tile production at 325 mesh, the trapezium and vertical mills provide the best balance of capital cost, throughput, and particle uniformity.
For very small-scale operations (below 3 t/h), the YGM Raymond Mill (e.g., YGM9517) can be considered, but it lacks the automatic classification precision of the MTW or LM series. The Ball Mill is also an option, though its high energy consumption and larger footprint make it less attractive for modern plants in Afghanistan where electricity costs are a concern.
Afghanistan’s tile industry is poised for expansion, driven by reconstruction and infrastructure projects. With reliable grinding equipment from Shanghai Zenith, local manufacturers can produce consistent 325-mesh bentonite powder that meets international standards. Key benefits include:
Moreover, the Afghan government has been encouraging local processing of mineral resources to reduce import dependency. Investing in a modern grinding mill not only improves product quality but also creates jobs and supports economic growth.
Bentonite grinding to 325 mesh is a critical step in the production of ceramic tiles in Afghanistan. By leveraging Shanghai Zenith’s advanced grinding technology—either the MTW Trapezium Mill or the LM Vertical Fine-Powder Mill—tile manufacturers can achieve consistent fineness, high throughput, and low operating costs. These mills are engineered to handle the unique challenges of Afghan bentonite (such as variable moisture and hardness) while delivering a premium product for domestic and export markets.
For more information or to request a quotation, please contact Shanghai Zenith Machinery Co., Ltd. Their experienced engineers will recommend the optimal mill configuration for your specific project requirements. Let us help you turn Afghanistan’s natural bentonite resources into a competitive advantage in the tile industry.
