Indonesia remains one of Southeast Asia’s most active upstream oil and gas markets. From mature waterflood fields in Sumatra to deepwater developments in Makassar Strait and Natuna Sea, operators face challenging drilling conditions. Drilling mud must control formation pressure, stabilize wellbore, transport cuttings, cool and lubricate bit, and minimize formation damage. Ground calcium carbonate, often called GCC, is a critical additive because it is acid-soluble, moderately dense, and chemically compatible with most water-based and oil-based mud systems. When ground to 150 mesh, calcium carbonate provides an effective bridging and weighting function for many reservoir sections. For Indonesian mud engineers and powder producers, the key question is how to produce 150 mesh calcium carbonate efficiently, consistently, and at industrial scale. This article reviews the application, specification, and recommended grinding technology from Shanghai Zenith Machinery Co., Ltd.
A 150 mesh screen opening is approximately 100 microns. In drilling fluid terminology, 150 mesh calcium carbonate is a coarse-to-medium bridging agent rather than an ultra-fine filler. It is often blended with finer calcium carbonate grades such as 325 mesh, 600 mesh, or 1250 mesh to create a multimodal particle size distribution. The coarse 150 mesh particles bridge larger pore throats and microfractures, while finer particles seal the remaining spaces. This combination reduces fluid loss, limits invasion into formation, and forms a thin, removable filter cake.
Because calcium carbonate dissolves in hydrochloric acid, it is preferred for drill-in fluids, completion fluids, and reservoir drilling where conventional barite filter cake may be difficult to remove. In Indonesia, this is especially valuable in carbonate reservoirs, sandstone reservoirs with acid-soluble cementing materials, and depleted zones where formation damage must be minimized. A well-designed 150 mesh GCC product can improve return permeability after completion.
However, particle size quality is critical. Oversized particles can settle in the mud pit, block shaker screens, or cause excessive wear. Too many fines can increase viscosity and reduce bridging efficiency. Therefore, a reliable grinding mill must deliver a sharp cut point, adjustable fineness, and stable capacity. Moisture, iron contamination, and inconsistent feed size also affect final mud performance.
Indonesia has abundant limestone, marble, and calcite resources. High-purity deposits are found in Java, Sumatra, Sulawesi, and other regions. Many deposits are suitable for drilling-grade calcium carbonate after crushing, grinding, and classification. However, the tropical climate brings high humidity and seasonal rainfall. Raw material moisture can cause clogging in mills, reduce classification efficiency, and create caking in silos. A modern grinding line should include covered storage, drying capability when needed, and efficient dust collection.
Power supply, spare parts logistics, and local service support are also important. Indonesian producers need equipment that is robust, easy to maintain, and supported by an experienced manufacturer. Shanghai Zenith Machinery Co., Ltd. has extensive experience in industrial powder grinding and can configure complete calcium carbonate grinding plants for 150 mesh drilling mud applications.

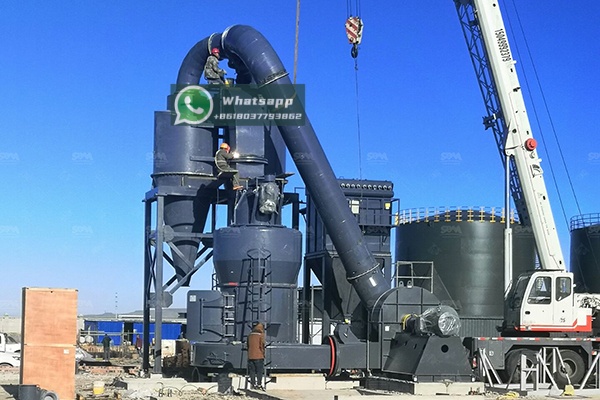

For 150 mesh calcium carbonate production, the MTW Trapezium Grinding Mill is an excellent primary choice. It is a patented mill known for compact structure, long service life, and eco-friendly design. The MTW mill can process materials with maximum input size up to 50 mm and produce final product from 1.6 mm down to 0.045 mm. This wide range allows operators to adjust the classifier and produce 150 mesh calcium carbonate with a controlled particle size distribution.
The MTW mill is suitable for limestone, calcite, marble, chalk, dolomite, and other calcium carbonate materials. It combines grinding, classification, and conveying in a closed loop, reducing dust and improving working conditions. The mill uses high-efficiency centrifugal fans, advanced classifiers, and wear-resistant grinding parts. For Indonesian projects, the MTW138Z, MTW175G, and MTW215G are common choices depending on required capacity.
Key advantages for drilling mud GCC production include stable output at 150 mesh with low oversize, capacity from 3 t/h to 45 t/h depending on model, adjustable fineness for blending different mesh grades, low noise and dust control for environmental compliance, and compact layout, which is helpful for inland plants with limited space.
The table below presents technical parameters of the MTW Trapezium Grinding Mill.
| Model | Max. Feed Size (mm) | Final size (mm) | Capacity (t/h) | Main motor (kW) | Fan motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
For a typical Indonesian drilling mud calcium carbonate line, MTW175G is a strong balance between capacity and investment. If the project requires more than 25 t/h, MTW215G can be considered. Both models can be equipped with pulse dust collectors, automatic control systems, and packing machines.
For small to medium capacity plants, the MTM Medium-Speed Grinding Mill is another effective option. It adopts world-leading powder processing technology and is an ideal substitute for traditional Raymond mills. The MTM mill features an upgraded structure, higher efficiency, and energy-saving production. It can produce a final product in the range of 1.6-0.045 mm, which covers 150 mesh calcium carbonate.
MTM mills are popular in limestone and calcite processing plants because of their reliable performance and relatively simple maintenance. The ring-roll grinding mechanism and integrated classifier make the MTM suitable for consistent production of drilling-grade GCC. The table below shows key parameters.
| Name | Ring roll number (pcs) | Max. feed size (mm) | Output (t/h) | Main unit motor power (kW) |
|---|---|---|---|---|
| MTM100 | 4 | <25 | 3-8 | 37 |
| MTM130 | 5 | <30 | 6-11 | 75 |
| MTM160 | 6 | <35 | 9-22 | 132 |
If a producer needs a compact plant with 6-11 t/h capacity, MTM130 is often a practical choice. For higher output, MTM160 provides more capacity while maintaining the advantages of the medium-speed mill design.

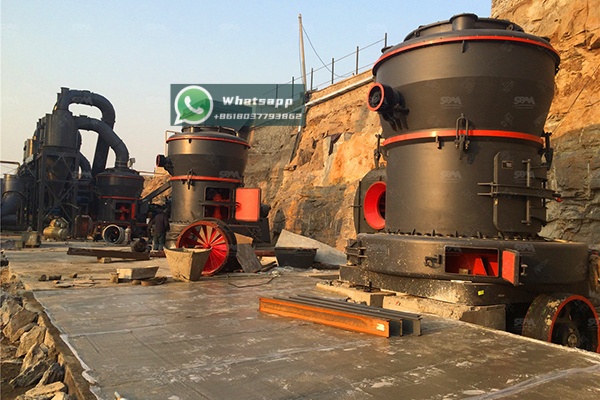

A complete calcium carbonate grinding plant for drilling mud includes several stages. Raw limestone or calcite is stored in a covered stockpile and fed to a jaw crusher or hammer crusher. The crushed material is reduced to less than 30-50 mm and then conveyed to a hopper. A vibrating feeder sends material evenly into the MTW or MTM mill. Inside the mill, grinding rollers and ring crush the material, while an air stream carries fine powder to the classifier. The classifier rejects oversized particles and returns them for further grinding. Finished 150 mesh powder is collected by cyclone and pulse dust collector, then transported to a silo or packed into 25 kg bags, jumbo bags, or bulk tankers.
For drilling mud applications, additional quality control equipment is recommended. A magnetic separator removes iron contamination from wear parts. A moisture control system prevents caking. A laser particle size analyzer verifies the PSD. The plant should also include automatic weighing and labeling for export markets. Because Indonesian customers often serve both domestic and regional oil and gas markets, flexibility in packaging and specification is valuable.
Drilling-grade calcium carbonate is not simply ground limestone. Mud engineers typically require consistent chemical purity, low moisture, controlled particle size, and acid solubility. A 150 mesh product should have a nominal top size of approximately 100 microns, but the exact PSD depends on the reservoir pore throat distribution. Common specifications include CaCO3 content above 95%, acid-soluble content above 95%, moisture below 0.5%, and specific gravity around 2.7. Heavy metals and oil content must be controlled for environmental and operational reasons.
Producers should test each batch using a 150 mesh sieve and laser diffraction. They should also verify the amount of oversize and fines. In Indonesia, mud contractors and oil companies may request API or ISO-related documentation, material safety data sheets, and batch certificates. A modern grinding circuit with an adjustable classifier helps meet these requirements consistently.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill.
For 150 mesh calcium carbonate for drilling mud in Indonesia, Zenith recommends MTW Trapezium Grinding Mill as the primary solution and MTM Medium-Speed Grinding Mill as the alternative for smaller capacity. Both products can be integrated with crushers, feeders, classifiers, dust collectors, and packing systems. Zenith provides process design, equipment manufacturing, installation guidance, commissioning, and spare parts support. With global project experience and a focus on energy-efficient grinding, Zenith can help Indonesian producers build reliable calcium carbonate plants for the drilling fluid market.
Calcium carbonate is an important acid-soluble additive in drilling mud. The 150 mesh grade is widely used as a bridging and weighting component in Indonesian drilling and completion operations. To produce this grade efficiently, operators need a grinding mill with stable capacity, adjustable fineness, low dust, and reliable wear parts. The MTW Trapezium Grinding Mill and MTM Medium-Speed Grinding Mill from Shanghai Zenith Machinery are well suited to this application. By combining the right mill, classifier, dust collection, and quality control, Indonesian calcium carbonate producers can serve local and regional oil and gas markets with high-quality 150 mesh drilling mud powder.
