In the oil and gas industry, drilling mud plays a critical role in maintaining wellbore stability, cooling drill bits, and transporting cuttings. Calcium carbonate (CaCO₃) is widely used as a weighting agent and bridging material in drilling fluids, especially in water-based and oil-based mud systems. For operations in Saudi Arabia—home to some of the world’s largest oil fields—the demand for high-quality, finely ground calcium carbonate with a consistent particle size of 200 mesh (75 μm) is paramount. This article explores the technical requirements, processing challenges, and optimal grinding solutions for producing 200-mesh calcium carbonate powder tailored for Saudi Arabia’s drilling mud applications. We highlight the capabilities of Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, and recommend two proven milling systems that deliver exceptional performance in this demanding environment.
Drilling mud, or drilling fluid, is a complex mixture of base fluids, additives, and solid particles. Calcium carbonate is valued for its low hardness (Mohs ~3), chemical inertness, and solubility in acids—properties that allow it to be used as a lost circulation material (LCM) and a weighting agent without damaging formation permeability. For many drilling operations in Saudi Arabia, particularly in the Ghawar and Safaniya fields, a particle size distribution centered around 200 mesh is required to effectively seal fractures while remaining pumpable. Achieving this specific fineness demands precise grinding equipment that can handle high throughput, maintain consistent product quality, and operate reliably under extreme conditions such as high ambient temperatures and abrasive feed materials.
Grinding calcium carbonate to 200 mesh (74 μm) is a relatively coarse target compared to ultra-fine applications (e.g., 325–2500 mesh). However, several factors make this process challenging in Saudi Arabia:
Shanghai Zenith Machinery Co., Ltd. has developed advanced grinding mills that address these challenges through robust design, intelligent controls, and optimized grinding mechanisms.
After analyzing the specific requirements for 200-mesh calcium carbonate in Saudi Arabian drilling mud applications, we recommend two flagship products from Shanghai Zenith: the MTW Trapezium Grinding Mill (Model MTW138Z) and the LM Vertical Grinding Mill (Model LM130K). Both are well-suited for this task, offering high capacity, low energy consumption, and excellent product consistency. Below we discuss each mill’s features.

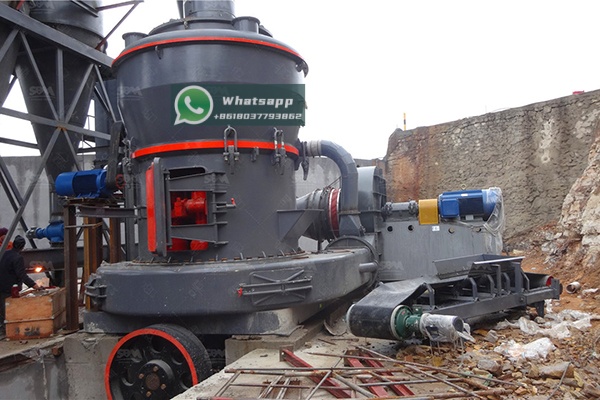

The MTW series is a patented trapezium-shaped mill that uses a unique grinding roller and ring design to improve efficiency by 30% over traditional Raymond mills. For calcium carbonate grinding to 200 mesh, the MTW138Z model provides an ideal balance of feed size acceptance (up to 35 mm), capacity (6–17 t/h), and fineness control (1.6–0.045 mm, which covers 200 mesh easily). Its compact structure and eco-friendly design make it suitable for installation in pre-existing mud plants. The main motor power is 90 kW with a fan motor of 110 kW, ensuring ample air flow for classification.

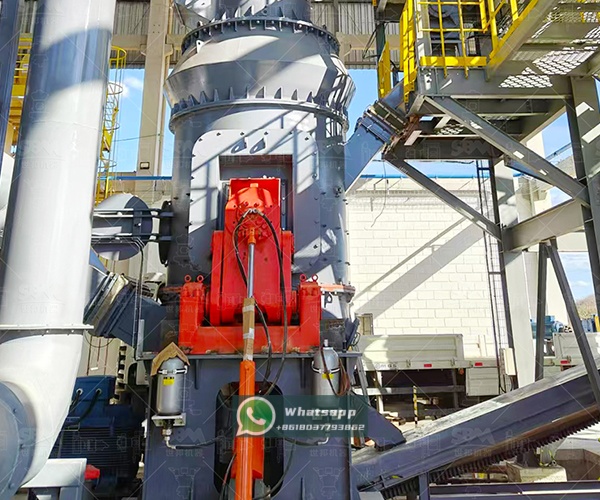

The LM Vertical Grinding Mill integrates crushing, grinding, drying, classifying, and material conveying in a single unit. Its vertical roller design reduces energy consumption by 40–50% compared to ball mills. For 200-mesh calcium carbonate, the LM130K model is an excellent choice: it has a plate diameter of 1300 mm, capacity of 10–28 t/h, and output fineness of 170–40 μm (88–400 mesh). The mill can accept feed sizes up to 38 mm and is equipped with a main motor of 200 kW. Its small footprint and intelligent control system allow for easy automation and remote monitoring—critical for remote desert locations in Saudi Arabia.
The following table provides key specifications of the recommended models for producing 200-mesh calcium carbonate for drilling mud:
| Parameter | MTW138Z | LM130K |
|---|---|---|
| Max. Feed Size (mm) | ≤35 | ≤38 |
| Final Product Fineness (mm) | 1.6–0.045 (10–325 mesh, 200 mesh achievable) | 0.170–0.040 (88–400 mesh, 200 mesh achievable) |
| Capacity (t/h) | 6–17 | 10–28 |
| Main Motor Power (kW) | 90 | 200 |
| Fan Motor Power (kW) | 110 | N/A (integrated) |
| Overall Dimensions (L×W×H, approx.) | 9.5×5.0×7.5 m | 8.5×4.5×12 m |
| Weight (t) | 22 | 32 |
Note: Actual performance depends on material properties and operating conditions.
Shanghai Zenith Machinery Co., Ltd. has been a trusted partner for grinding equipment in the Middle East for over a decade. Our mills are designed with heavy-duty components that withstand high temperature (up to 50°C ambient), sandstorms, and continuous operation. Key advantages include:
Whether you need a single mill for a dedicated calcium carbonate grinding line or a complete turnkey solution including feeding, conveying, packing, and dust collection, Zenith has the engineering expertise to deliver.
A typical grinding plant for drilling mud calcium carbonate consists of:
Producing 200-mesh calcium carbonate for drilling mud in Saudi Arabia requires a grinding mill that combines robust construction, high throughput, and precise particle size control. The MTW Trapezium Grinding Mill (Model MTW138Z) and LM Vertical Grinding Mill (Model LM130K) from Shanghai Zenith Machinery Co., Ltd. are both outstanding choices, each with unique strengths. The MTW mill offers a proven trapezium design with lower initial investment, while the LM mill provides superior energy efficiency and a smaller footprint. Both can deliver a consistent 200-mesh product that meets API specifications for drilling fluids. For more detailed project consultation, capacity calculations, or a quotation tailored to your specific limestone characteristics and production targets, please contact Shanghai Zenith’s sales team.
