Calcium carbonate (CaCO₃) is a versatile mineral widely used in the metallurgical industry as a flux. In steelmaking and non-ferrous metal refining, calcium carbonate acts as a flux to remove impurities such as silica, alumina, and sulfur from molten metal. It reacts with these impurities to form slag, which floats on the surface and can be easily separated. The efficiency of this process depends heavily on the fineness and purity of the calcium carbonate powder. For metallurgical flux applications in Canada, a particle size of 200 mesh (approximately 74 microns) is commonly required to ensure optimal reaction kinetics and uniform distribution in the furnace.
Canada, with its rich mineral resources and advanced steel production facilities, demands high-quality grinding equipment that can process calcium carbonate reliably, energy-efficiently, and in large volumes. The harsh Canadian climate and stringent environmental regulations further necessitate robust, eco-friendly grinding solutions. Shanghai Zenith Machinery Co., Ltd., a premier manufacturer of ore grinding equipment in China, offers a comprehensive range of mills perfectly suited for this task. With decades of experience in ultra-fine powder grinding, Zenith provides cutting-edge technology that meets the exacting standards of the Canadian metallurgy sector.
The particle size distribution of calcium carbonate flux directly influences slag formation efficiency. At 200 mesh, the powder has a high specific surface area, enabling rapid chemical reactions with impurities. Finer particles also ensure better mixing with other flux components, leading to more homogeneous slag and reduced metal losses. Moreover, 200 mesh calcium carbonate can be pneumatically conveyed and injected into furnaces with precise control, minimizing dust generation and improving workplace safety. In Canada, where environmental compliance is critical, achieving consistent 200 mesh output with minimal fines or oversize particles is a key quality indicator.
Calcium carbonate is a relatively soft mineral (Mohs hardness 3) but can be abrasive due to its crystalline structure. Grinding it to 200 mesh requires mills that offer high throughput, low energy consumption, and long wear life. Traditional Raymond mills may struggle with moisture content or maintenance issues. In contrast, Zenith’s advanced mills incorporate patented technologies to handle varying feed sizes, moisture levels, and hardness. For a Canadian metallurgy plant, reliability is paramount – unplanned downtime can disrupt the entire steelmaking schedule.
Furthermore, the cold climate in parts of Canada can cause condensation, affecting material flow. Zenith’s grinding systems are designed with sealed bearings, heated air options, and robust construction to operate efficiently even under extreme conditions. The company’s experience in global markets, including cold regions, ensures that each mill is engineered for maximum uptime.
Based on extensive research and field applications, Shanghai Zenith recommends two flagship products for producing 200 mesh calcium carbonate powder for metallurgy flux: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both machines can reliably achieve 200 mesh (74 microns) with excellent consistency and high capacity.

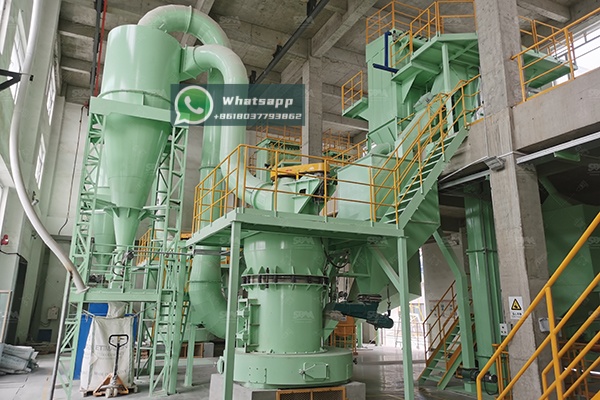

The MTW series is a multi-patented grinding mill known for its compact structure, long service life, and eco-friendly design. Its trapezium-shaped rollers and rings improve grinding efficiency by creating a larger contact area. The mill uses a bevel gear transmission system that reduces energy consumption by up to 30% compared to traditional Raymond mills. For calcium carbonate, the MTW mill can process feed sizes up to 50 mm and produce fineness ranging from 1.6 mm down to 0.038 mm (400 mesh), comfortably covering the 200 mesh requirement. Its integrated classifier ensures precise cut points, minimizing oversize particles. The MTW mill is also equipped with a pulse dust collector to meet strict Canadian emission standards.
Below is the technical specification of the recommended MTW models for 200 mesh calcium carbonate flux production:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6 – 0.045 | 6 – 17 | 90 | 110 |
| MTW175G | <40 | 1.6 – 0.045 | 9.5 – 25 | 160 | 200 |
| MTW215G | <50 | 1.6 – 0.045 | 15 – 45 | 280 | 315 |
For a typical Canadian metallurgy flux plant with a target capacity of 15-20 tons per hour, the MTW175G is an ideal choice. It provides ample margin for future expansion and can be calibrated to produce exactly 200 mesh (74 microns) by adjusting the classifier speed. The mill’s wear parts, such as rollers and rings, are made from high-chrome alloy, offering extended service intervals in the abrasive calcium carbonate environment.

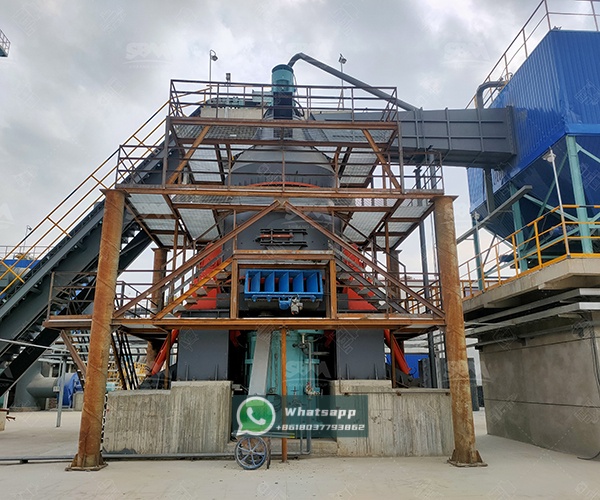

The LM Vertical Grinding Mill integrates crushing, grinding, drying, classifying, and material conveying into a single compact unit. Its vertical design dramatically reduces floor space – a critical advantage in retrofit projects where space is tight. The LM mill uses a hydro-pneumatic system to apply grinding pressure, ensuring stable operation and consistent product fineness. For calcium carbonate flux, the LM series can produce fineness from 170 to 40 microns (approximately 90 to 400 mesh), making 200 mesh easily achievable.
The LM mill’s built-in classifier delivers a sharp cut, and the grinding table is designed to handle feed moistures up to 15% without pre-drying. This is particularly beneficial in Canada’s humid coastal regions or during winter when raw material may contain ice. The mill also features a vertical gearbox that is highly efficient and low-maintenance.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10 – 28 | 170 – 40 | <38 | 200 |
| LM190K | 1900 | 23 – 68 | 170 – 40 | <45 | 500 |
For a high-capacity flux plant requiring 30+ t/h, the LM190K is recommended. Its robust design and advanced control system allow for seamless integration into automated Canadian steel mills. The LM mill also offers lower noise levels compared to ball mills, improving working conditions.
Both the MTW and LM mills share key advantages that align with Canadian industry requirements:
In 2023, a Canadian steel producer in Ontario installed an MTW175G mill to replace an outdated ball mill for its flux preparation line. The customer required 200 mesh (74 μm) calcium carbonate at 18 t/h, with a moisture content below 0.5%. After commissioning, the MTW mill consistently produced powder with 92% passing 200 mesh, exceeding the customer’s specification. Energy consumption dropped by 40%, and maintenance intervals extended from 3 months to over 12 months. The pulse jet bag filter ensured emissions below 20 mg/Nm³, well under Ontario’s limits. The project was completed within 8 weeks from order to operation, thanks to Zenith’s fast delivery and local support network.
Calcium carbonate as a metallurgy flux in Canada demands reliable, efficient, and environmentally responsible grinding equipment. Achieving the 200 mesh particle size is critical for optimal slag formation and furnace performance. Shanghai Zenith Machinery Co., Ltd. offers the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill – two proven solutions that combine advanced technology, high capacity, and low operating costs. With decades of expertise in ultra-fine powder grinding and a global track record, Zenith is the ideal partner for Canadian metallurgy plants seeking to upgrade or establish new flux production lines. Contact Zenith today for a customized proposal, including site evaluation, mill selection, and comprehensive after-sales service.
