Carbon black is a fine black powder of nearly pure elemental carbon, produced by the incomplete combustion of heavy hydrocarbons. In drilling mud, carbon black acts as a rheology modifier and filtration-control agent. It helps reduce fluid loss into permeable formations, stabilizes wellbore walls, and improves the lubricity of the drilling fluid. In Libya, where drilling operations often encounter high-temperature formations, fractured limestone, and unconsolidated sandstone, a high-quality carbon black powder with a uniform particle size such as 325 mesh is essential for maintaining mud performance. When carbon black is ground to the correct fineness, it disperses readily in the mud system and ensures stable rheological properties throughout the drilling program.
The term “325 mesh” means that 95% or more of the powder passes through a screen with 325 openings per linear inch, corresponding to a particle size of approximately 44 microns. At this fineness, carbon black disperses quickly and evenly into the water-based or oil-based mud system. Coarser particles can settle, cause abrasive wear, and fail to seal the filter cake. Finer particles, on the other hand, help build a thin, low-permeability filter cake that controls fluid loss without increasing viscosity excessively. Therefore, to achieve consistent mud quality, operators need a reliable grinding mill that can produce carbon black at 325 mesh with a tight particle-size distribution. A dedicated carbon black grinding mill is not simply an optional investment; it is a core requirement for drilling-fluid preparation companies that serve the oil and gas sector in Libya.
Carbon black is fluffy, cohesive, and has a very low bulk density. Its tendency to agglomerate means that conventional grinding equipment often delivers inconsistent particle sizes. In addition, Libya’s harsh climate, remote drilling locations, and limited access to maintenance facilities demand robust milling equipment with low energy consumption and easy operation. Grinding mills used in Libya must be able to process carbon black continuously without frequent downtime, while also handling other non-metallic minerals for drilling-mud formulations, such as barite, bentonite, or calcium carbonate. The ideal carbon black grinding mill should combine high fineness, high throughput, compact layout, and low operating cost. It must also be easy to install and commission in desert environments where specialized technical support may not be immediately available.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For carbon black grinding to 325 mesh, Zenith offers two particularly valuable solutions: the XZM Ultrafine Grinding Mill and the MTW Trapezium Grinding Mill. These machines combine high capacity, fine output, energy efficiency, and durability in desert environments.

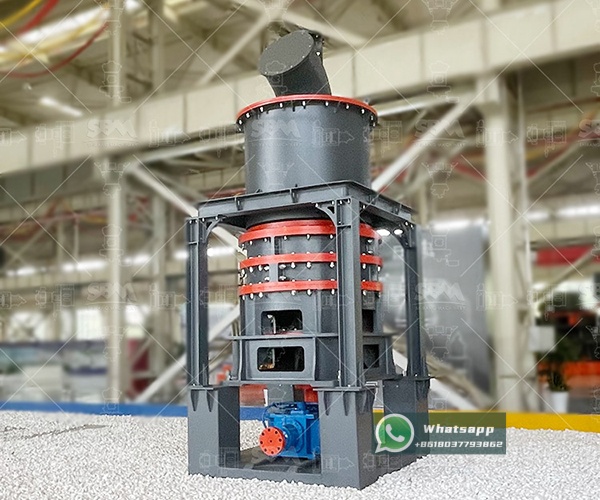

The XZM Ultrafine Grinding Mill is widely used for superfine powder production. It can produce powder from 325 mesh to 2500 mesh, making it an ideal machine for carbon black used in drilling mud. With a working diameter from Φ800 mm to Φ1680 mm, a maximum feed size of 20 mm, and capacity up to 25 t/h, the XZM mill can meet both small pilot-plant and large production requirements. Its intelligent design and advanced classification system ensure that the final 325-mesh carbon black powder has high uniformity. The mill also features a pulse dust collector and low-noise design, which is beneficial for operators in remote Libyan camps. The XZM ultra-fine grinding mill is especially suitable when the target product is 325 mesh or finer, as it avoids the need for additional classification equipment and delivers a directly usable powder for drilling mud blending.
The MTW Trapezium Grinding Mill is another excellent option for carbon black processing. It has multiple patents, a compact structure, and a long service life. With a maximum feed size of 50 mm and final fineness from 1.6 mm down to 0.045 mm, which corresponds to approximately 325 mesh, the MTW series is suitable for medium-to-large scale grinding operations. The trapezium-shaped grinding roller and ring improve grinding efficiency and prolong wear life. For drilling-mud factories in Libya that need to grind multiple minerals, the MTW mill offers great flexibility. It can be used as a primary mill for carbon black and can later be adapted to process barite, limestone, or other non-metallic minerals, making it a long-term asset for any drilling-mud production facility.
To help operators select the correct equipment, the following table summarizes the key technical parameters of the recommended Zenith mills for 325-mesh carbon black production. These data are based on Shanghai Zenith Machinery’s standard product documentation and are useful for preliminary engineering and equipment selection.
| Model | Machine Type | Max Feed Size | Output Fineness | Capacity | Main Motor Power |
|---|---|---|---|---|---|
| XZM221 | Ultrafine Grinding Mill | ≤20 mm | 325-2500 mesh | 500-4500 kg/h | 75 kW |
| XZM268 | Ultrafine Grinding Mill | ≤20 mm | 325-2500 mesh | 5000-25000 kg/h | 315 kW |
| MTW175G | Trapezium Grinding Mill | <40 mm | 1.6-0.045 mm (roughly 10-325 mesh) | 9.5-25 t/h | 160 kW (fan: 200 kW) |
For a small drilling-mud plant, the XZM221 is a compact and efficient solution. For larger Libyan operators or centralized processing facilities, the XZM268 or MTW175G can provide significantly higher throughput while maintaining 325-mesh fineness. The choice between these models depends on the required production capacity, the available power supply, and the overall plant layout. Zenith can also customize the mill configuration to suit specific site conditions and material characteristics.
In a typical carbon black grinding plant, the raw material is first crushed to under 20 mm. A bucket elevator then feeds the material into the grinding mill. Inside the XZM mill, the grinding rollers rotate around a central shaft and grind the carbon black against the grinding ring. A high-pressure blower draws air through the grinding zone, carrying the fine particles to a classifier. Oversize particles return to the grinding chamber, while the fine powder meeting the 325-mesh specification enters a cyclone collector or pulse dust collector. Finally, the collected powder is packed or pneumatically transported to the mud-mixing unit. This closed-loop process minimizes dust emission and ensures stable product quality. The same process can be adapted to the MTW Trapezium Grinding Mill, which uses a similar air-circulation and classification system to achieve a consistent final product.
Libya’s drilling activities face extreme heat, sandstorms, and long distances from service centers. Zenith mills are designed with high wear resistance, heavy-duty bearings, and simplified lubrication systems that reduce maintenance needs. The grinding components are manufactured using high-strength steel, and the classifiers are designed to operate continuously under high temperature. Furthermore, Zenith provides technical documentation, spare parts support, and online consultation to assist overseas customers. With a strong track record in the Middle East and Africa, Zenith understands the importance of reliable equipment in oilfield supply chains. The company’s grinding mills are exported widely and have been used in mineral processing, building materials, and drilling-fluid additive production projects around the world.
Grinding carbon black to 325 mesh is a critical step in producing high-performance drilling mud for Libya’s oil and gas industry. A uniform, fine powder improves filtration control, wellbore stability, and overall drilling efficiency. Shanghai Zenith Machinery offers advanced and durable grinding solutions such as the XZM Ultrafine Grinding Mill and the MTW Trapezium Grinding Mill. The XZM series is particularly recommended for carbon black because it is specially designed for superfine powder production, while the MTW series provides high-capacity flexibility for multi-mineral grinding. For a new grinding line or an upgrade to an existing drilling-mud plant in Libya, Zenith equipment delivers high productivity, low energy consumption, and consistent 325-mesh output. Investing in the right carbon black grinding mill is essential for any drilling-mud supplier that wants to remain competitive in Libya’s demanding oilfield environment.
