Indonesia has become one of the key players in the Southeast Asian energy and construction sectors. The increasing demand for high-quality cement and efficient drilling fluids has propelled industries to seek advanced grinding technology. One of the essential aspects of both cement and drilling industries lies in the precise and efficient grinding of various raw materials such as cement clinker, limestone, and additives used in producing drilling mud. To meet these increasing requirements, Shanghai Zenith Machinery Co., Ltd. provides sophisticated grinding solutions capable of delivering high efficiency, consistent particle size, and flexibility for various applications.
Shanghai Zenith Machinery Co., Ltd. is a well-known manufacturer of ore and mineral grinding equipment, headquartered in China. With wide experience in ultra-fine powder grinding and industrial milling systems, Zenith has been serving multiple industries worldwide, including mining, energy, metallurgy, and construction. In the Indonesian market, particularly for grinding cement clinker and producing fine drilling mud materials, Zenith’s products have been crucial in ensuring cost-effective and sustainable production.
In Indonesia, drilling operations for oil and gas exploration require high-quality drilling mud with specific rheological properties. Clay, barite, cement clinker, and limestone are often used in the drilling process to prepare mud that stabilizes boreholes and cools drilling bits. To achieve this, finely ground materials are necessary to ensure proper fluidity, lubrication, and viscosity.
A cement clinker grinding mill with a processing capacity of 10–20 TPH is ideal for such medium-scale production lines where both cement additives and drilling mud components can be processed using a single system. This capacity range allows consistent throughput and ensures energy efficiency suitable for regional use in Indonesia’s energy and construction sectors.
For a cement clinker grinding line of 10–20 TPH capacity designed for drilling mud applications, two outstanding models from Shanghai Zenith Machinery are highly recommended — the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. These mills are known for their high stability, fine particle control, and low operating cost, making them ideal choices for Indonesian industrial operations.
The MTW Trapezium Grinding Mill represents advanced European technology. It is an efficient and energy-saving milling equipment suitable for processing non-flammable, non-explosive materials with Mohs hardness below 9.3. Its capacity range aligns perfectly with the 10–20 TPH demand, making it highly suitable for medium-scale cement clinker processing and the preparation of fine powder for drilling fluids.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
With its outstanding capacity and efficiency, the MTW175G model perfectly covers the 10–20 TPH requirement range. It ensures a smooth material flow, minimized wear, and optimized classification, resulting in a consistent final product size crucial for drilling mud preparation.

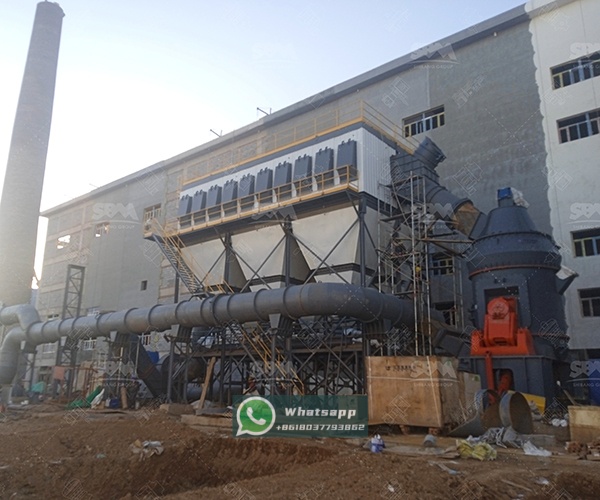

Another suitable machine for the 10–20 TPH cement clinker and drilling mud preparation line is the LM Vertical Grinding Mill. The LM series is an all-in-one solution that integrates crushing, drying, grinding, classifying, and conveying in one compact unit. This design significantly reduces plant footprint while improving energy efficiency. Its ability to handle materials with varying moisture levels makes it ideal for Indonesian environmental conditions with high humidity.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
The LM130K model is particularly well-suited for this application, offering balanced energy consumption and production output. It ensures minimal product contamination, essential in producing high-quality drilling mud additives.
One practical example comes from a cement and drilling mud production enterprise in East Java, Indonesia. The customer adopted a combination of Zenith’s MTW175G Trapezium Mill and LM130K Vertical Mill for processing cement clinker, limestone, and additives at an average output of 15 TPH. The system demonstrated exceptional stability with over 97% uptime, enabling the company to supply consistent drilling mud additives meeting both ASTM and API standards.
The energy consumption was reduced by approximately 18% compared with previous traditional ball mills. Furthermore, the closed-circuit design helped reduce dust emissions by 25%, supporting sustainable industrial production objectives.
The 10–20 TPH grinding line for drilling mud preparation typically involves the following process stages:
These processes are designed to minimize mechanical losses and optimize throughput, ensuring the best utilization of 10–20 TPH capacity.
As Indonesia continues to expand its oil, gas, and cement industries, there is a growing need for reliable and energy-efficient grinding systems. Shanghai Zenith Machinery Co., Ltd. stands out as a global leader in providing robust cement clinker grinding solutions suitable for both cement production and drilling mud preparation. Among its product lineup, the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill have proven to be efficient, environment-friendly, and economically beneficial for medium-scale plants.
With capacities aligning perfectly in the 10–20 TPH range, these mills ensure long-term operational stability, reduced costs, and consistent product quality. As a reliable partner, Zenith continues to support Indonesian industries with customized technical services, onsite training, and after-sales solutions to maximize their production potential.
