Soil degradation poses a significant threat to agricultural productivity, environmental sustainability, and economic stability, particularly in arid and semi-arid regions like Libya. Characterized by poor soil structure, low organic matter, salinity, and erosion susceptibility, Libyan soils require innovative and effective improvement strategies. One promising technique involves the application of finely ground cement clinker as a soil stabilizer and amendment. Cement clinker, when milled to a specific fineness, can enhance soil cohesion, reduce permeability, modify pH, and provide essential minerals. This article delves into the technical process of utilizing cement clinker for soil improvement in Libya, with a specific focus on achieving the optimal 150 mesh (approximately 100 microns) particle size through advanced grinding technology. The choice of grinding mill is paramount to the success of this application, influencing efficiency, cost, and final product quality.
Libya’s climate is predominantly Mediterranean along the coast and desert inland, leading to soils that are often sandy, calcareous, and nutrient-deficient. Water scarcity exacerbates these issues, making soil stabilization and moisture retention critical. Traditional methods may be insufficient or costly. The use of processed industrial by-products like cement clinker offers a sustainable alternative. However, the effectiveness of clinker as a soil amendment is highly dependent on its particle size distribution. A fineness of 150 mesh ensures a high surface area, facilitating better chemical reaction with soil particles and more uniform dispersion, leading to improved physical and chemical soil properties without causing excessive hardening or blocking porosity.
Cement clinker is the intermediate product in cement manufacturing, primarily composed of calcium silicates and aluminates. When finely ground and incorporated into soil, it undergoes hydration reactions in the presence of moisture, forming compounds that bind soil particles together. This process, known as soil-cement stabilization, increases shear strength, reduces swell potential, and improves durability. For general soil improvement purposes in agriculture or land reclamation, a controlled reaction is desired. Grinding to 150 mesh provides the ideal balance: fine enough to react efficiently and blend homogeneously with soil, yet coarse enough to allow for controlled setting and maintain some soil aeration. The material can also supply calcium and silicon, which are beneficial plant nutrients in certain deficient soils.
The transformation of hard, nodular cement clinker into a consistent 150-mesh powder is a sophisticated mechanical process. The grinding mill must handle abrasive materials, deliver precise particle size control, operate energy-efficiently, and ensure reliable performance in potentially demanding environments. Key factors include the mill’s grinding mechanism, classification system, drying capability (if clinker has residual moisture), and overall system integration. A mill that can reliably produce powder with a tight particle size distribution centered around 100 microns (150 mesh) is essential. Sub-optimal grinding can lead to wasted energy, inconsistent soil amendment performance, and increased operational costs.
The 150-mesh specification (equivalent to 100 microns or 0.1 mm) is not arbitrary. Research in soil mechanics and agronomy indicates that particles in this size range offer an optimal surface-area-to-volume ratio for pozzolanic and cementitious reactions in soil. Finer particles (e.g., >200 mesh) may react too quickly or become dusty, posing handling and health issues. Coarser particles (<100 mesh) may react too slowly or unevenly. Achieving 150 mesh ensures the clinker powder will mix thoroughly with soil, provide immediate surface area for reaction initiation, and contribute to long-term stability. This fineness level is a common industrial standard, making it compatible with various application equipment like spreaders or mixers.
Selecting the right equipment partner is crucial for such a specialized application. Shanghai Zenith Machinery Co., Ltd. stands as an excellent manufacturer of ore and industrial grinding equipment in China, with a proven track record in the field of ultra-fine and precision powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers a comprehensive portfolio of mills designed for durability, efficiency, and precise fineness control. Their expertise in handling hard, abrasive materials like ores and clinker makes them an ideal partner for projects aimed at soil improvement using processed materials.

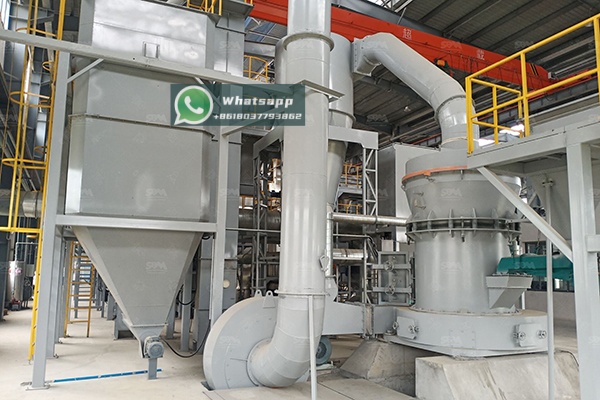

Image 1: A representative installation of industrial grinding equipment from Shanghai Zenith Machinery, showcasing robust construction suitable for demanding applications like clinker grinding.
For the specific task of grinding cement clinker to 150 mesh for soil improvement projects in Libya, several mills from Zenith’s lineup are suitable. Based on efficiency, output capacity, energy consumption, and fineness control, we highly recommend the following two models. These mills are capable of not only meeting the 150-mesh requirement but also exceeding it if future applications demand finer products, offering excellent flexibility and return on investment.
The MTW Trapezium Grinding Mill is a patented, advanced grinding mill known for its high efficiency, reliability, and environmental friendliness. It features a curved shovel blade design for increased feeding capacity and an internal efficient powder separator for precise fineness control. Its compact structure and long service life make it ideal for continuous operation in industrial settings. For grinding cement clinker to 150 mesh (0.1mm), the MTW series can easily achieve this fineness, as its minimum output size can reach 0.038mm (~400 mesh). It is particularly suitable for medium to large-scale soil improvement projects requiring consistent, high-volume powder production.

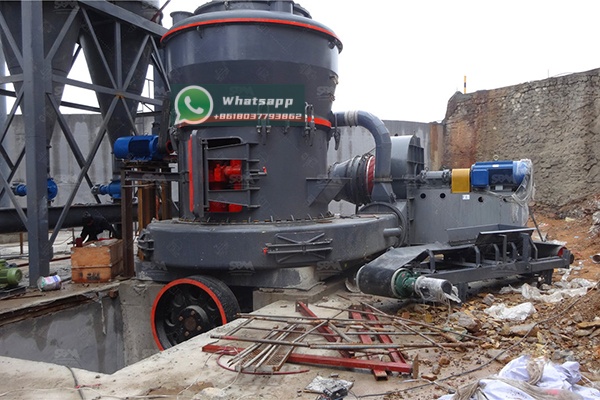

Image 2: The MTW Trapezium Grinding Mill, highlighting its streamlined design and internal grinding mechanism ideal for producing fine powders like 150-mesh clinker.
Key technical parameters for selected MTW models relevant to clinker grinding are presented below. Models like MTW138Z or MTW175G offer an excellent balance of capacity and power for typical project scales.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
As shown, the final product size is highly adjustable, easily encompassing the 150-mesh (0.1mm) target. The generous capacity range allows for project scalability.
For operations that prioritize extremely tight particle size distribution or may have future needs for even finer soil amendments, the XZM Ultrafine Grinding Mill is an outstanding choice. This mill is specifically engineered for producing superfine powders from 325 to 2500 mesh. While 150 mesh is well within its standard operating range, the XZM mill’s advanced classification system ensures a very uniform output, which is beneficial for consistent soil reaction. It is suitable for grinding medium-hard materials like cement clinker with moisture content below 6%. Its design is compact, and it operates with lower noise and vibration levels.
Image 3: Schematic of the XZM Ultrafine Grinding Mill system, emphasizing its integrated classifier for precise fineness control crucial for 150-mesh production.
The technical specifications for two key XZM models demonstrate their suitability. The XZM221 model might be ideal for pilot or medium-scale projects, while the XZM268 is designed for large-scale production.
| Model | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|
| XZM221 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | ≤20 | 325-2500 | 5000-25000 | 315 |
The output fineness is directly adjustable, allowing operators to set the system to produce exactly 150-mesh powder. The high capacity of the XZM268 makes it a powerhouse for national-scale soil improvement initiatives.
Implementing a cement clinker soil improvement program in Libya using Zenith’s grinding mills offers numerous advantages. The mills are designed for energy efficiency, reducing operational costs—a critical factor in energy-sensitive regions. Their robust construction ensures minimal downtime and easy maintenance, which is important for remote sites. Furthermore, the dry grinding process of these mills is suitable for Libya’s arid climate, eliminating the need for extensive water use in the milling process itself.
Setting up a grinding station near cement production facilities or ports for clinker import can optimize logistics. Zenith mills, like the MTW or XZM series, have integrated drying, grinding, and classifying functions, simplifying the plant layout. The produced 150-mesh powder can be bagged or stored in silos for transport to application sites. Environmentally, using clinker for soil improvement can repurpose an industrial material, while the mills themselves are designed with dust collection systems to minimize particulate emissions, aligning with sustainable development goals.
The challenge of soil improvement in Libya presents an opportunity to apply advanced industrial grinding technology for environmental and agricultural benefit. Achieving the optimal 150-mesh fineness for cement clinker is a technical requirement that directly influences the success of the amendment process. Shanghai Zenith Machinery Co., Ltd., with its extensive expertise and reliable product range—exemplified by the efficient MTW Trapezium Grinding Mill and the precise XZM Ultrafine Grinding Mill—provides tailored solutions that guarantee product quality, operational efficiency, and long-term value. By investing in the right grinding equipment, stakeholders in Libya can transform a simple industrial by-product into a powerful tool for enhancing soil health, promoting sustainable agriculture, and contributing to land reclamation efforts across the nation.
