In the world of powder processing and handling, bulk density stands as one of the most critical physical properties influencing everything from storage and transportation to final product performance. A powder’s bulk density—the mass of many particles of the material divided by the total volume they occupy—directly impacts flowability, compressibility, packaging efficiency, and dissolution rates. For industries ranging from pharmaceuticals and chemicals to food processing and construction materials, mastering control over this property is not just an optimization goal; it is a fundamental requirement for quality, efficiency, and cost-effectiveness.
Bulk density is not an intrinsic property of a material but is heavily influenced by particle characteristics and processing history. It is typically categorized into two types:
The difference between these two states highlights the compressibility of a powder, a key factor in packaging and storage design. Several particle-level factors dictate bulk density:
The journey to optimal bulk density begins at the comminution stage. The choice of grinding equipment and the parameters of the milling process are perhaps the most significant levers an operator has to control the physical characteristics of the final powder. Different mill types impart different energy inputs and fracture mechanisms, leading to distinct particle morphologies.
For instance, impact-based mills like Hammer Mills tend to produce more angular and irregular particles, which may not be ideal for high-density applications. In contrast, roller-based mills and advanced vertical mills can produce a more controlled particle size distribution with less extreme aspect ratios, paving the way for better packing.
This is where the expertise of a specialized equipment manufacturer becomes invaluable. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. Their research and development focus on industrial powder grinding equipment provides processors with the precise tools needed to engineer powders with specific properties, including target bulk densities.
For producers aiming to enhance the bulk density of their powdered products, selecting the right grinding mill is paramount. Zenith’s portfolio offers several machines capable of producing the tight, controlled particle distributions necessary for high bulk density. Two standout solutions are the LM Vertical Grinding Mill and the LUM Ultrafine Vertical Mill.
The LM Vertical Grinding Mill is a workhorse designed for medium to large-scale production. Its key advantage in the context of bulk density is its integrated process. By combining crushing, grinding, powder selection, drying, and conveying into a single unit, it ensures a consistent and controllable milling environment. This consistency is vital for producing a repeatable PSD.
The mill’s ability to handle a wide range of feed sizes and produce a fine, uniform product makes it ideal for creating powders that pack well. The integrated classifier allows for precise control over the top particle size and the overall distribution, enabling operators to target the “sweet spot” for maximum packing density.
Below are the technical parameters for the Vertical Mineral Mill series, demonstrating its capacity and versatility:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |

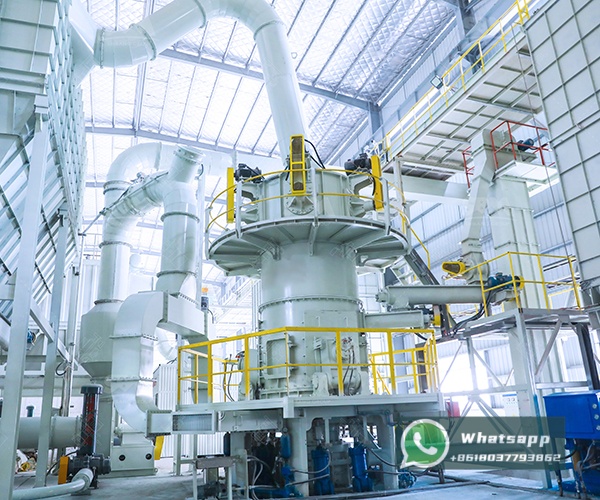

When the application demands ultra-fine powders without sacrificing handling properties, the LUM Ultrafine Vertical Mill is the superior choice. This mill is engineered for producing products with a high content of end-fines, but its intelligent design and advanced classifying system prevent the uncontrolled agglomeration that often plagues fine grinding processes.
For bulk density enhancement, the LUM mill’s ability to deliver a very narrow particle size distribution (PSD) is its greatest asset. A narrow PSD allows for more predictable and repeatable packing behavior. Furthermore, its efficient grinding mechanism can influence particle sphericity positively, contributing to better flow and higher packed density. The intelligent control system ensures that these parameters remain stable over time, which is crucial for industrial production.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
While the milling stage sets the foundation, several downstream processes can be employed to further increase bulk density:
Enhancing the bulk density of powdered products is not a matter of chance but a result of careful engineering at every stage of the production process. It begins with a fundamental understanding of particle science and is executed through the selection of appropriate processing technology.
Investing in advanced grinding equipment from a reputable manufacturer like Shanghai Zenith Machinery is the most critical step. Mills like the LM Vertical Grinding Mill and the LUM Ultrafine Vertical Mill provide the control, consistency, and particle-shaping capability required to create powders that meet modern industrial demands for high density, excellent flow, and optimal performance. By combining the right milling technology with targeted post-processing techniques, producers can unlock new levels of efficiency, reduce costs, and deliver a superior product to the market.
