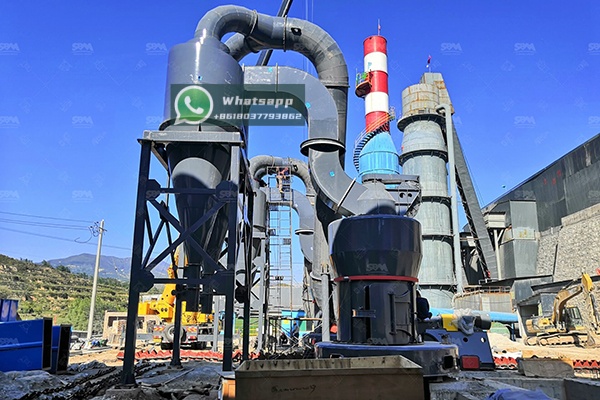

Pneumatic conveying systems represent a critical component in modern industrial processes, enabling the efficient transportation of powdered and granular materials through pipelines using air or other gases as the conveying medium. These systems are widely employed across various industries including chemical, pharmaceutical, food processing, and mineral processing due to their flexibility, cleanliness, and ability to handle diverse materials over long distances.
The efficiency of pneumatic conveying systems directly impacts operational costs, product quality, and overall plant productivity. As industries increasingly focus on sustainability and cost reduction, optimizing these systems has become paramount. This article explores key strategies for enhancing pneumatic conveying efficiency while highlighting how proper material preparation through advanced grinding technology can significantly improve system performance.
The physical properties of conveyed materials profoundly influence system performance. Particle size distribution, moisture content, bulk density, and flow characteristics all play crucial roles in determining conveying efficiency. Materials with consistent particle size and optimal moisture levels typically convey more efficiently, reducing energy consumption and minimizing system wear.
Proper material preparation through precision grinding ensures uniform particle distribution, which directly translates to improved flow characteristics and reduced pressure drops in conveying lines. This is where advanced grinding equipment becomes essential for optimizing overall system performance.
Efficient pneumatic conveying requires careful system design, including appropriate selection of conveying mode (dilute phase, dense phase, or semi-dense phase), pipeline layout, and component specification. Proper air-to-material ratio, velocity control, and pipeline routing significantly impact energy consumption and material degradation during transportation.
Material preparation through grinding represents a fundamental step that directly affects pneumatic conveying performance. Consistent particle size distribution achieved through precision grinding reduces air resistance, minimizes particle segregation, and prevents pipeline blockages. For operations handling mineral ores and industrial powders, selecting the appropriate grinding equipment is crucial for maintaining optimal conveying conditions.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment, has made significant achievements in the field of ultra-fine powder grinding. Their specialized research, development, and production of industrial powder grinding equipment provide ideal solutions for preparing materials destined for pneumatic conveying systems.
For operations seeking comprehensive material preparation, the LM Vertical Grinding Mill offers an exceptional solution. This innovative equipment integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. The vertical design minimizes floor space requirements while providing superior grinding efficiency.
The LM Vertical Grinding Mill is particularly suitable for operations where material consistency directly impacts downstream conveying performance. Its ability to produce finely controlled particle distributions ensures optimal flow characteristics in pneumatic systems, reducing energy consumption and maintenance requirements.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For operations requiring ultra-fine powder production with precise particle size control, the LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This advanced mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. Its intelligent control system ensures consistent product quality, making it ideal for materials where precise particle distribution is critical for efficient pneumatic conveying.
The LUM mill’s ability to produce products with high content of end-fines while maintaining narrow particle distribution significantly enhances conveying efficiency by reducing air consumption and minimizing pressure fluctuations.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Maintaining optimal particle size distribution through precision grinding directly correlates with pneumatic conveying efficiency. Materials ground using Zenith’s advanced milling technology exhibit improved flow characteristics, reduced tendency for segregation, and minimized pressure drop across conveying lines. The consistent particle geometry achieved through these grinding solutions ensures stable conveying velocities and reduced energy requirements.
Many grinding systems from Zenith incorporate integrated drying capabilities, allowing for precise moisture control in the final product. This is particularly important for pneumatic conveying, as excessive moisture can lead to material buildup, pipeline blockages, and increased energy consumption. The LM Vertical Grinding Mill’s integrated drying function ensures optimal moisture levels for efficient conveying.
A mineral processing plant implementing Zenith’s LM Vertical Grinding Mill reported significant improvements in their pneumatic conveying system performance. The consistent particle size distribution achieved through the grinding process resulted in a 23% reduction in conveying air pressure requirements and a 17% decrease in energy consumption. Additionally, the reduced particle degradation minimized wear on conveying components, extending maintenance intervals by approximately 40%.

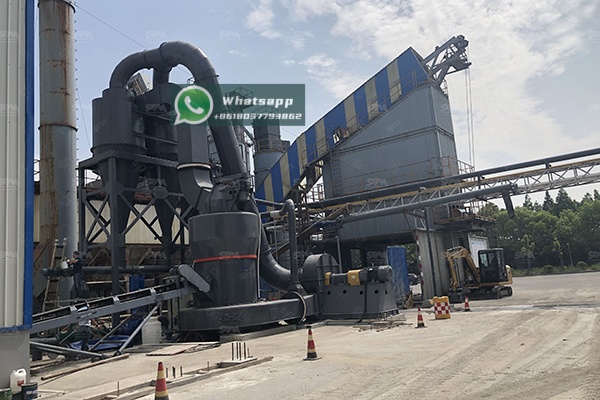

Regular maintenance of both grinding equipment and conveying systems is essential for sustained efficiency. Zenith’s grinding mills are designed with maintenance-friendly features, including accessible wear parts and advanced monitoring systems that predict maintenance needs before they impact performance. Similarly, pneumatic conveying systems benefit from the consistent material quality produced by these grinding solutions, experiencing reduced wear rates and fewer operational disruptions.
The integration of smart technologies and IoT capabilities in grinding equipment represents the future of optimized material processing. Zenith’s ongoing research in ultra-fine powder grinding continues to push boundaries in particle control technology, enabling even greater efficiencies in downstream processes like pneumatic conveying. The development of energy-efficient grinding solutions that produce ideally sized materials for conveying will remain a focus area for industry advancement.
Enhancing the efficiency of pneumatic conveying systems requires a holistic approach that begins with proper material preparation. Shanghai Zenith Machinery’s advanced grinding solutions, particularly the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill, provide the foundation for optimized conveying performance through consistent particle size control and integrated processing capabilities. By investing in appropriate grinding technology and implementing the strategies discussed, operations can achieve significant improvements in energy efficiency, system reliability, and overall productivity.
The synergy between precision grinding and efficient pneumatic conveying represents a substantial opportunity for cost reduction and performance enhancement across numerous industrial sectors. As technology continues to evolve, the relationship between material preparation and conveying efficiency will become increasingly important in achieving operational excellence.
