In the evolving landscape of industrial powder processing, the choice between traditional European mills and modern upgraded Raymond mills represents a critical decision for manufacturers seeking optimal efficiency, productivity, and cost-effectiveness. This comprehensive performance review examines the technical distinctions, operational advantages, and practical applications of these two grinding technologies.
The European mill, traditionally known for its robust construction and reliable performance, has been a cornerstone of industrial grinding operations for decades. Characterized by its heavy-duty design and consistent output, these mills established the baseline for powder processing across multiple industries. Meanwhile, the Raymond mill technology has undergone significant transformation, evolving from its original patent in the early 20th century to become a sophisticated grinding solution that addresses contemporary production demands.
European mills typically feature a vertical or horizontal configuration with grinding elements that operate through compression and shear forces. The traditional design emphasizes durability over precision, with limited adjustability in particle size distribution. The upgraded Raymond mill, in contrast, incorporates advanced engineering principles that enable superior control over grinding parameters and final product characteristics.

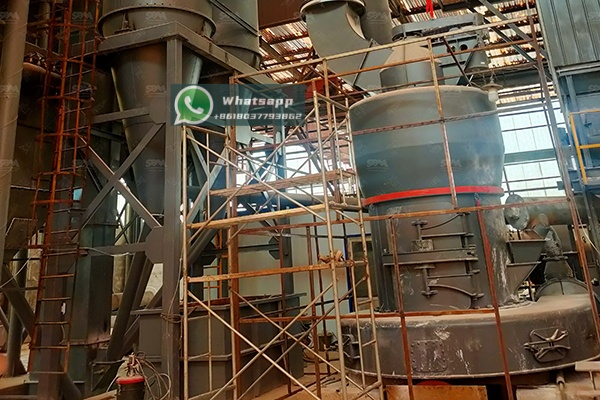

Modern Raymond mill systems integrate multiple functions including grinding, classification, drying, and transportation within a compact footprint. This integrated approach reduces energy consumption while improving overall system efficiency. The incorporation of digital control systems further enhances operational precision, allowing real-time adjustments to optimize performance based on material properties and production requirements.
When evaluating grinding equipment, several key performance indicators must be considered: energy consumption per ton of processed material, particle size distribution control, operational reliability, and maintenance requirements. European mills typically demonstrate higher energy consumption relative to output, particularly when processing materials to finer specifications. The mechanical design, while robust, often lacks the efficiency optimization found in modern alternatives.
Upgraded Raymond mills address these limitations through innovative design features. The curved surface of grinding rollers and rings increases contact area with materials, improving grinding efficiency while reducing wear. Advanced classification systems provide precise control over particle size distribution, enabling manufacturers to consistently meet stringent product specifications.
As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has made significant achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, the company offers sophisticated solutions that bridge the gap between traditional reliability and modern efficiency.
Among their comprehensive product portfolio, two models stand out as exemplary representatives of advanced grinding technology: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill. These machines incorporate the latest technological innovations while maintaining the operational reliability essential for industrial applications.

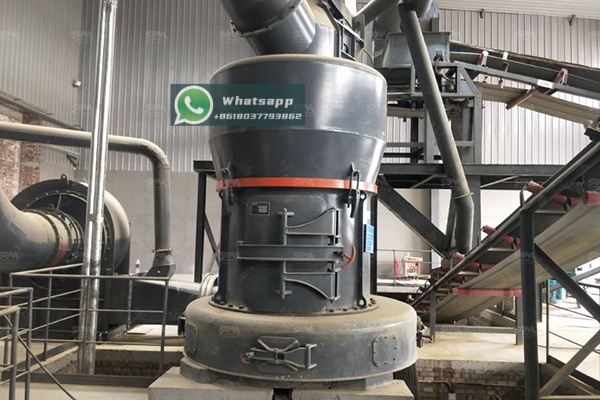

The MTW Trapezium Grinding Mill represents the evolution of European mill design, incorporating multiple patents for improved performance. With its compact structure, long service life, and eco-friendly design, this mill demonstrates how traditional concepts can be enhanced through modern engineering. Suitable for processing materials with maximum input size of 50mm, it produces final product as fine as 0.038mm.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The MTW series incorporates bevel gear overall transmission, internal thin oil lubrication system, and arc air channel design—features that significantly improve operational efficiency while reducing maintenance requirements. These technological advancements position the MTW as an ideal solution for operations seeking European mill reliability with modern performance characteristics.
For applications requiring ultra-fine grinding capabilities, the LUM Ultrafine Vertical Mill represents the cutting edge of Raymond mill technology. This system integrates grinding, drying, classifying, and transportation functions while occupying minimal space. Designed to produce products with high content of end-fines, it features intelligent control systems for easier maintenance and optimized performance.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series employs advanced grinding roller and grinding ring designs that maximize contact area while minimizing wear. The incorporation of automatic control systems enables precise adjustment of operational parameters, ensuring consistent product quality across production batches. This mill is particularly suitable for applications requiring precise particle size distribution control and high efficiency ultra-fine grinding.
The choice between European mill derivatives and upgraded Raymond mill technology ultimately depends on specific application requirements. For operations processing abrasive materials or requiring extreme durability, the MTW Trapezium Grinding Mill offers an optimal balance of European-inspired robustness and modern efficiency. For applications demanding ultra-fine grinding with precise particle distribution control, the LUM Ultrafine Vertical Mill provides superior performance.
Material characteristics significantly influence equipment selection. Hardness, moisture content, abrasiveness, and required fineness all impact the optimal choice between these technologies. Shanghai Zenith Machinery’s comprehensive product portfolio ensures that operators can select equipment precisely matched to their specific material processing requirements.
Beyond technical performance, economic factors play a crucial role in equipment selection. The upgraded Raymond mill designs typically demonstrate lower operational costs due to reduced energy consumption and maintenance requirements. The integrated systems minimize ancillary equipment needs, further reducing capital investment and operational complexity.
Lifecycle cost analysis should consider not only initial acquisition expense but also energy consumption, maintenance requirements, spare parts availability, and operational flexibility. Both the MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill are designed to optimize these factors, providing compelling economic advantages over both traditional European mills and conventional Raymond mill designs.
The evolution of grinding technology continues toward greater efficiency, precision, and integration. Digitalization and smart control systems are becoming increasingly important, enabling predictive maintenance and optimized operation based on real-time material analysis. Shanghai Zenith Machinery remains at the forefront of these developments, continuously refining their product designs to incorporate the latest technological advancements.
Environmental considerations are also driving innovation, with emphasis on reducing energy consumption, minimizing dust emissions, and improving working conditions. Both the MTW and LUM series address these concerns through advanced sealing systems, efficient dust collection integration, and noise reduction technologies.
The comparison between European mills and upgraded Raymond mills reveals a clear technological progression toward higher efficiency, greater precision, and improved operational economics. While traditional European mills established the foundation for industrial grinding, modern iterations like the MTW Trapezium Grinding Mill demonstrate how these concepts can be enhanced through contemporary engineering.
Similarly, the evolution of Raymond mill technology has produced sophisticated systems like the LUM Ultrafine Vertical Mill that deliver unprecedented control over grinding processes and final product characteristics. Shanghai Zenith Machinery’s expertise in both technological domains positions them as an ideal partner for operations seeking to optimize their grinding processes.
Ultimately, the selection between these technologies should be guided by specific application requirements, material characteristics, and operational objectives. With comprehensive technical support and a diverse product portfolio, Shanghai Zenith Machinery provides solutions that bridge historical reliability with modern performance, ensuring optimal outcomes across the spectrum of industrial grinding applications.
