Qatar’s rapidly expanding livestock sector, driven by national food security initiatives, has created a growing demand for high-quality animal feed additives. Among these, feldspar—a group of rock-forming minerals rich in potassium, sodium, and trace elements—has gained attention as a cost-effective and beneficial additive. When ground to the proper fineness, feldspar can serve as a mineral supplement, a flowing agent, and a pellet binder in feed formulations. To meet the specific requirement of 3–5 tons per hour (tph) in Qatar, selecting the right grinding mill is critical for both operational efficiency and product quality.
Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers a comprehensive range of mills ideally suited for feldspar grinding. With decades of experience in ultra-fine powder processing, Zenith’s solutions combine robust construction, energy efficiency, and precise particle size control. This article provides a detailed technical analysis of feldspar grinding for animal feed additive production in Qatar, focusing on the 3–5 tph capacity range, and recommends two proven Zenith machines: the MTW110Z Trapezium Grinding Mill and the MTM100 Medium-Speed Grinding Mill.
Feldspar is primarily valued in feed for its high content of potassium (K₂O typically 8–12%) and sodium (Na₂O 2–6%), both essential electrolytes for poultry, cattle, and aquaculture. Additionally, it provides silica and alumina, which improve pellet durability and reduce dustiness. In arid regions like Qatar, where mineral deficiencies can arise due to sandy soils and limited forage, adding finely ground feldspar helps balance the diet and supports growth, eggshell quality, and milk production.
The required particle size for feldspar in feed applications typically falls between 0.1 mm and 0.5 mm (100–150 mesh), although some formulations demand finer material (up to 200 mesh). A consistent, flowable powder with minimal oversize particles is essential to avoid segregation in mixing. Therefore, the grinding mill must offer adjustable fineness control while maintaining a stable throughput of 3–5 tph.
Feldspar has a Mohs hardness of 6–6.5, moderately abrasive, and can cause wear on grinding components if not processed with appropriate equipment. Qatar’s ambient temperature often exceeds 40°C, so heat dissipation and mill cooling are additional considerations. Moreover, the raw material may have moisture content up to 3–5%, which must be handled without clogging.
Zenith’s grinding mills incorporate advanced features to address these challenges: wear-resistant liners, automatic lubrication systems, and intelligent temperature control. The MTW and MTM series, in particular, use multi-stage grinding and classification to produce a uniform powder with low energy consumption. They also feature sealed gearboxes and dust collectors to comply with environmental regulations in Qatar.
Based on the required capacity and material characteristics, Zenith offers two excellent choices: the MTW110Z Trapezium Grinding Mill and the MTM100 Medium-Speed Grinding Mill. Both machines can achieve 3–5 tph while delivering a final product fineness of 0.045–1.6 mm (adjustable).
The MTW series is Zenith’s flagship mill, featuring a trapezium-shaped grinding roller and ring that increases grinding efficiency by 10–15% compared to traditional Raymond mills. The MTW110Z model is the smallest in the series, with a capacity range of 3–10 t/h, perfectly covering the 3–5 tph target. Its compact structure and low noise make it ideal for space-constrained plant locations.
| Parameter | Value |
|---|---|
| Max. Feed Size (mm) | <30 |
| Final Product Size (mm) | 1.6–0.045 (adjustable) |
| Capacity (t/h) | 3–10 |
| Main Motor Power (kW) | 55 |
| Fan Motor Power (kW) | 55 |
| Weight (t) | ~12 |
The MTM series incorporates world-leading medium-speed grinding technology, with a unique multi-cylinder classification system that improves powder fineness uniformity. The MTM100 model, equipped with 4 grinding rings, offers a capacity of 3–8 t/h—well within the target range. It is especially suited for materials with moderate abrasiveness like feldspar, and its energy consumption per ton is lower than many competitors.
| Parameter | Value |
|---|---|
| Ring Roll Number (pcs) | 4 |
| Max. Feed Size (mm) | <25 |
| Capacity (t/h) | 3–8 |
| Main Motor Power (kW) | 37 |
| Final Fineness (mm) | 1.6–0.045 |
| Weight (t) | ~9 |
Both mills can be equipped with optional classifiers, hoppers, and dust collectors to form a complete feldspar grinding plant. For Qatar’s climate, Zenith recommends adding a cooling system for the main bearing and an anti-corrosion coating on external surfaces.
A typical 3–5 tph feldspar grinding plant for feed additive production includes: raw material feeding (via vibrating feeder), crushing to <30 mm (if needed), grinding in the selected mill, classifying via a built-in classifier, and collecting the fine powder through a baghouse. The oversize material is returned to the mill for re-grinding. The entire system can be controlled from a central PLC panel, ensuring consistent quality and minimal manual intervention.
Zenith offers complete turnkey solutions, including site survey, foundation design, installation supervision, and training. In Qatar, where skilled labor may be limited, remote monitoring capabilities can be integrated to allow operators to adjust parameters from a control room.
Choosing Zenith’s MTW110Z or MTM100 mill for feldspar grinding brings several advantages:

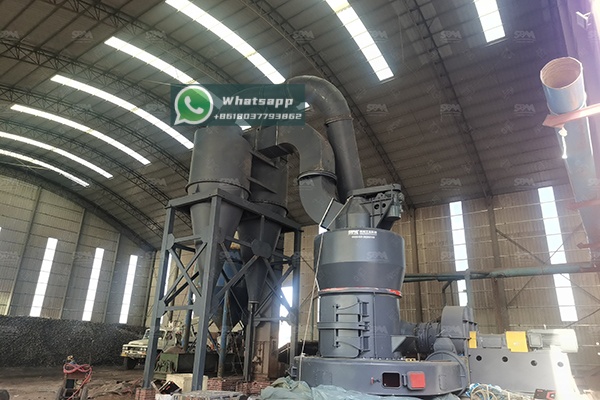

In 2022, Zenith supplied an MTW110Z mill to a feed additive plant in Dubai, processing both feldspar and dolomite at an average capacity of 4.2 tph. The client reported a 98% on-spec product rate and a 15% reduction in energy cost compared to their previous Raymond mill. The system has been running for over 18 months with only routine maintenance. This demonstrates the reliability of Zenith’s technology in a climate similar to Qatar.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with a proven track record in the ultra-fine powder grinding field. The company’s R&D team continuously improves mill designs to address real-world challenges like abrasion, heat, and variable feed moisture. With a global service network, spare parts can be delivered to Qatar within 48 hours. Additionally, Zenith provides free material testing to ensure the chosen mill delivers the exact required fineness and capacity.
For the specific application of feldspar grinding for animal feed additive at 3–5 tph, either the MTW110Z or MTM100 will provide outstanding performance. The decision can be based on available space (MTW is taller but more compact in footprint) and power preferences (MTM has lower main motor power). Zenit’s team is ready to assist with a detailed proposal.
Investing in a efficient and durable feldspar grinding mill is essential for Qatar’s feed industry to ensure high-quality, consistent mineral additives. Zenith’s MTW110Z Trapezium Grinding Mill and MTM100 Medium-Speed Grinding Mill both meet the 3–5 tph requirement with superior energy efficiency, robust construction, and precise fineness control. By partnering with Shanghai Zenith, Qatari feed producers can secure a reliable, long-term solution that supports both profitability and food security.
