Feldspar, one of the most abundant minerals on Earth, plays a vital role in various industries such as ceramics, glassmaking, and coatings. In particular, feldspar is increasingly used as a paint filler due to its ability to enhance the durability, brightness, and smooth finish of paints. For the paint and coatings industry in Vietnam, the demand for fine feldspar powder has been expanding rapidly, driven by the country’s booming construction and infrastructure sectors.
To meet the need for high-quality feldspar powder used in paint fillers, a suitable grinding solution is essential. Feldspar grinding processes typically require consistent particle size distribution, energy efficiency, and low operational costs. Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of industrial grinding equipment in China, provides advanced solutions designed to achieve these goals efficiently and sustainably.
Feldspar is widely used as a functional filler in paint production due to its chemical inertness, abrasion resistance, and ability to improve paint film properties. The specific advantages of feldspar in paint applications include:
In the Vietnamese paint industry, which continues to experience over 8% annual growth, the use of locally processed feldspar from quarries in central and northern provinces has become common. However, achieving the required fineness and particle distribution—often between 325 and 600 mesh—requires reliable and efficient grinding systems.
When processing feldspar for paint fillers, a 1–3 tons per hour (TPH) grinding line is a common production setup for medium-scale enterprises. Such capacity ensures balance between cost and output, ideal for industrial paint production in Vietnam. The main requirements for feldspar grinding in this range include:
To meet these demands, Shanghai Zenith offers a range of mills suitable for feldspar grinding, including the MTW Trapezium Grinding Mill and the XZM Ultrafine Grinding Mill. Both milling systems are engineered for high efficiency and consistent performance under industrial conditions.
For companies targeting feldspar powder production in the 1–3 TPH range, Shanghai Zenith recommends the following equipment based on process requirements and energy efficiency considerations:

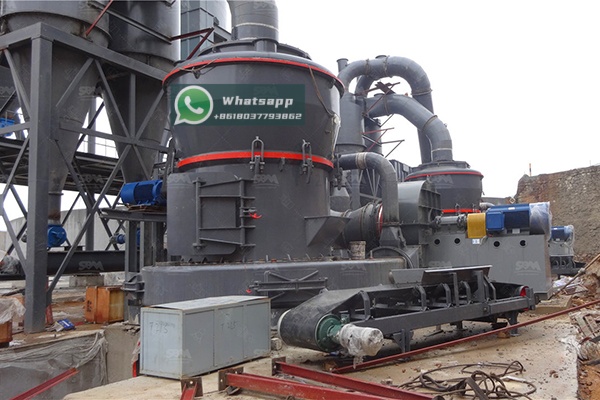

The MTW Trapezium Grinding Mill is a patented innovation featuring advanced European technology. It is designed for high production efficiency, precise fineness control, and superior energy savings. The MTW mill’s design combines the performance advantages of traditional Raymond and ball mills while offering greater reliability and automation.
Key technical parameters of the MTW series relevant to small to medium feldspar operations are presented below:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 | 55 |
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
For feldspar grinding lines with a requirement up to 3 TPH, the MTW110 or MTW110Z models are ideal choices. They provide energy-efficient operations with stable output, ensuring that the final product remains within precise paint filler specifications (around 45 microns or finer).

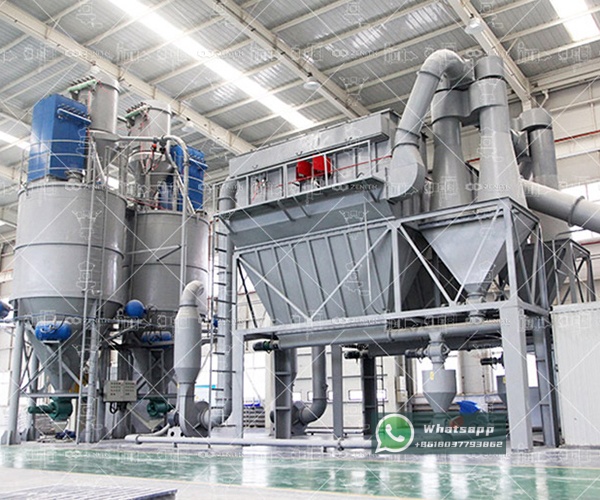

For paint filler applications requiring ultra-fine feldspar powders (325–2500 mesh), the XZM Ultrafine Grinding Mill from Shanghai Zenith offers an intelligent and compact solution. This mill is designed specifically for small to medium production lines needing high-end powder quality.
Its advanced multiple-ring roller design ensures lower wear rates and reduced energy consumption. The integrated classifier allows for strict particle size control, while the negative pressure system prevents dust spillage, keeping the plant environment clean.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
The XZM221 model, with an output suitable for 1–3 TPH feldspar production, can achieve very fine powder quality, perfectly matching the performance specifications required by the paint filler market.
A typical feldspar grinding line for paint filler production involves several key stages:
Shanghai Zenith Machinery Co., Ltd. has become a trusted name in mineral processing and powder grinding equipment worldwide. For Vietnamese paint filler producers, using Zenith’s grinding systems brings numerous benefits:
One of Zenith’s successful installations in Vietnam involves a feldspar grinding plant located in Binh Dinh Province. The customer required a system capable of producing 3 tons per hour of feldspar powder at 400 mesh fineness. After a thorough technical assessment, Zenith recommended the MTW110 Trapezium Grinding Mill.
The system has run continuously for over three years, with high stability and minimal maintenance downtime. The final product is used as a major component in paint filler production supplied to local construction companies and coating manufacturers. This project demonstrates the adaptability of Zenith equipment to local raw materials and environmental conditions.
As Vietnam’s paint and construction industries continue to grow, the demand for high-quality feldspar powder as a paint filler will increase. A well-designed feldspar grinding system is critical to achieving consistent particle size, high purity, and environmental compliance.
Shanghai Zenith Machinery Co., Ltd., with its decades of experience in powder grinding technology, offers the most efficient and cost-effective solutions. The MTW Trapezium Grinding Mill provides the versatility and power for mid-range production, while the XZM Ultrafine Grinding Mill ensures super-fine quality for premium paint applications. Together, these mills deliver reliability and performance that meet Vietnam’s evolving industrial needs.
By combining advanced milling technology, local manufacturing support, and sustainable design philosophy, Zenith continues to be the preferred choice for feldspar grinding lines in Southeast Asia.
