Diatomaceous Earth (DE), also known as diatomite, is a naturally occurring, soft, siliceous sedimentary rock that is easily crumbled into a fine white to off-white powder. It consists of the fossilized remains of diatoms, a type of hard-shelled algae. This unique composition gives DE a combination of valuable physical properties, including high porosity, low density, large surface area, and abrasiveness. These characteristics make it an indispensable material across numerous industries, with agriculture and filtration standing out as two of the most significant sectors.
In the agricultural sector, DE is widely used as a natural pesticide, soil amendment, and animal feed additive. Its microscopic, sharp edges physically damage the exoskeletons of insects, leading to dehydration and death, while being non-toxic to mammals. In filtration, DE’s intricate and porous structure makes it an excellent filter aid for purifying water, beer, wine, oils, and syrups, trapping suspended particles and clarifying liquids with exceptional efficiency.
The performance of DE in these applications is critically dependent on its particle size distribution and purity. Achieving the optimal fineness and consistency requires advanced grinding technology. This is where Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore grinding equipment with significant achievements in ultra-fine powder processing, provides tailored solutions.
The transformation of raw, mined diatomaceous earth into a high-value industrial product hinges on precise comminution. Different applications demand different particle specifications:
For filtration purposes, the goal is to achieve a specific particle size distribution that maximizes clarity and flow rate. The powder must be fine enough to trap minute impurities but not so fine that it compacts and impedes liquid flow. A typical target fineness for high-grade filter aids ranges from 10 to 50 microns. The grinding process must preserve the intricate, porous structure of the diatom fossils; excessive mechanical force can destroy these structures, rendering the DE less effective. A grinding mill that employs a combination of impact and gentle shearing forces is ideal for this application.
In agriculture, the primary mechanism of action is physical abrasion. The product must contain a sufficient proportion of particles with sharp, angular edges. While ultra-fine grinding is less critical than for filtration, a consistent and controlled particle size is still essential to ensure uniform coverage and effectiveness. The desired size often falls between 20 and 100 microns. The grinding system must be robust enough to handle the abrasive nature of the silica without causing excessive wear on the mill’s components.
Shanghai Zenith Machinery Co., Ltd. offers a comprehensive portfolio of grinding mills, each with unique characteristics suited to different stages and specifications of DE processing. Our expertise in ultra-fine powder grinding ensures that we can deliver the exact particle size and quality required for both agricultural and filtration markets.

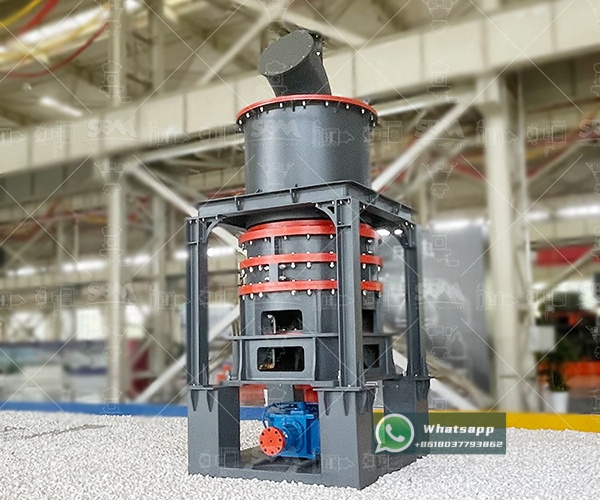

For producing high-purity, filtration-grade diatomaceous earth, the XZM Ultrafine Grinding Mill is an exemplary choice. This mill is specifically engineered for producing superfine powders and is capable of achieving an impressive fineness range of 325 to 2500 mesh. Its design minimizes over-grinding, which is crucial for preserving the delicate diatom structures. The high classification efficiency ensures a narrow particle size distribution, a key factor for consistent filter cake formation and optimal filtration performance.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM mill’s ability to handle moisture content below 6% makes it suitable for processing dried crude diatomite. Its robust construction and high productivity (up to 25 tons per hour for the XZM268 model) make it ideal for large-scale filter aid production plants.

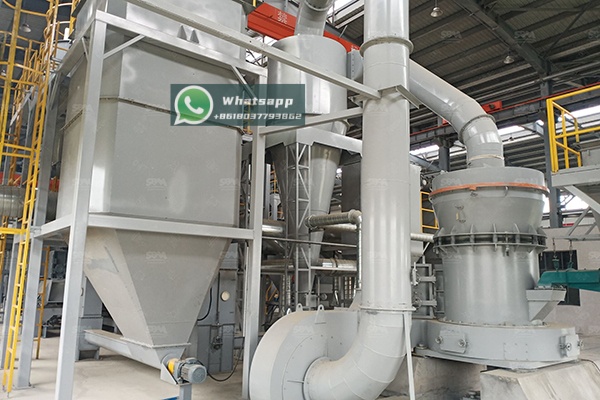

For high-capacity production of agricultural-grade diatomaceous earth, the MTW Trapezium Grinding Mill offers an unbeatable combination of efficiency, reliability, and cost-effectiveness. This mill, built with multiple patents, features a flexible grinding system that can be adjusted to produce powders in the 1.6-0.045mm (approximately 10-325 mesh) range, perfectly aligning with the requirements for insecticidal DE.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
The MTW mill is known for its long service life and eco-friendly design, featuring a high-efficiency pulse dust collector that ensures a clean working environment. Its high capacity, exemplified by the MTW215G model which can process up to 45 tons per hour, makes it the backbone of many large-scale agricultural DE processing facilities.
A successful diatomaceous earth grinding operation involves more than just the mill. Zenith provides integrated solutions that include:
Zenith’s team of engineers can design and supply this complete system, ensuring seamless integration and optimal performance from raw material intake to finished product packaging.
The versatility of diatomaceous earth in agriculture and filtration is undeniable, but unlocking its full potential requires precision grinding. The choice of grinding equipment directly impacts product efficacy, production costs, and operational efficiency. Shanghai Zenith Machinery Co., Ltd. stands as a reliable partner in this field, offering technologically advanced and application-specific solutions like the XZM Ultrafine Grinding Mill for high-purity filtration aids and the MTW Trapezium Grinding Mill for high-volume agricultural products.
By leveraging Zenith’s expertise and robust machinery, producers of diatomaceous earth can achieve superior product quality, enhance their market competitiveness, and meet the ever-evolving demands of these critical sectors. We invite you to consult with our technical experts to determine the optimal grinding solution for your specific diatomaceous earth processing needs.
