The sanitary ware and tableware industries demand exceptional quality and consistency in their raw materials, particularly feldspar, which serves as a crucial fluxing agent in ceramic formulations. High-purity feldspar with precisely controlled particle size distribution is essential for achieving the desired vitrification, mechanical strength, translucency, and surface finish in final products ranging from bathroom fixtures to fine porcelain dinnerware. This article explores the technical requirements for feldspar processing in these demanding applications and examines advanced grinding solutions that ensure optimal performance.
Feldspar, comprising a group of aluminum silicate minerals containing sodium, potassium, or calcium, performs multiple vital functions in ceramic manufacturing. As a flux, it lowers the melting temperature of the ceramic body, promoting vitrification at economically viable firing temperatures. This process creates the glassy phase that binds the quartz and clay particles together, resulting in a dense, strong, and non-porous final product. For sanitary ware and tableware, where hygiene and durability are paramount, complete vitrification is non-negotiable.
The quality of feldspar directly impacts several critical product characteristics:
The sanitary ware and tableware industries impose stringent specifications on feldspar powder quality. Typical requirements include:
Meeting these specifications requires advanced grinding technology capable of precise particle size control, minimal contamination, and energy-efficient operation. Traditional grinding methods often fall short in consistency, contamination control, or operational efficiency.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made significant achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers several solutions ideally suited for high-grade feldspar processing.

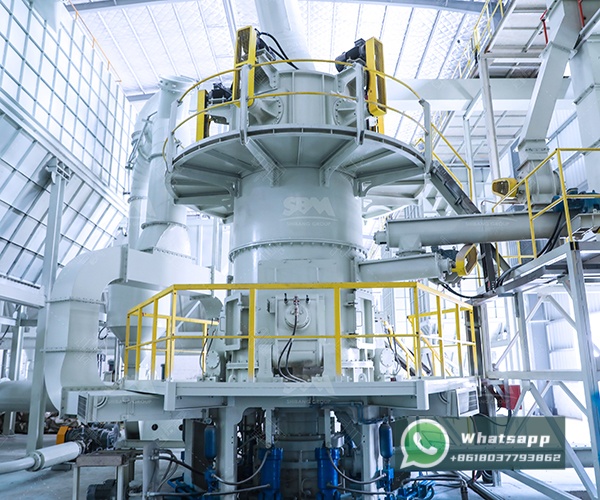

For sanitary ware and tableware manufacturers requiring the highest quality feldspar powder, the LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This advanced system integrates grinding, drying, classifying, and transportation in a compact footprint while delivering exceptional product quality with high content of end-fines and intelligent control for easier maintenance.
The LUM series is particularly well-suited for feldspar processing due to:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For operations requiring flexibility across different feldspar types and final product specifications, the XZM Ultrafine Grinding Mill offers outstanding performance. Widely used for superfine powder production, this mill is suitable for grinding soft or medium-hard materials with moisture content below 6%, achieving output fineness of 325-2500 mesh.
The XZM series provides ceramic manufacturers with:
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
Beyond equipment selection, successful feldspar processing requires careful optimization of operational parameters. Key considerations include:
Shanghai Zenith’s grinding systems incorporate advanced control technologies that automatically adjust these parameters, ensuring consistent product quality despite variations in raw material characteristics.
Modern feldspar grinding operations must balance product quality with economic viability and environmental responsibility. Zenith’s grinding solutions address these competing demands through:
The pursuit of excellence in sanitary ware and tableware manufacturing begins with superior raw material preparation. High-grade feldspar grinding is not merely a process step but a critical determinant of final product quality, manufacturing efficiency, and brand reputation. By leveraging advanced grinding technologies such as Shanghai Zenith’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill, ceramic manufacturers can achieve the precise particle control, chemical purity, and batch consistency required for premium applications.
As consumer expectations continue to rise and global competition intensifies, investing in state-of-the-art grinding technology represents a strategic imperative for forward-thinking ceramic producers. The combination of technical excellence, operational efficiency, and environmental responsibility embodied in modern grinding systems provides a solid foundation for success in the demanding sanitary ware and tableware markets.
