Kaolin, also known as china clay, is a crucial industrial mineral extensively used in the production of glass, ceramics, paper, rubber, and paints. In the glass-making industry, kaolin plays a significant role as a raw material for improving the thermal stability, brightness, and chemical resistance of the final product. In South Africa, as the demand for high-quality glass continues to rise, the need for fine kaolin grinding solutions becomes increasingly important. Producing kaolin with a fineness of 200 mesh or finer ensures better dispersion in the glass batch and improved end-product quality. This article explores the technical requirements, process design, and equipment recommendations for kaolin grinding for glass making in South Africa, featuring advanced grinding solutions from Shanghai Zenith Machinery Co., Ltd..
South Africa’s glass manufacturing industry has seen steady growth over the past decade due to rising urbanization, construction activities, and packaging demand. Kaolin serves as a vital raw material in this process because it enhances the refractoriness and stability of the final glass products. The ideal particle size for kaolin used in glass manufacturing typically ranges around 200 mesh, where the mineral’s characteristics contribute to viscosity control and improved transparency in the melt.
Grinding kaolin to this precise size requires advanced milling technology that can achieve fine, uniform particle size distribution while maintaining high throughput and energy efficiency. As such, choosing the right grinding mill is critical for cost-effective production.
Grinding kaolin for glass production in South Africa poses several challenges:
With decades of experience and innovation in powder grinding technology, Shanghai Zenith Machinery Co., Ltd. has established itself as a global leader in the field of grinding equipment manufacturing. For kaolin grinding to 200 mesh used in glass production, two recommended solutions are ideal: the MTW Trapezium Grinding Mill and the XZM Ultrafine Grinding Mill.

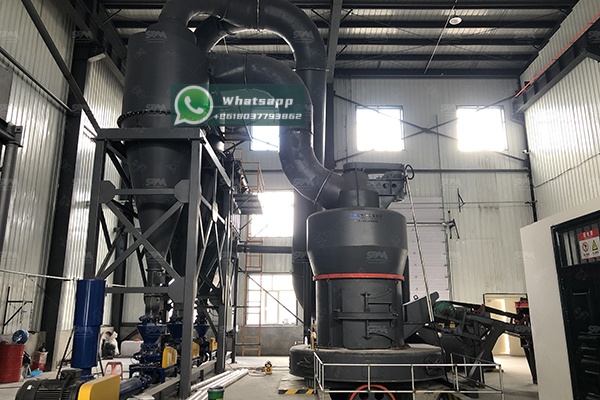

The MTW Trapezium Grinding Mill offers a perfect balance between high production capacity and precise final product fineness. It integrates advanced European technology, featuring a bevel gear overall drive, internal thin oil lubrication system, and curved blade design.
This mill is especially suited for medium-fine grinding, achieving stable output and uniform 200 mesh fineness. It is ideal for large-scale kaolin processing plants targeting the glass and ceramics industries in South Africa.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
The MTW series stands out for its low operational cost and eco-friendly design, making it suitable for South Africa’s energy-conscious industry. For kaolin grinding, it ensures a steady output within the 200 mesh range, which is perfect for glass production consistency.
For finer control or when ultra-pure kaolin is needed for specialty glass applications, the XZM Ultrafine Grinding Mill is recommended. It can achieve particle sizes ranging from 325 to 2500 mesh and is particularly useful when a portion of the glass batch requires extremely fine and uniform material distribution.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM series provides extremely fine output with high throughput and reduced energy consumption. Its design incorporates efficient dust-collection systems, ensuring compliance with modern environmental standards. In glass manufacturing, consistent particle size control translates to improved glass clarity and reduced defects.
A typical process flow for kaolin grinding for glass-making purposes includes several well-defined stages:
The production of 200 mesh kaolin powder for glass manufacturing in South Africa demands reliable, efficient, and environmentally responsible grinding solutions. Shanghai Zenith Machinery Co., Ltd., as a leading supplier of industrial grinding equipment, provides comprehensive solutions through its MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill. Both systems deliver precision, energy efficiency, and long-term operational reliability, enabling local glass producers to maintain superior quality standards and cost competitiveness.
With Zenith’s advanced equipment and technical support, South African glass manufacturers can confidently enhance production efficiency, ensure product consistency, and contribute to the sustainable growth of the industry.
