Kaolin, also known as china clay, is one of the most important industrial minerals used in the production of ceramics, tiles, paper, and various chemical products. In Bangladesh, the tile industry has seen consistent growth due to rising construction demand, urbanization, and rapid infrastructure development. The quality of tiles depends significantly on the fineness and purity of kaolin powder used during production. A standard requirement for tile manufacturing is to grind kaolin into fine particles around 150 mesh. Therefore, choosing a suitable grinding mill plays a crucial role in achieving the desired product quality and productivity.
Shanghai Zenith Machinery Co., Ltd., an outstanding manufacturer of ore grinding equipment in China, offers several advanced solutions for kaolin grinding. The company has made remarkable progress in the field of ultra-fine powder processing and continues to provide high-quality, energy-efficient, and environmentally friendly milling equipment.

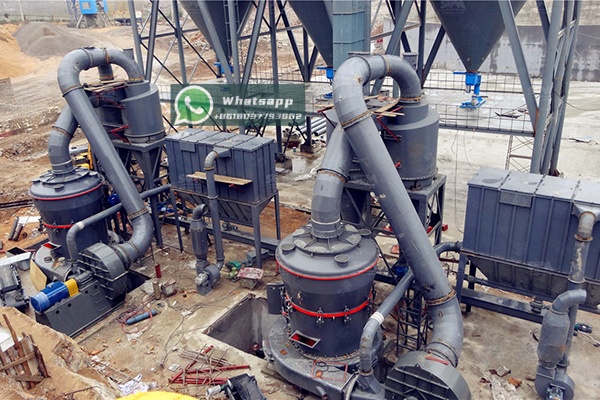

In tile production, kaolin functions as a key raw material that affects color, texture, and mechanical strength after firing. The raw kaolin extracted locally or imported into Bangladesh typically contains impurities such as quartz and iron oxides, which must be removed and refined. This refining process involves grinding, classification, and sometimes bleaching to achieve fine and uniform particle sizes. A consistent 150-mesh kaolin feed ensures optimal bonding, sintering, and surface smoothness of ceramic tiles.
Proper grinding not only improves the quality of end products but also reduces energy consumption in subsequent heating and sintering processes. Therefore, a high-performance grinding system with precise control over final powder fineness is essential for tile manufacturers seeking to reduce costs and improve yield efficiency.
Several types of grinding mills can be employed for kaolin preparation, including Raymond mills, ball mills, vertical mills, and ultra-fine mills. However, modern tile production often requires mills that can produce fine and consistent powder, ensure dust-free operation, and maintain low operational costs. In this context, the vertical and trapezium grinding mills from Shanghai Zenith Machinery Co., Ltd. provide reliable, high-capacity, and environmentally friendly solutions.
For achieving a product quality of around 150 mesh suitable for tile production in Bangladesh, Shanghai Zenith offers multiple product solutions. Among them, the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill stand out as ideal models due to their efficiency, precision, and flexibility in handling kaolin materials.

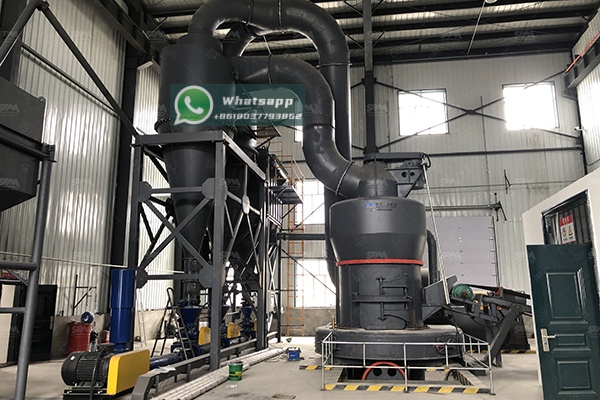

The MTW series is a modern European-design mill that combines advanced technology with traditional milling efficiency. It is ideal for grinding kaolin to 150 mesh with excellent stability and low energy consumption. Its multi-patent design ensures uniform fineness while maintaining structural integrity and minimal maintenance requirements.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
The MTW Trapezium Grinding Mill is equipped with an efficient classifier system and an upgraded blade design, allowing superior powder separation and air circulation. The result is consistent production of kaolin particles suitable for tile glazing and base material formulation. In addition, the mill’s advanced sealing design minimizes dust emission, ensuring a clean production environment that complies with environmental standards in Bangladesh.
For large-scale tile manufacturing facilities that require integrated drying, grinding, and fine classification, the LM Vertical Grinding Mill presents an ideal option. It combines five functions—crushing, grinding, powder selection, drying, and material transport—within one framework. This integrated design saves operational space and energy, which is especially advantageous in densely populated industrial zones such as Dhaka and Chittagong.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
Using the LM mill enables Bangladesh tile manufacturers to improve production flexibility. The vertical mill’s ability to dry materials directly with hot air greatly reduces the need for additional equipment. Its high automation level ensures consistent 150-mesh output quality suitable for floor and wall tile applications. Moreover, the vertical roller grinding mechanism offers stable product composition and improved particle smoothness, vital for the aesthetic finish of final ceramic products.

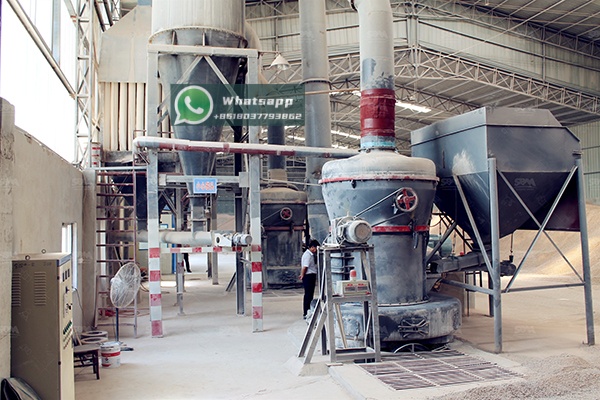

Consider a ceramic manufacturing plant located in Gazipur, Bangladesh, producing 20,000 square meters of floor tiles per day. The plant initially relied on traditional ball mills for kaolin preparation but faced issues like high energy usage and inconsistent particle size. After upgrading to the MTW138Z Trapezium Grinding Mill, energy consumption dropped by approximately 25%, and the kaolin powder’s particle uniformity improved significantly. This change led to enhanced tile surface glossiness and fewer firing defects—an improvement that contributed to higher profitability while aligning with eco-friendly industry practices.
The demand for sustainable construction materials in Bangladesh continues to rise, creating new opportunities for ceramic and tile producers. To remain competitive, adopting advanced milling solutions like those from Shanghai Zenith Machinery Co., Ltd. becomes essential. Whether operating on a medium or large scale, utilizing efficient mills such as the MTW or LM series will yield measurable improvements in production stability, energy efficiency, and environmental performance.
High-quality kaolin grinding is a cornerstone of producing superior ceramic tiles in Bangladesh. Achieving the ideal 150-mesh fineness enhances both the physical strength and aesthetic qualities of tiles. With the reliable solutions provided by Shanghai Zenith Machinery Co., Ltd.—particularly the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill—manufacturers can increase productivity, reduce operational costs, and ensure consistent quality in their products. Through innovative engineering, Zenith continues to support the modernization of the tile manufacturing industry, contributing to a more sustainable and efficient industrial future for Bangladesh.
