In Canada’s expanding oil and gas industry, drilling operations demand high-quality drilling muds to ensure smooth wellbore stability, effective lubrication, and optimal cutting removal. One of the key components in the formulation of drilling fluids is finely ground limestone (calcium carbonate), which serves not only as a weighting and bridging agent but also as a cost-effective and environmentally friendly additive. The quality of this limestone powder strongly depends on the grinding process, equipment selection, and control of particle size distribution. For medium-capacity production requirements in the range of 5–10 tons per hour (TPH), selecting the right limestone grinding mill becomes critical for maintaining drilling mud consistency and performance.
This article explores the application of limestone grinding mills in drilling mud manufacturing in the Canadian context and highlights high-performance grinding equipment from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of industrial grinding mills with decades of experience in ore and powder processing technology.
Limestone, composed primarily of calcium carbonate (CaCO₃), plays a crucial role in drilling mud systems. When properly ground to a fine powder, it helps to control mud density, minimize fluid loss, and prevent formation damage. The particle size of the ground limestone determines its behavior within the drilling fluid: larger particles act as bridging materials, while ultrafine powders aid in forming impermeable filter cakes.
For Canadian drilling sites, which operate in diverse geological settings such as Alberta’s oil sands or Newfoundland’s offshore rigs, the specification of limestone powder typically falls within 325 mesh or finer. This calls for precision grinding systems capable of producing uniform particle sizes while minimizing energy consumption and operational downtime. The target production capacity of 5–10 TPH fits ideally within the capabilities of modern medium-scale industrial mills.
When selecting grinding equipment for limestone used in drilling mud applications, several key factors must be considered:
Shanghai Zenith Machinery Co., Ltd. provides various models suitable for the Canadian drilling mud market demand, including the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. These mills are engineered to deliver stable performance, high precision, and efficient material handling, fitting well into 5–10 TPH limestone grinding applications.

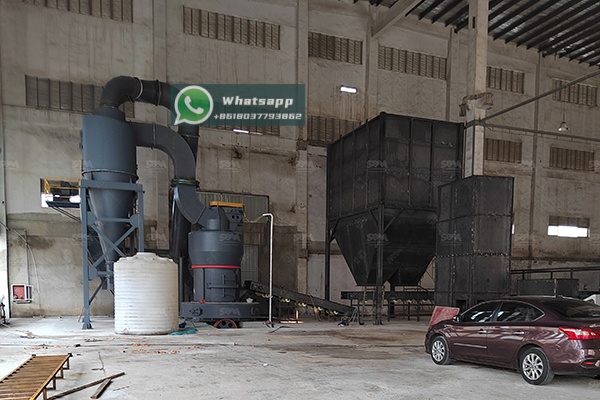

The MTW Trapezium Grinding Mill from Shanghai Zenith Machinery Co., Ltd. has earned a strong reputation for its advanced design, long service life, and ability to handle the rigorous requirements of limestone grinding for drilling mud production. The mill utilizes European technology and incorporates a bevel gear overall drive, internal thin oil lubrication system, and arc air channel. These innovations enhance efficiency and reduce maintenance needs.
For production outputs in the range of 5–10 TPH, models such as MTW110Z and MTW138Z are ideal. These units combine efficient grinding with low noise and environmental compliance, making them particularly suitable for Canadian industrial standards.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
The MTW mill’s unique trapezium structure ensures better contact between the rollers and the grinding ring, producing uniform and fine limestone powders perfect for drilling fluids. In addition, its efficient dust collector system supports clean and environmentally friendly operations—an important factor for Canadian facilities operating under strict sustainability regulations.

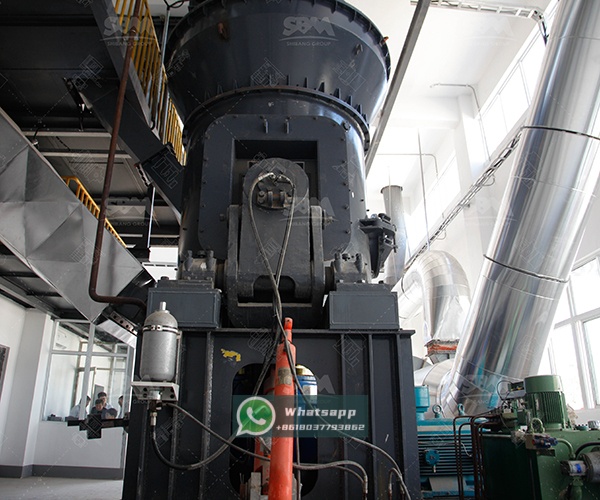

The LM Vertical Grinding Mill represents a new generation of integrated grinding systems that combine crushing, drying, milling, classifying, and material transport into one compact unit. This design allows efficient handling of moisture variations often found in Canadian limestone resources. For moderate capacities of 5–10 TPH, the LM130K model is a well-balanced option offering stability, fine product control, and lower energy consumption.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
The LM Vertical Mill has proven advantages such as low vibration, minimal dust emission, and automated control systems for consistent quality production. The mill’s vertical structure and integrated design make it suitable for installation in compact Canadian plant spaces. Its ability to operate continuously under varying environmental conditions makes it an excellent choice for limestone grinding in drilling mud production lines.
For Canadian limestone grinding operations supplying drilling material, sustainability and energy efficiency are key. The combination of high mechanical efficiency and intelligent control systems in Zenith mills allows operators to reduce energy consumption by up to 20% compared to conventional ball mills. In addition, modern dust extraction and sealing technologies significantly minimize airborne particulate emissions, ensuring compliance with Canada’s environmental protection policies.
Operational safety is another essential factor. Zenith mills come with advanced monitoring systems for temperature, vibration, and load control. These built-in diagnostics enhance system reliability and reduce downtime. Furthermore, by adopting automated feeding and discharge systems, these mills can maintain steady-state operation crucial for consistent quality in drilling mud preparation.
A mid-sized drilling fluid supplier located in Alberta recently installed an MTW110Z grinding system supplied by Shanghai Zenith Machinery Co., Ltd. The project aimed to produce 325-mesh limestone for use in water-based drilling fluids. With a production line capacity of 8 TPH, the system demonstrated outstanding stability and energy-saving performance.
After six months of operation, the customer reported a 30% reduction in maintenance frequency and more consistent particle size distribution compared to its previous traditional Raymond mill line. Moreover, the compact design reduced the plant’s footprint, allowing for easier integration with existing slurry preparation units.
The demand for high-purity, finely ground limestone in Canada’s drilling mud production is steadily increasing. As the industry seeks more efficient and sustainable production methods, selecting the right grinding equipment becomes the foundation of operational success. For production capacities in the 5–10 TPH range, both the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. provide advanced, reliable, and energy-efficient solutions.
By adopting Zenith’s state-of-the-art technology, drilling fluid manufacturers in Canada can achieve higher productivity, greater control over particle fineness, and improved environmental performance—all of which contribute to safer, more efficient, and more sustainable drilling operations across Canada’s energy landscape.
Shanghai Zenith Machinery Co., Ltd. continues to be a trusted partner in the field of industrial powder processing, offering global clients cutting-edge solutions and comprehensive after-sales support. Whether you are upgrading an existing production line or designing a new facility, Zenith’s limestone grinding systems provide the performance, reliability, and return on investment that meet the standards of today’s drilling fluid industry.
