With the rapid development of the glass manufacturing industry in Bangladesh, the demand for high-quality raw materials such as finely ground limestone continues to grow steadily. Limestone, mainly composed of calcium carbonate (CaCO3), is a vital ingredient in glass making, serving as a fluxing agent that reduces the melting temperature of silica and enhances the durability and chemical resistance of glass products.
In order to achieve optimal glass quality, the limestone used must be ground into fine and consistent powders. For medium-scale production capacities in the range of 20–30 tons per hour (TPH), it is crucial to select the right grinding equipment that guarantees energy efficiency, stability, and consistent product fineness. Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore grinding equipment in China, provides an extensive portfolio of grinding mills that are perfectly suited for limestone powder preparation in glass applications.
In the glass industry, raw materials such as silica sand, soda ash, and limestone are mixed in precise ratios before being melted at high temperatures. Limestone adds calcium oxide to the glass, which improves chemical durability and hardness while reducing solubility. To ensure uniform chemical reactions during melting, limestone must be ground to a fine particle size, typically between 45 µm and 150 µm.
Bangladesh’s growing glass and construction sectors are driving demand for local limestone resources. Efficient grinding technology not only improves product quality but also minimizes production costs and energy consumption—both key considerations for modern glass manufacturers.
For 20–30 TPH limestone grinding projects in Bangladesh, Shanghai Zenith Machinery Co., Ltd. offers several high-performance grinding mills. Among them, the MTW Trapezium Grinding Mill stands out as an optimal choice. It delivers enhanced capacity, stable operation, and superior energy efficiency, making it ideal for continuous industrial use in the glass-making sector.

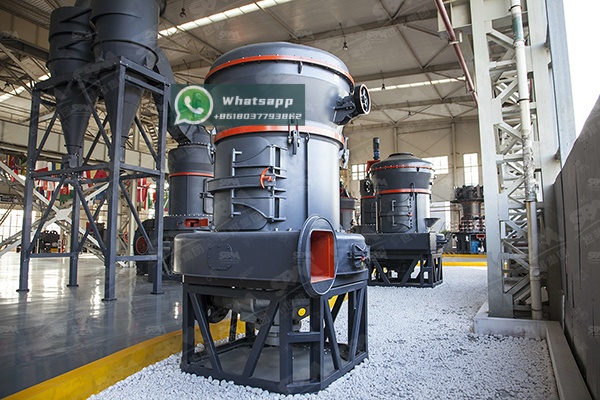

The MTW Trapezium Grinding Mill integrates advanced European technology with Zenith’s engineering expertise. It features an efficient powder collector, bevel gear transmission, and a high-density frequency-controlled classifier, ensuring consistent output and reduced production costs. The machine is designed to process non-flammable, non-explosive materials such as limestone, barite, dolomite, and calcite with Mohs hardness below 9.3 and humidity under 6%.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
As shown above, the MTW175G model achieves a production capacity range that perfectly fits the 20–30 TPH requirement, especially when combined with proper material control and optimized system configuration.

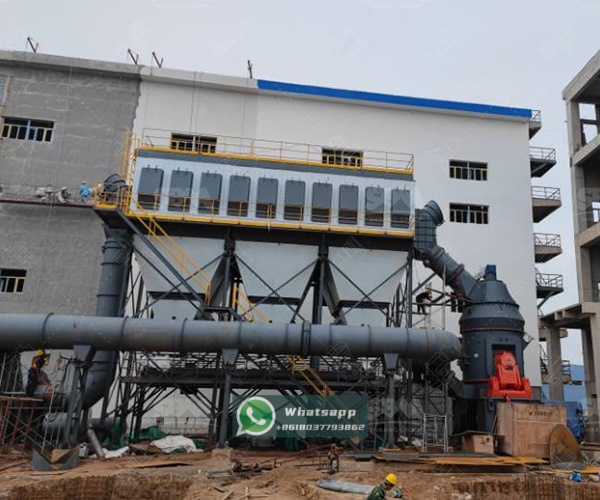

For customers seeking a multifunctional and eco-friendly solution, the LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. is another excellent choice. This mill integrates crushing, drying, grinding, powder selection, and material conveying functions into a single compact system. Its vertical roller design ensures a smaller footprint, high grinding efficiency, and reduced power consumption compared to traditional ball mills.
In glass production lines, the LM Vertical Grinding Mill can directly process raw limestone to the required fineness with minimal dust emissions, supporting green and energy-saving production strategies that align with Bangladesh’s industrial sustainability goals.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
Depending on the feed characteristics and desired product fineness, the LM130K model is ideally suited for limestone grinding at around 20–30 TPH, providing stable output and easy maintenance.
A typical 20–30 TPH limestone grinding system designed for glass manufacturing in Bangladesh generally includes the following key components:
The entire system can be configured to operate continuously, delivering stable performance over long shifts with minimal maintenance requirements—ideal for industrial glass plants running high-volume production lines.
Shanghai Zenith Machinery Co., Ltd.’s grinding mills offer numerous advantages for limestone processing in glass making applications:
In practical projects across Southeast Asia, including Bangladesh, Zenith’s limestone grinding systems have been applied successfully in glass material preparation lines. Typical installations using MTW175G or LM130K models achieve steady production capacities within the 20–30 TPH range, meeting stringent product fineness and quality requirements demanded by glass producers. Clients report lower energy costs, reduced downtime, and improved final glass transparency thanks to the consistency of the ground limestone powders.
The choice of grinding equipment has a direct impact on glass quality, production efficiency, and plant sustainability. For Bangladesh’s flourishing glass manufacturing industry, both the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. represent reliable, high-performance solutions tailored for 20–30 TPH limestone grinding operations. Combining cutting-edge design, European technology, and over two decades of engineering experience, Zenith continues to support industrial customers worldwide by providing advanced, efficient, and environmentally responsible grinding technologies.
For more detailed consultation and customized system design, please contact Shanghai Zenith Machinery Co., Ltd. — Your trusted partner in powder grinding and material processing solutions.
