In the industrial processing of minerals and ores, the efficiency of energy transfer from the motor to the material being ground represents one of the most critical factors in operational profitability and environmental sustainability. Every kilowatt-hour of electrical energy consumed by a grinding mill must be translated as effectively as possible into the size reduction of the target material. Inefficiencies in this process not only lead to escalated operational costs but also contribute to unnecessary carbon emissions and equipment wear. This article delves into the engineering principles and technological innovations that maximize this energy transfer, with a specific focus on advanced grinding equipment.
The primary goal of comminution is to create new surface area by breaking particles. However, the process is notoriously inefficient. A significant portion of the input energy is lost as heat, sound, and vibration, with only a small fraction—often estimated to be between 1% and 10%—actually used for fracture. The key to optimization lies in minimizing these parasitic losses and directing a maximum force towards creating cracks and propagating them through the particles.
Several factors influence this efficiency:
Modern grinding mills are engineered with a holistic approach to energy efficiency. This involves optimizing every component in the power transmission chain.
Direct drive systems or highly efficient gearboxes reduce mechanical losses between the motor and the grinding table or cylinder. The use of large-diameter, low-friction bearings and precision-machined components ensures that rotational force is transmitted with minimal dissipation.
An often-overlooked aspect of energy efficiency is the internal material handling. A well-designed mill ensures that material is presented optimally to the grinding elements and that finished product is removed promptly. Internal classification systems prevent over-grinding, where energy is wasted on material that has already reached the target fineness. This is a core strength of integrated vertical mills.
Modern mills are equipped with sophisticated control systems that monitor power consumption, pressure, temperature, and feed rate in real-time. By maintaining optimal operational parameters, these systems prevent energy spikes and ensure the mill operates at its peak efficiency point consistently.

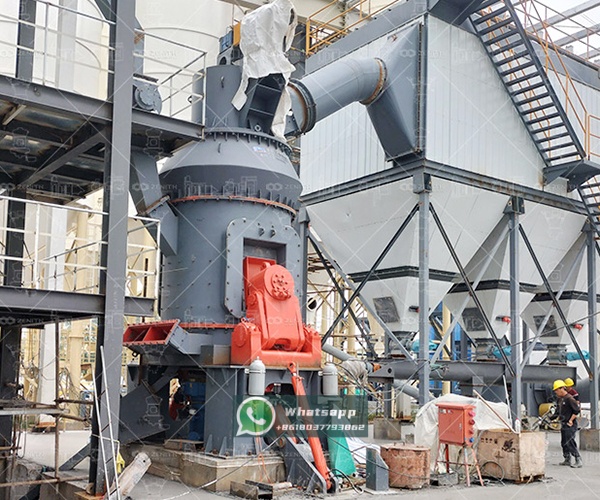

As a leader in the field of industrial powder grinding, Shanghai Zenith Machinery Co., Ltd. has engineered solutions that directly address the challenge of energy transfer. A prime example is the LM Vertical Grinding Mill. This mill exemplifies efficiency by integrating five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact unit. This integrated design eliminates the need for external conveyors and elevators, reducing the overall plant power load.
The vertical roller design applies material to a rotating table where it is ground under rollers. The direct transmission of force and the use of a high-efficiency separator that returns coarse material for further grinding ensure that motor energy is dedicated almost exclusively to the comminution process. The following table outlines the technical parameters of the LM Vertical Grinding Mill series, demonstrating its capacity for high-throughput, energy-efficient production.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications requiring ultrafine powders, the energy transfer challenge is even greater due to the increased surface energy required. Zenith’s LUM Ultrafine Vertical Mill is specifically designed for this demanding task. It builds upon the vertical mill concept with enhanced features for finer grinding. Its intelligent control system dynamically adjusts grinding pressure and classifier speed to match the material characteristics, ensuring that the motor’s power is used precisely where it is needed, without waste.
The LUM mill’s design minimizes the energy lost to internal friction and heat, directing a higher percentage of power to particle-size reduction. Its parameters for high-efficiency ultrafine production are shown below.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
Maximizing energy transfer from motor to material is not the result of a single innovation but a synergy of intelligent mechanical design, advanced process control, and proper operational practice. Manufacturers like Shanghai Zenith Machinery are at the forefront of this endeavor, developing equipment such as the LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill that are inherently designed for high-efficiency energy utilization. By choosing machinery engineered with these principles and operating it within its optimized parameters, industries can achieve significant reductions in energy consumption, lower their operational costs, and minimize their environmental footprint, all while maintaining high-quality product output.
