In modern industrial processing, the demand for ultra-fine powders has grown exponentially across various sectors including pharmaceuticals, coatings, advanced materials, and electronics. Achieving consistent sub-5 micron particle sizes represents one of the most significant technical challenges in powder processing technology. This article explores the complexities of ultra-fine grinding and presents advanced solutions for overcoming these challenges.
Grinding materials to sub-5 micron levels involves overcoming several fundamental challenges. As particle size decreases, surface area increases exponentially, leading to greater surface energy and stronger inter-particle forces. This results in material agglomeration, reduced grinding efficiency, and increased energy consumption. Additionally, thermal sensitivity becomes a critical concern, as excessive heat generation during grinding can degrade material properties and cause unwanted chemical changes.
Traditional grinding equipment often reaches its limitations when attempting to achieve consistent sub-5 micron results. Conventional ball mills and Raymond mills typically struggle with efficiency loss, excessive wear, and inconsistent particle size distribution at these fine levels. The transition from micron to sub-micron grinding requires specialized equipment designed specifically for these demanding applications.
Modern ultra-fine grinding technology has evolved significantly to address these challenges. Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. Our research and development focus on overcoming the specific technical barriers associated with sub-5 micron processing.
Two of our most advanced solutions for ultra-fine grinding applications are particularly noteworthy:

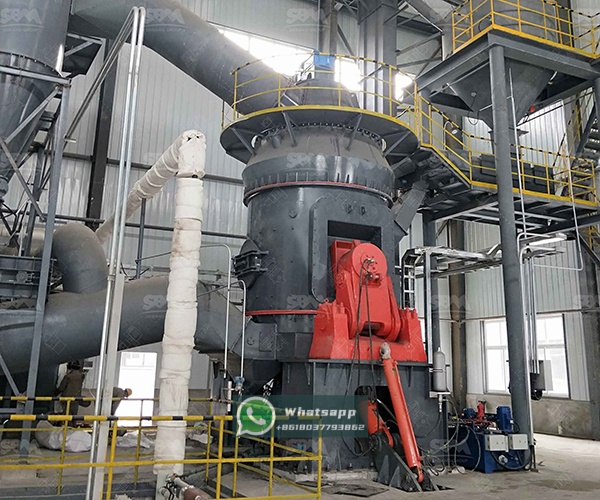

The LUM Ultrafine Vertical Mill represents the pinnacle of ultra-fine grinding technology. This innovative system integrates grinding, drying, classifying, and transportation functions into a single, compact unit. Its intelligent control system ensures optimal performance while minimizing operational complexity.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in producing products with high content of end-fines, achieving consistent D97 values as low as 5 microns. Its advanced classification system ensures tight particle size distribution, while the integrated drying capability handles materials with varying moisture content effectively.
For applications requiring even finer particle sizes, the XZM Ultrafine Grinding Mill offers exceptional performance. This mill is specifically designed for superfine powder production, capable of achieving output fineness ranging from 325 to 2500 mesh (approximately 45 to 5 microns).
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM mill’s versatility makes it suitable for grinding soft to medium-hard materials with moisture content below 6%. Its robust construction and efficient design ensure reliable operation even when processing challenging materials to sub-5 micron levels.
Several technological innovations are critical for successful sub-5 micron grinding:
Modern ultra-fine mills incorporate high-efficiency classifiers that can precisely separate particles in the sub-micron range. These systems use advanced air flow dynamics and centrifugal forces to ensure only properly sized particles pass through, while oversized particles are returned for further grinding.
Maintaining optimal temperature during grinding is crucial for preventing material degradation and minimizing agglomeration. Our mills incorporate integrated cooling systems and thermal management technologies that maintain consistent operating temperatures, preserving material properties throughout the grinding process.
At sub-micron levels, even minimal wear on grinding components can significantly impact product quality and consistency. We utilize advanced wear-resistant materials and coatings that maintain dimensional stability and grinding efficiency over extended operational periods.
Different materials present unique challenges when grinding to sub-5 micron levels. Hard materials require different approaches than soft or heat-sensitive materials. Our technical team works closely with clients to determine the optimal equipment configuration and operating parameters for each specific application.
For heat-sensitive materials, the LUM Ultrafine Vertical Mill’s integrated cooling and precise temperature control provide significant advantages. For high-volume production of consistent sub-micron powders, the XZM Ultrafine Grinding Mill offers superior throughput and energy efficiency.
While achieving sub-5 micron particle sizes is technically challenging, operational efficiency remains a critical consideration. Our ultra-fine grinding solutions are designed with energy efficiency as a primary focus. The integrated systems reduce overall power consumption while maintaining high throughput rates.
Maintenance requirements are significantly reduced through intelligent design and high-quality components. The modular construction of our mills allows for easy access to critical components, minimizing downtime during routine maintenance and reducing overall operating costs.
The demand for increasingly finer powders continues to drive innovation in grinding technology. We are continuously developing new approaches to overcome the physical limitations of traditional grinding methods. Research in areas such as cryogenic grinding, advanced classifier designs, and smart control systems promises to further push the boundaries of what’s possible in ultra-fine powder production.
Overcoming the challenge of grinding to sub-5 micron levels requires specialized equipment, advanced technology, and deep process understanding. Shanghai Zenith Machinery’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill represent cutting-edge solutions designed specifically for these demanding applications. With their advanced features, precise control capabilities, and proven performance, these mills provide reliable pathways to consistent sub-micron powder production across diverse industrial applications.
As industry demands continue to evolve toward finer particle sizes and tighter specifications, our commitment to innovation and excellence ensures that we remain at the forefront of ultra-fine grinding technology, providing our clients with the tools they need to succeed in competitive markets.
