With the rapid industrialization and urbanization in Bangladesh, the cement industry has become one of the country’s most critical sectors. The demand for high-quality cement with specific fineness characteristics has driven innovation in cement grinding and material preparation processes. One important additive in modern cement production is perlite—a versatile, lightweight, and porous volcanic glass used to enhance strength, durability, and insulation properties. To produce perlite particles suitable for cement blending, specialized grinding equipment is essential. This article focuses on the use of a perlite grinding mill capable of producing 80-mesh powder, highlighting its role in improving cement quality and efficiency in the Bangladeshi market.
Perlite is a natural siliceous volcanic mineral that expands significantly when heated. In cement production, perlite is often used as a pozzolanic material or filler due to its chemical stability and low density. When ground to an appropriate fineness, such as 80 mesh, it enhances the thermal insulation properties of cement, improves workability, and reduces the overall weight of cement-based materials. Furthermore, perlite can lower production costs by partially replacing clinker—a major source of CO₂ emissions in cement manufacturing.
The 80-mesh perlite particle size (approximately 180 microns) strikes an optimal balance between reactive surface area and process energy consumption. Finer grinding may improve reactivity but requires significantly higher power input, while coarser particles could lead to uneven dispersion and poor cement performance. Therefore, perlite ground to 80 mesh is ideal for cement blending operations in Bangladesh, where cost-effectiveness and consistent material quality are priorities.
Grinding perlite is not straightforward. Due to its high internal moisture and low hardness, perlite tends to absorb water and agglomerate during processing. The grinding system must thus be capable of handling soft, porous materials without excessive fines generation or loss of volatiles. Another challenge is achieving uniform particle size distribution to maintain consistent cement performance. Equipment selection becomes critical to meet these technical and economic demands.
Shanghai Zenith Machinery Co., Ltd. is one of China’s leading manufacturers of industrial powder grinding solutions. With decades of experience in the design, research, and production of grinding mills, Zenith has built a global reputation for quality and innovation. Our grinding machines are widely applied in mining, cement, chemical, and aggregate industries, delivering high efficiency, durability, and precision performance.
Zenith’s extensive product line includes the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Ball Mill. Each product is designed to handle different material characteristics, from coarse to ultrafine powders. For the specific requirement of perlite grinding to 80 mesh, two models stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

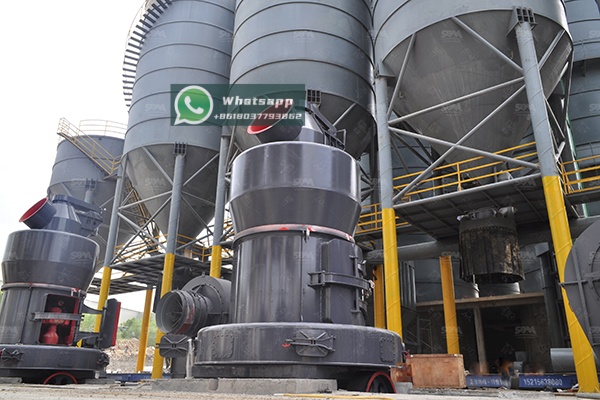

The MTW Trapezium Grinding Mill is an advanced equipment designed for high-efficiency powder production. It is highly suitable for materials like perlite that require precise control of particle size and moisture content. Its innovative bevel gear transmission reduces energy loss, while its air-controlled system ensures stable grinding pressure and consistent fineness.
This model is particularly effective for applications requiring product fineness between 45–90 microns (roughly equivalent to 80–325 mesh). The mill’s enclosed structure helps maintain a clean production environment—critical for cement additive production in Bangladesh’s humid climate.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
The MTW175G variant is highly recommended for mid-scale cement plants in Bangladesh that require a daily perlite processing output of 200–500 tons.

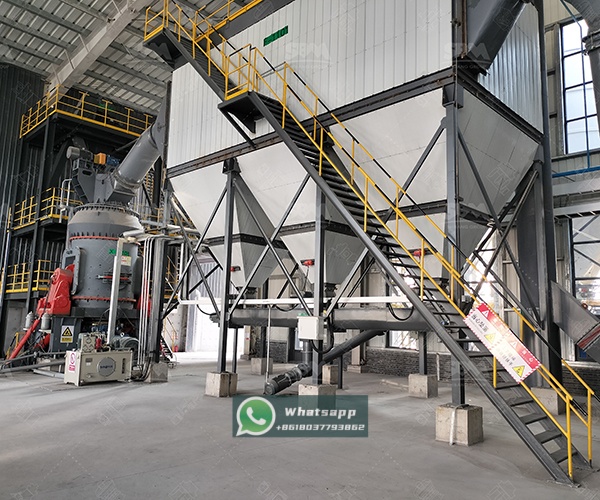

For large-scale, integrated cement facilities, the LM Vertical Grinding Mill from Zenith offers a more versatile and energy-efficient solution. It combines crushing, drying, grinding, classifying, and material transport functions in one compact system. This vertical design not only saves floor space but also improves drying capability, which is beneficial when processing perlite with variable moisture content.
The LM series also enables fine control of product fineness, allowing operators to adjust output from 40 to 170 microns. This makes it ideal for both perlite and other raw materials like limestone and clinker. Its sealed system prevents dust emissions, aligning with Bangladesh’s growing environmental regulations in the construction materials sector.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
For the cement industry in Bangladesh, the LM190K model offers a robust balance of capacity and particle uniformity, making it highly suited for continuous 80-mesh perlite production lines.
Integrating perlite grinding into a cement manufacturing line requires attention to both material handling and process optimization. Typically, raw perlite is first pre-crushed and dried before feeding into the grinding mill. The MTW or LM mill then reduces the material to 80 mesh, after which it is screened and pneumatically conveyed to blending silos. Efficient energy use and dust-free operation are key. Zenith’s equipment, with its advanced air circulation systems and high-efficiency classifiers, ensures that less than 1% of fine material escapes to exhaust systems—substantially reducing waste and improving yield.
Both the MTW and LM grinding systems from Shanghai Zenith can be equipped with fully automated control modules, enabling operators to monitor key process parameters in real-time. This real-time feedback loop enhances operational stability and reduces downtime, a crucial factor in Bangladesh’s competitive cement market where production continuity determines overall profitability.
Bangladesh’s cement plants are increasingly adopting modern grinding technologies to improve efficiency and comply with sustainability goals. In such facilities, perlite is introduced as a supplementary material to reduce clinker factor and improve the thermal and acoustic qualities of concrete. The use of Zenith’s advanced grinding mills allows producers to achieve consistent quality with lower energy consumption—an essential factor given Bangladesh’s high industrial energy costs.
The demand for lightweight, high-performance cement materials in Bangladesh continues to rise. To meet this demand, fine and uniform perlite grinding to 80 mesh has become essential. Equipped with cutting-edge technologies, Shanghai Zenith Machinery Co., Ltd. provides advanced grinding solutions capable of meeting both performance and sustainability requirements. Whether through the high-performance MTW Trapezium Grinding Mill or the energy-efficient LM Vertical Grinding Mill, Zenith’s solutions empower cement producers to elevate their production efficiency and product quality while minimizing operational costs.
For cement manufacturers in Bangladesh seeking to enhance their process efficiency and cement performance through improved perlite grinding, partnering with Shanghai Zenith Machinery Co., Ltd. offers a professional, reliable, and technologically advanced solution.
