The mining industry faces increasing challenges in processing low-grade ores efficiently and economically. As ore grades decline worldwide, the demand for advanced grinding technologies that can handle larger volumes of material while maintaining energy efficiency has become paramount. Vertical mill technology has emerged as a superior solution for grinding low-grade ores, offering significant advantages over traditional grinding methods.
Low-grade ores present unique processing challenges that require specialized grinding solutions. These materials typically contain lower concentrations of valuable minerals, necessitating the processing of larger volumes to achieve economic recovery rates. The increased throughput requirements place substantial demands on grinding equipment, making efficiency and reliability critical factors in operational success.
Traditional grinding methods, particularly ball mills, often struggle with the economic processing of low-grade ores due to their high energy consumption and limited efficiency in handling large volumes of material. The need for multiple processing stages and the associated capital and operating costs can make low-grade ore projects economically unviable when using conventional grinding technologies.
Vertical mills offer several distinct advantages for grinding low-grade ores. Their integrated design combines multiple processing functions—including crushing, grinding, drying, classification, and material transport—into a single, compact unit. This integration significantly reduces the footprint requirements and simplifies the overall processing circuit.
The vertical orientation of these mills provides natural advantages in material flow and grinding efficiency. Gravity assists in material transport through the mill, reducing energy requirements compared to horizontal mills where material must be lifted against gravity. Additionally, the grinding mechanism in vertical mills creates more efficient particle-to-particle contact, resulting in better energy utilization and reduced wear rates.
Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore grinding equipment in China, with significant achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, the company offers comprehensive solutions for processing low-grade ores efficiently and economically.

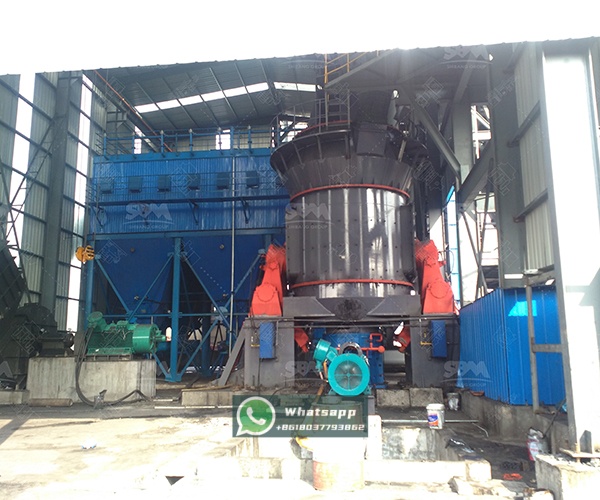

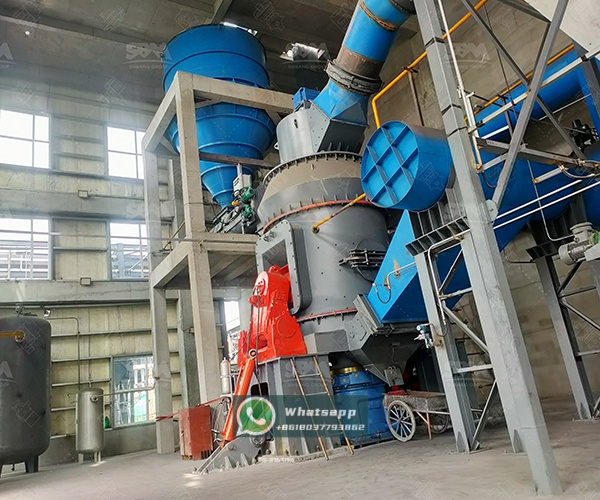

Among Zenith’s extensive product portfolio, the LM Vertical Grinding Mill series stands out as particularly suitable for low-grade ore applications. This advanced grinding system integrates five essential functions into a single machine, providing exceptional operational efficiency and reliability.
The LM Vertical Grinding Mill represents the pinnacle of grinding technology for low-grade ore processing. Its innovative design addresses the specific challenges of handling large volumes of material while maintaining precise control over product fineness and quality.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM series offers exceptional flexibility in processing various types of low-grade ores, from hard metallic ores to softer industrial minerals. The grinding mechanism ensures consistent product quality while minimizing overgrinding, a common issue with traditional ball mills that can lead to excessive energy consumption and reduced recovery rates.
For applications requiring ultra-fine grinding of low-grade ores, Shanghai Zenith offers the LUM Ultrafine Vertical Mill. This advanced system integrates grinding, drying, classifying, and transportation functions while occupying minimal space. The LUM series is specifically designed to produce products with high content of end-fines and features intelligent control for easier maintenance.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM Ultrafine Vertical Mill is particularly valuable for processing low-grade ores where liberation of valuable minerals requires ultra-fine grinding. The precise control over particle size distribution enables optimal recovery rates while maintaining energy efficiency, making it an economically viable solution for challenging ore types.
Vertical mill technology offers substantial energy savings compared to traditional grinding methods. The integrated drying capability allows processing of moist ores without requiring separate drying equipment, reducing both capital and operating costs. The efficient grinding mechanism typically consumes 30-50% less energy than conventional ball mills for the same throughput, a critical factor in the economic processing of low-grade ores.
Environmental considerations are increasingly important in mining operations, and vertical mills address these concerns through reduced energy consumption, lower noise levels, and minimal dust emissions. The compact design also reduces the overall environmental footprint of processing facilities, an important consideration in sensitive mining regions.
Vertical mills provide exceptional operational flexibility, allowing quick adjustments to changing ore characteristics and production requirements. The ability to control multiple parameters—including grinding pressure, classifier speed, and gas flow—enables operators to optimize performance for specific ore types and product specifications.
Maintenance requirements for vertical mills are significantly reduced compared to traditional grinding systems. The modular design allows for easy replacement of wear parts, and the accessibility of critical components minimizes downtime during maintenance operations. Advanced monitoring systems provide real-time data on equipment performance, enabling predictive maintenance and reducing unplanned shutdowns.
Numerous mining operations worldwide have successfully implemented vertical mill technology for processing low-grade ores. These installations have demonstrated consistent performance improvements, including increased throughput, reduced energy consumption, and improved product quality. The ability to handle variations in ore characteristics without significant operational adjustments has proven particularly valuable in operations processing multiple ore types or dealing with changing ore body characteristics.
Shanghai Zenith’s vertical mills have been deployed in various low-grade ore applications, from iron ore and copper porphyries to gold ores and industrial minerals. The consistent performance across these diverse applications underscores the versatility and reliability of vertical mill technology for challenging grinding applications.
The evolution of vertical mill technology continues, with ongoing research focused on further improving efficiency, reliability, and operational flexibility. Developments in wear-resistant materials, advanced control systems, and integrated process optimization are expected to enhance the performance of vertical mills in low-grade ore applications.
Digitalization and Industry 4.0 technologies are being integrated into vertical mill systems, enabling more sophisticated process control and optimization. These advancements will further improve the economic viability of processing low-grade ores, extending mine life and enabling the exploitation of mineral resources that were previously considered uneconomic.
Vertical mill technology represents a significant advancement in the processing of low-grade ores, offering substantial benefits in energy efficiency, operational flexibility, and economic viability. Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill provide comprehensive solutions for the specific challenges of low-grade ore processing, delivering reliable performance and optimal economic outcomes.
As the mining industry continues to face declining ore grades and increasing pressure to improve sustainability, vertical mill technology will play an increasingly important role in ensuring the economic viability of mineral resource development. The continued innovation in this field, exemplified by Shanghai Zenith’s advanced grinding solutions, promises to further enhance the capabilities and efficiency of low-grade ore processing in the years ahead.
