In recent years, the pet care industry in Oman has experienced significant growth, driven by rising pet ownership and increased awareness of hygiene and odor control. Cat litter, a staple product for feline owners, has evolved from simple clay-based materials to advanced formulations that offer superior absorption, clumping, and odor neutralization. Among the key raw materials used in premium cat litter is petroleum coke – a byproduct of oil refining that, when ground to ultra-fine powders, exhibits excellent porosity and adsorption properties. Specifically, petroleum coke ground to 600 mesh (approximately 23 microns) is highly sought after for its ability to trap moisture and odors effectively while being lightweight and dust-free.
Oman, as a major oil and gas producer, has abundant access to petroleum coke. However, the challenge lies in transforming this raw material into a value-added product suitable for the cat litter market. The grinding process must be efficient, energy-saving, and capable of consistently producing a fine powder with a narrow particle size distribution. This is where Shanghai Zenith Machinery Co., Ltd. steps in as a trusted partner, offering state-of-the-art grinding mills engineered for ultra-fine powder processing.
Petroleum coke (petcoke) is a carbon-rich solid derived from coker units in oil refineries. When ground to a fine powder, it becomes an ideal base material for cat litter due to several reasons:
However, achieving 600 mesh (D97 = 23 μm) requires specialized grinding equipment capable of handling the hardness and abrasiveness of petroleum coke. Traditional ball mills or Raymond mills often fall short in terms of energy efficiency and product fineness. That’s why forward-thinking manufacturers in Oman are turning to advanced vertical roller mills and ultra-fine grinding technologies from Shanghai Zenith.
With decades of experience in the field of ore grinding, Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of industrial grinding equipment in China. The company has made great achievements in ultra-fine powder grinding, serving industries such as mining, chemicals, building materials, and pet litter production. Zenith’s product portfolio includes a comprehensive range of mills: MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Ball Mill, Raymond Mill, and Hammer Mill. Each model is designed with specific material characteristics and target fineness in mind.
For petcoke grinding to 600 mesh, Zenith recommends two flagship solutions that combine high efficiency, low energy consumption, and reliable performance: the LUM Ultrafine Vertical Mill and the XZM Ultrafine Grinding Mill.

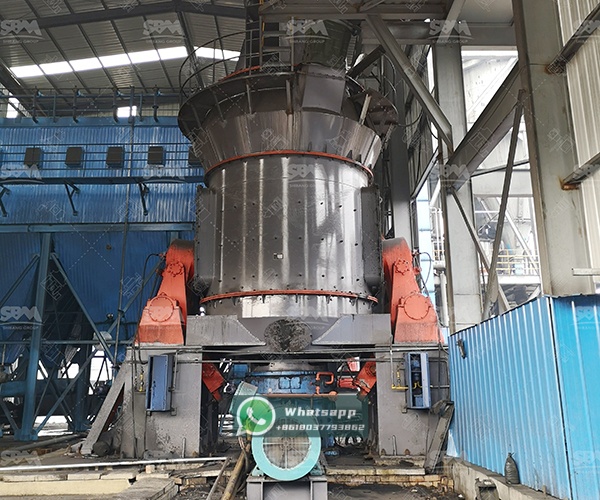

The LUM Ultrafine Vertical Mill is designed to meet the demanding requirements of ultra-fine powder production. It integrates grinding, drying, classifying, and conveying in a single compact unit, resulting in a small footprint and easy maintenance. The mill uses a dynamic classifier to precisely control the particle size, making it ideal for producing 600 mesh petcoke powder. Key advantages include:
Below are the technical parameters of the LUM series suitable for a petcoke grinding line in Oman. The recommended model for a production capacity of 2–11 t/h at 600 mesh is the LUM1632.
| Model | Main Machine Power (kW) | Capacity (t/h) | Output Fineness D97 (μm) | Max Feed Size (mm) | Classifier Speed (r/min) |
|---|---|---|---|---|---|
| LUM1525 | 220–250 | 1.6–11.5 | 5–30 (≈600–2500 mesh) | <20 | 800–1500 |
| LUM1632 | 280–315 | 2.0–13.5 | 5–30 | <20 | 800–1500 |
| LUM1836 | 355–400 | 2.3–15 | 5–30 | <20 | 800–1500 |
When processing petroleum coke with a moisture content below 6% and feed size under 20 mm, the LUM1632 can comfortably produce powder with D97 = 23 μm (600 mesh) at a capacity of 5–9 t/h, depending on hardness. The mill’s integrated hot air system can also dry slightly moist feed, eliminating the need for a separate dryer.
For manufacturers seeking a proven, cost-effective alternative for medium-scale production, the XZM Ultrafine Grinding Mill is an excellent choice. This mill has been widely used for superfine powder production of soft to medium-hard materials, including petcoke. It can achieve an output fineness ranging from 325 mesh to 2500 mesh (5–44 μm). The XZM series employs a multi-stage classification system to ensure product consistency. Its advantages include:
The following table presents the technical data for the XZM models suitable for petcoke grinding to 600 mesh.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
For a typical Omani petcoke processing plant targeting a capacity of 2–4 t/h at 600 mesh, the XZM221 model offers an attractive balance of performance and cost. The mill can be configured with a baghouse dust collector to meet environmental regulations.
When selecting a grinding mill for petroleum coke in Oman, several factors must be evaluated:

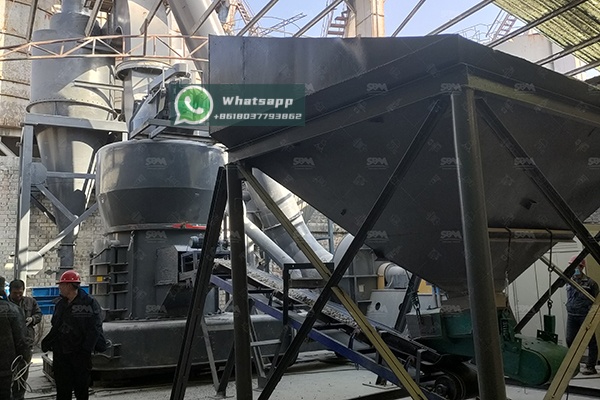

A complete petcoke grinding plant typically includes the following steps:
Oman’s petcoke-to-cat-litter industry has tremendous potential, but success hinges on selecting the right grinding equipment. Shanghai Zenith Machinery offers proven, high-performance mills that deliver consistent 600 mesh powder with low operating costs and high reliability. Whether you choose the LUM Ultrafine Vertical Mill for its energy efficiency and compact integration, or the XZM Ultrafine Grinding Mill for its affordability and versatility, you can count on Zenith’s expertise and global support.
Contact Shanghai Zenith Machinery today to discuss your specific requirements and request a customized quotation. With decades of experience and a commitment to innovation, Zenith is your ideal partner for ultra-fine powder grinding in Oman and beyond.
