In modern metallurgical processes, the use of petroleum coke (petcoke) as a fluxing agent or carbon additive has become increasingly important. The metallurgical industry in the United Arab Emirates (UAE), driven by its expanding steel, aluminum, and ferroalloy sectors, demands ultra-fine, consistent raw materials to achieve optimal processing efficiency. To meet these production requirements—particularly for flux materials with a particle fineness of up to 1000 mesh—advanced grinding technology is essential.
Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore grinding equipment in China, provides complete grinding solutions tailored to meet the needs of various industries, including metallurgy, energy, and construction. With extensive experience in ultra-fine powder production, Zenith is capable of supplying equipment that not only ensures the desired fineness but also operates efficiently and reliably under the demanding industrial environment found in the UAE.
Petroleum coke, a by-product derived from oil refining, exhibits high carbon purity and excellent calorific value. When used in metallurgical flux applications, petcoke contributes to reducing metal oxides, enhancing furnace efficiency, and lowering energy consumption. However, petcoke in its raw form is coarse and unsuitable for direct application in most metallurgical furnaces. Hence, the material needs to be ground into an ultra-fine powder—typically in the range of 325 to 1000 mesh—to maximize its reactivity and ensure homogeneous mixing with other flux materials.
Grinding petcoke to such fine specifications requires equipment designed for both high hardness and low moisture conditions. Traditional grinding systems like ball mills might achieve coarser fineness, but for ultra-fine products below 10 microns, advanced vertical mills and ultrafine mills offer much better control and energy efficiency.
The UAE presents a unique set of operational challenges for industrial grinding plants. The region’s high ambient temperatures can affect material behavior and increase the risk of mill overheating. Moreover, petroleum coke’s abrasive characteristics require wear-resistant components and a milling system capable of maintaining continuous performance without frequent downtime.
Energy costs, which can be significant in continuous grinding operations, also need to be minimized. Therefore, selecting the right petroleum coke grinding mill becomes crucial for achieving consistent product quality while maintaining cost efficiency and operational safety.
Based on the technical requirements for producing 1000 mesh petcoke powder as metallurgy flux, Shanghai Zenith Machinery Co., Ltd. recommends either the XZM Ultrafine Grinding Mill or the LUM Ultrafine Vertical Mill. Both are designed to deliver ultra-fine products with precise particle size control, excellent energy efficiency, and minimal maintenance demands.
The Zenith XZM Ultrafine Grinding Mill is specifically engineered for producing ultra-fine powders ranging from 325 to 2500 mesh. It is ideal for materials like petroleum coke, limestone, calcite, graphite, and kaolin. Its integrated air classifier ensures uniform output size distribution, while its modular design simplifies maintenance. The mill is also optimized for low noise and vibration, making it suitable for plant environments where continuous operation is essential.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (Mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325–2500 | 5000–25000 | 315 |
For 1000 mesh petroleum coke grinding, the XZM268 model provides a stable and high-capacity output, making it optimal for medium to large-scale petrochemical and metallurgical production lines in the UAE.

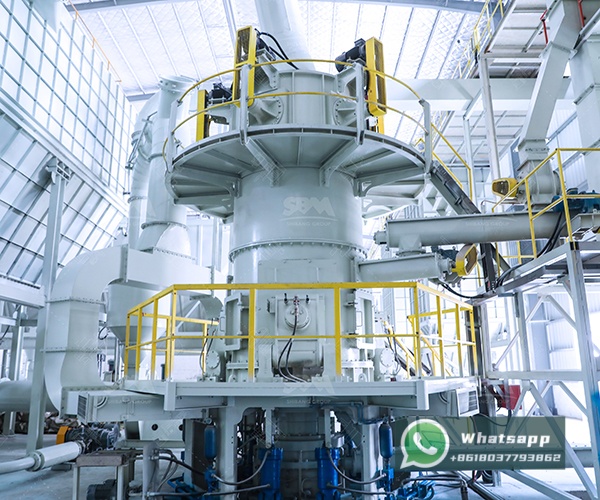

The LUM Ultrafine Vertical Mill is another high-performance choice for processing petroleum coke into fine powders. It integrates multiple functions—grinding, drying, classification, and conveying—into a single compact system. With its vertical structure, it saves floor space and lowers energy consumption. Additionally, its high-precision classifier and intelligent control system ensure consistent particle size, typically below 30 μm, accommodating even the most stringent metallurgical flux requirements.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220–250 | 1.6–11.5 | 5–30 |
| LUM1632 | 280–315 | 2.0–13.5 | 5–30 |
| LUM1836 | 355–400 | 2.3–15 | 5–30 |
In high-end metallurgy applications, where petcoke must be ground to submicron sizes to enhance fluxing properties, the LUM Ultrafine Vertical Mill provides continuous production capability, reduced maintenance overhead, and superior product control.
In the UAE’s metallurgical sector, particularly in aluminum and steel manufacturing, ultra-fine petcoke powder acts as a critical flux for carbon addition and slag conditioning. Zenith’s grinding systems can be configured for direct integration with pneumatic conveying and automated packaging units, creating a highly efficient closed-circuit system. This approach not only reduces dust emissions but also ensures safe and clean handling of fine graphite-like powders.
For example, using the XZM Ultrafine Grinding Mill to produce 1000 mesh petcoke flux allows metallurgists to optimize furnace temperatures and improve molten fluidity. Similarly, the LUM Ultrafine Vertical Mill’s ability to deliver consistent, low-residue output ensures higher product purity and improved metallurgical yield.
The demand for high-quality metallurgical flux materials in the UAE continues to grow, driven by the country’s increasing focus on industrial diversification and sustainability. Petroleum coke grinding to 1000 mesh is an essential step in producing effective flux additives, improving overall furnace performance and metallurgical outcomes.
With its robust research capabilities and advanced manufacturing technology, Shanghai Zenith Machinery Co., Ltd. stands as a reliable partner for UAE-based metal producers and refinery operators. Whether through the precision of the XZM Ultrafine Grinding Mill or the versatility of the LUM Ultrafine Vertical Mill, Zenith’s grinding solutions ensure consistent performance, reduced operational costs, and superior product quality—cementing their role as an integral part of the region’s metallurgical success.
