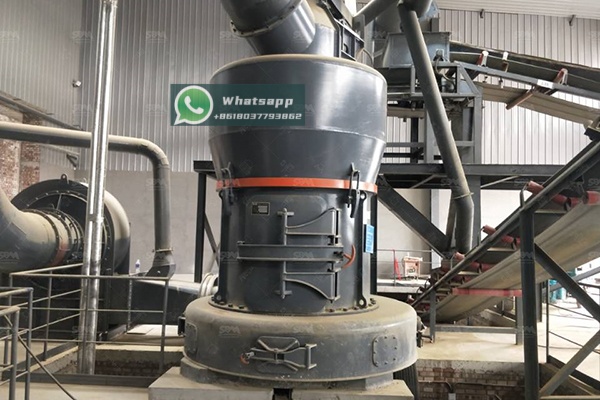

In the modern construction materials industry, advanced grinding technology has become a cornerstone of improved process efficiency, consistent product quality, and lower environmental emissions. Pakistan, a country with expanding infrastructure and ceramic industries, presents a growing demand for refined raw materials such as petroleum coke (commonly known as petcoke). The transformation of petcoke into fine powders suitable for tile production has opened new opportunities for optimizing fuel utilization and cost efficiency. For this specialized application, the petroleum coke grinding mill plays a critical role in ensuring fine, stable, and energy-efficient powder production.
Petroleum coke is a byproduct of the oil refining process, characterized by high carbon content and low ash percentage. In ceramic and tile manufacturing, petcoke powder serves as an efficient fuel source or as a raw material component improving firing performance. The carbon-rich content ensures consistent heat release within kiln environments, contributing to better color development and energy savings.
However, due to its hard and abrasive nature, petcoke grinding requires precisely engineered equipment capable of withstanding high wear conditions while still maintaining consistent particle size control. This is where specialized grinding mills from Shanghai Zenith Machinery Co., Ltd. provide a technical and economic advantage.
Pakistan’s ceramic tile industry is undergoing a phase of modernization, with production bases clustered around Sindh and Punjab provinces. The industry’s adoption of locally available raw materials—combined with petroleum coke as a supplemental energy source—has led to a strong demand for compact grinding systems with outputs of 1–3 TPH. Such a system must provide high fineness, low operational cost, and compatibility with environmentally sustainable processing flows.
In this capacity range, medium-speed and trapezium-type mills offer outstanding balance between performance and operational cost. For this purpose, Shanghai Zenith’s MTM Medium-Speed Grinding Mill and MTW Trapezium Grinding Mill are highly recommended solutions, both proven in the field of non-metallic mineral production across Asia and the Middle East.

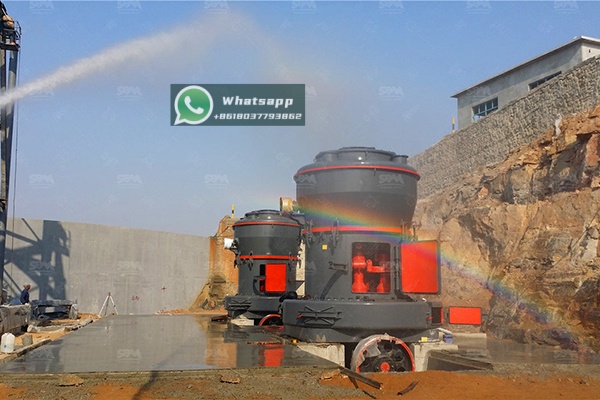

The MTM Medium-Speed Grinding Mill from Shanghai Zenith Machinery Co., Ltd. is designed with advanced technology that optimizes the grinding process of petroleum coke. Its unique ring and roller structure allows stable operation, and the built-in classifier ensures precise control over final powder size. The system is suitable for small to medium production setups requiring a capacity of 1–3 tons per hour.
| Name | Ring Roll Number (pcs) | Max. Feed Size (mm) | Output (t/h) | Main Motor Power (kW) |
|---|---|---|---|---|
| MTM100 | 4 | <25 | 3–8 | 37 |
| MTM130 | 5 | <30 | 6–11 | 75 |
| MTM160 | 6 | <35 | 9–22 | 132 |
Among these, the MTM100 model is ideally suited for a 1–3 TPH production goal, offering excellent balance between power consumption and throughput. Its compact design enables easy installation even in limited plant floor spaces typical of mid-sized tile factories.
For manufacturers requiring finer particle output with improved classification accuracy, the MTW Trapezium Grinding Mill provides a superior alternative. It incorporates a bevel gear transmission, advanced lubrication system, and optimized fan control, offering both higher efficiency and reduced maintenance frequency. The trapezium design allows for better air flow and minimized internal resistance, ensuring stable product fineness even under varying feed compositions.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 | 55 |
| MTW110Z | <30 | 1.6–0.045 | 3–10 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
The MTW110 or MTW110Z variant can efficiently cater to the 1–3 TPH requirement when operated with controlled feed input and optimized classifier settings. The trapezium mill’s unique advantage lies in its low vibration and uniform wear rate across rollers, ensuring a more consistent product and longer service life—key benefits for tile manufacturers seeking stable firing quality.
The process typically begins with crushing raw petroleum coke into manageable pieces (below 30 mm), followed by conveying to the grinding unit. In the MTM or MTW system, petcoke is fed consistently through a controlled feeder into the mill chamber. The rollers exert pressure on the rotating ring, generating high shear and compression forces that pulverize the coke particles.
The integrated classifier continuously separates qualified powders from coarser materials. Coarse particles are recirculated until the desired fineness—often between 200–325 mesh—is achieved. The final fine powder is collected by a pulse dust collector, ensuring minimal emission and clean plant air quality. This is particularly critical for compliance with Pakistan’s environmental standards and for maintaining a safe tile production environment.
In Pakistan, most medium-sized tile processing lines employ dual-stage material preparation: grinding followed by mixing or spray-drying. Using Zenith’s MTM or MTW mills ensures seamless integration with existing mixing and batching systems. The produced petcoke powder can be directly dosed into kiln burners or mixed with clay and flux for energy-optimized bodies.
Given the 1–3 TPH scale, Zenith recommends integrating the grinding mill with a screw feeder, bag filter collector, and automatic weighing system for best control of process stability. The compact plant setup minimizes building investment while maximizing material delivery efficiency.
The demand for high-efficiency grinding solutions in the Pakistani tile industry continues to rise as producers seek ways to enhance product quality while lowering operational costs and environmental footprints. Shanghai Zenith Machinery Co., Ltd., as a leading Chinese manufacturer of industrial grinding equipment, brings reliable solutions tailored to these needs.
For petroleum coke grinding at a throughput of 1–3 TPH, the MTM Medium-Speed Grinding Mill offers unmatched durability, while the MTW Trapezium Grinding Mill provides enhanced refinement and energy efficiency. Both models are field-proven, cost-effective, and supported by Zenith’s after-sales services. By adopting these proven technologies, Pakistani tile manufacturers can achieve stable petcoke powder supply, improved production economics, and sustainable manufacturing outcomes.
For further technical consultation, engineers at Shanghai Zenith Machinery Co., Ltd. are available to provide customized project solutions, including full plant design, energy optimization, and service support across Pakistan’s ceramic sector.
