Australia is a major producer of mineral products and a centre of engineering excellence. Its foundry sector supplies metal castings for mining equipment, agricultural machinery, railway systems, and infrastructure projects. Every casting can only be as good as the mold that shapes it, and the mold is prepared from casting sand. Mineral additives such as phosphate rock can enhance the behavior of sand formulations, but only when the additive is milled to the correct fineness. The standard often specified is 200 mesh, which is approximately 75 µm. A phosphate rock grinding mill for casting sand in Australia must therefore deliver not just powder, but powder with the correct particle size distribution, stable throughput, and repeatable quality.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has extensive experience across industrial powder production. For this application, Zenith recommends the MTW Trapezium Grinding Mill and, for larger tonnage operations, the LM Vertical Grinding Mill. Both machines are built to process abrasive minerals efficiently and can be tuned to a 200 mesh final product.
200 mesh is more than a simple product size. Through a US standard sieve, a 200 mesh opening is 74 to 75 µm. In foundry sand, a powder with this top size is fine enough to enter the space between silica grains and improve mold surface finish. At the same time, it is not so fine that it consumes a disproportionate quantity of binder or blocks the permeability of the mold. Phosphate rock powder used in casting sand applications is also expected to be uniform. A few oversize particles can create surface defects, while excessive ultrafine content can weaken the mold because of higher binder demand.
Phosphate rock raw ore typically arrives as broken stone or sedimentary ore. Depending on source, its Mohs hardness ranges from about 2.5 to 4, but it often contains quartz contamination, which is harder and more abrasive. The grinding system has to handle this variability without frequent shutdowns. Drying may also be necessary if the source is stored outdoors or supplied with high moisture. A mill with integrated drying and classification, such as the LM vertical mill, can offer a very practical answer in these conditions.
Australian foundry and mineral processing sites are often remote. Power, water, and skilled maintenance are not always available close by. For this reason, grinding equipment must be robust, easy to maintain, and energy efficient. Machines that are sensitive to vibration, wear, or feed moisture can cause costly interruptions. Local casting sand manufacturers require mills that run for long periods with simple operation, especially when staff manage multiple production tasks.
The MTW and LM mills from Zenith address these issues with automated controls, high-efficiency classifiers, and system designs that minimize wear. The product fineness can be changed by adjusting the classifier speed, allowing one mill to supply either 200 mesh powder for casting sand or finer powder for another customer. This flexibility is valuable in the Australian market, where a single processing plant may serve foundries, chemical producers, and agricultural customers.

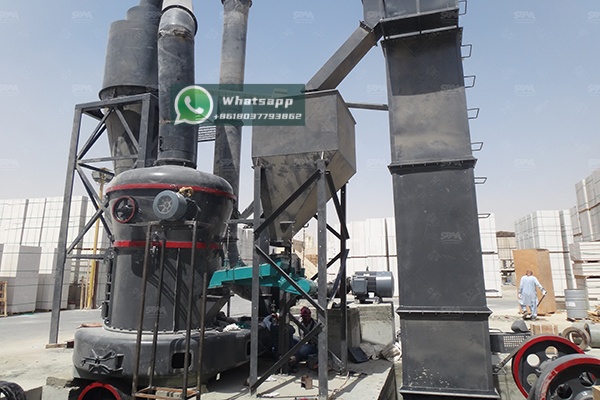

For a professional phosphate rock grinding mill for casting sand in Australia, the MTW Trapezium Grinding Mill is an excellent first choice. The MTW range uses a multi-patented design with low energy consumption and a compact layout. It can accept a maximum feed size of 50 mm in the largest models, which reduces the need for heavy secondary crushing before the mill. The final product size range of 1.6 to 0.045 mm comfortably includes the 75 µm specification, and the internal classifier is designed to return coarse particles to the grinding zone until they reach the target size.
MTW mills are also known for long service life and environmental protection. The mainframe is sealed to reduce dust leakage, and the powder is collected through a bag-type collector. For a 200 mesh phosphate rock powder operation, the MTW175G is a balanced solution with 9.5-25 t/h capacity, while the larger MTW215G can handle 15-45 t/h and is ideal for centralized plants that also supply other screened mineral products. Technical data for the recommended MTW models is shown below.
Table 1. MTW Trapezium Grinding Mill technical parameters
| Model | Max Feed Size (mm) | Final Product Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | ≤30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | ≤35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | ≤40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | ≤50 | 1.6-0.045 | 15-45 | 280 | 315 |

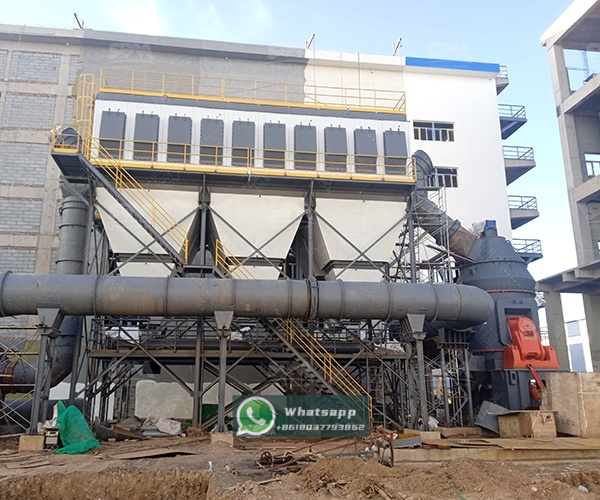

When the required output exceeds 25 t/h, the LM Vertical Grinding Mill is a highly efficient alternative. LM mills integrate crushing, grinding, drying, powder selection, and pneumatic conveying in one unit. Because it occupies a smaller floor area than a ball mill system, the LM mill is often the most economical solution for continuous production in Australia. It also performs drying inside the air stream, making it easier to process phosphate rock with moderate moisture from open stockpiles. For casting sand producers, an LM130K can produce 10-28 t/h, and an LM190K can deliver 23-68 t/h while maintaining a product fineness of 170-40 µm. The classifier speed can be set so that most particles pass the 200 mesh sieve, as required by foundry sand specifications.
The LM vertical mill is suitable for phosphate rock because its grinding bed is stable and its roller and millstone design provide high grinding efficiency per unit of power. Sealed operation reduces dust emissions, which is another advantage for casting sand plants located in established industrial areas or in regions with strict environmental controls.
Table 2. LM Vertical Mineral Mill technical parameters
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | ≤38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | ≤45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | ≤50 | 1250 |
Deciding between MTW and LM should be based on feed rock size, required capacity, available power, and site layout. Both series are supported by Zenith engineers, who can design the complete system from hopper to finished powder silo. A typical 200 mesh phosphate rock grinding line includes a preliminary crusher, a bucket elevator, a vibrating feeder, the main mill, a classifier, a bag filter, a draft fan, and a control panel. With the MTW mill, the process is reliable and straightforward. With the LM mill, fewer separate machines are needed because the vertical mill performs multiple functions at once. For large foundry sand producers, the LM’s smaller floor footprint and lower energy use often produce the best overall operating cost.
For an Australian casting sand plant planning to produce phosphate rock powder at 200 mesh, it is also necessary to define the full particle size envelope. Zenith can perform grindability tests on a sample of actual ore and recommend the mill model, motor power, classifier speed, air volume, and product collection device. This engineering service reduces trial and error on site and ensures the selected grinding mill is correctly matched to the operation.
Local grinding of phosphate rock gives Australian foundries both cost and supply chain advantages. It reduces the risk of inconsistent imported powder and provides the ability to control exactly how much material is ground. The MTW Trapezium Grinding Mill from Shanghai Zenith Machinery Co., Ltd. is an excellent combination of flexibility, durability, and energy efficiency for medium-capacity producers targeting 200 mesh. Larger projects can rely on the LM Vertical Grinding Mill to achieve high throughput with integrated drying and low operating space. Whatever the production goal, Zenith’s grinding systems are designed for the severe conditions of mineral processing and can help Australia’s casting sand industry reach the required quality with repeatable accuracy.
