Algeria is one of the most important phosphate-producing countries in the world, with large deposits located mainly in the Djebel Onk region and the eastern Sahara. While the country has traditionally exported phosphate rock, recent economic development plans emphasize local value addition. The ceramic manufacturing sector, especially tile and sanitaryware factories in the northern industrial belt, needs finely ground phosphate rock as a raw material for ceramic bodies and glazes. For a production line with a nominal capacity of 5 to 10 tons per hour, choosing the right grinding mill is critical to achieve stable quality, low energy consumption, and long-term profitability.
Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of ore grinding equipment in China. With years of experience in the design and production of industrial powder grinding equipment, Zenith offers proven solutions for phosphate rock grinding. This article focuses on the key technical considerations for a phosphate rock grinding mill for ceramic materials in Algeria and presents Zenith’s recommended grinding mills for the 5 to 10 tph range.
Phosphate rock is a natural mineral containing apatite and other calcium phosphate compounds. In ceramic production, its value lies in its ability to lower the eutectic temperature of a ceramic body, promote the formation of a glassy phase during firing, and improve the mechanical strength and chemical resistance of the final piece. For floor tiles, a small addition of finely ground phosphate can reduce water absorption and increase breaking strength. For glazes, phosphate rock can provide a matte texture and improve the dispersion of pigments.
To achieve these benefits, the phosphate rock must be ground to a controlled particle size distribution. Coarse particles remain chemically inactive and cause defects in the fired body. Very fine particles, on the other hand, increase energy consumption and may lead to excessive shrinkage. A high-performance grinding mill must therefore guarantee a stable output fineness in the range commonly used in ceramics, typically from 0.045 mm to 0.1 mm, while maintaining a capacity of 5 to 10 tph.
Several factors must be evaluated before selecting a phosphate rock grinding mill.
The mill must be able to sustain a throughput of 5 to 10 tons per hour for at least 24 hours per day if required. The rated capacity is always related to feed size, hardness, moisture, and target fineness. For Algerian phosphate rock, which can be accompanied by varying amounts of silica and limestone, the mill should have enough installed power and a well-designed grinding zone to absorb these variations.
Ceramic bodies and glazes require fine and uniform powders. A mill with an adjustable classifier can provide a switchable fineness range. Both MTW and MTM mills allow the operator to control the rotor speed and louver opening, ensuring the product meets the exact specification for the downstream forming and firing process.
Phosphate rock from the mine may contain surface moisture, especially after washing or during the rainy season. Grinding mills are generally designed for raw materials with moisture content below 6%. If the moisture is higher, a hot-air drying system or a separate drying step is necessary. Zenith can provide an integrated drying solution using the mill system’s hot gas flow.
Phosphate rock is moderately hard and abrasive due to quartz and other impurities. The grinding rollers, liners, and classifier blades need to be manufactured from wear-resistant materials. Zenith uses high-chrome alloys and optimized geometry to extend service life and reduce maintenance cost.
Energy cost is a major component in any grinding operation. A trapezium mill with a multi-press grinding zone and a medium-speed mill with a three-dimensional structure both offer higher grinding efficiency than traditional Raymond mills. In addition, a negative-pressure system and bag-type dust collector help keep the plant clean and in line with Algerian environmental regulations.
Shanghai Zenith Machinery Co., Ltd. is specialized in research, development, and production of industrial powder grinding equipment. For a phosphate rock grinding application in Algeria that requires 5 to 10 tph for ceramic materials, Zenith offers two excellent choices: the MTW Trapezium Grinding Mill and the MTM Medium-Speed Grinding Mill.
The MTW series is a state-of-the-art grinding mill with multiple patents. It is designed with a compact structure, a strong grinding roller assembly, and an intelligent automatic control system. The mill has a long service life and is eco-friendly thanks to its low vibration and low noise operation. It is particularly suitable for processing non-metallic minerals such as phosphate rock, barite, limestone, and gypsum.

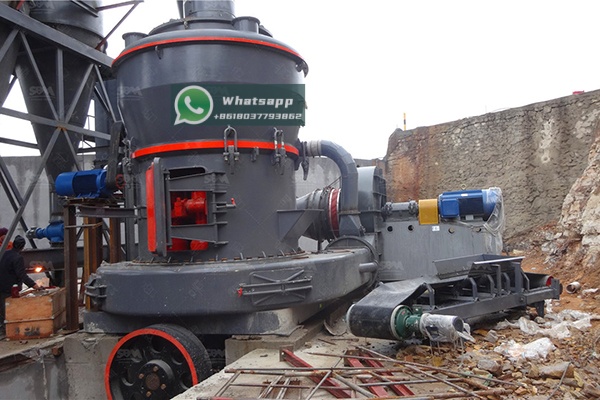

For the 5-10 tph requirement, the MTW110Z model is an ideal match. It can accept a maximum feed size smaller than 30 mm and produce a final powder from 0.045 mm to 1.6 mm, with a capacity of 3 to 10 tons per hour. The main motor power of 55 kW and the fan motor power of 55 kW make it convenient to install in a medium-sized ceramic raw material plant.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
The MTM series is another proven solution for medium-scale grinding. Adopting world-leading powder processing technology, the MTM mill is often used as an ideal substitute for traditional Raymond mills. Its upgraded structure improves grinding efficiency and reduces energy consumption. The machine has a compact layout, strong grinding rollers, and high classification accuracy.

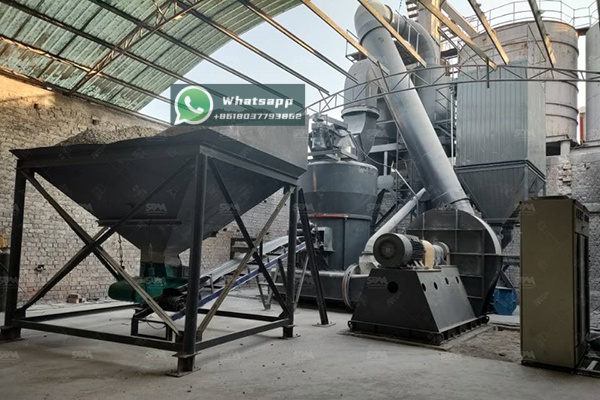

For a target output of 5 to 10 tph, the MTM130 model is recommended. With five grinding rollers, a maximum feed size below 30 mm, and an output range of 6 to 11 tons per hour, it is well suited to Algerian phosphate rock grinding for ceramic materials. The main unit motor power is 75 kW, which is moderate and easy to accommodate in existing plant infrastructure.
| Model | Ring Roll Number (pcs) | Max Feed Size (mm) | Output (t/h) | Main Unit Motor Power (kW) |
|---|---|---|---|---|
| MTM130 | 5 | <30 | 6-11 | 75 |
Both the MTW110Z and the MTM130 are capable of fulfilling the 5-10 tph capacity target. The MTW110Z is preferred when the feed material contains slightly more coarse particles or when the customer wants a more automated system with a trapezium-shaped grinding surface for a larger contact area. The MTM130 is a strong competitor when the project budget is more sensitive and the user is familiar with Raymond-type mills. Zenith engineers can perform the material test and provide a recommended process configuration based on the actual phosphate rock composition in Algeria.
Algeria’s climate varies from humid coastal regions to dry Sahara conditions. A grinding plant in the north may need to handle higher ambient humidity, while a plant in the south should be designed for dust control under strong winds. In both cases, the mill should be installed with proper ventilation and explosion-proof electrical equipment if the powder is combustible. Phosphate rock itself is not highly explosive, but fine organic impurities and dust accumulation should be managed.
Another important factor is the source of power. Many ceramic factories in Algeria operate on the national grid, with frequent voltage fluctuations in some industrial zones. Zenith’s electrical control cabinet can be equipped with soft starters, variable frequency drives, and automatic protection to stabilise operation. The MTW and MTM mills are designed to run continuously with minimal operator intervention, reducing the dependence on highly skilled local personnel.
Maintenance planning is also essential. The grinding roller and grinding ring are the most wear-sensitive parts. Zenith designs these parts to be easy to replace, and the after-sales service team can provide technical guidance for local maintenance staff. A well-planned spare parts inventory, including grinding rollers, bearings, and classifier blades, can prevent prolonged downtime.
Phosphate rock is a valuable raw material for the ceramic industry in Algeria. By converting domestic phosphate rock into fine powder, ceramic manufacturers can reduce their dependence on imported materials, lower production costs, and improve the quality of their tiles, sanitaryware, and tableware. The selection of an appropriate grinding mill is one of the most important investment decisions in this process.
Shanghai Zenith Machinery Co., Ltd. has an excellent track record in the field of ore grinding equipment and is well known for its reliable MTW trapezium mills and MTM medium-speed mills. Both models can meet the 5-10 tph capacity range for phosphate rock grinding for ceramic materials. With a strong focus on innovation, energy efficiency, and customer service, Zenith is ready to provide the right equipment, process design, and technical support for Algerian projects.
For site-specific recommendations, feed material analysis, and quotation, contact Shanghai Zenith Machinery Co., Ltd. to discuss your phosphate rock grinding requirements.
