Phosphate rock, primarily composed of apatite minerals, is a versatile industrial mineral used in various applications beyond fertilizer production. In the coatings industry, finely ground phosphate rock serves as an extender pigment, providing opacity, hardness, and corrosion resistance to paints, primers, and protective coatings. Its natural white or light color, combined with its chemical inertness, makes it an ideal filler for water-based and solvent-based systems. In Algeria, which possesses significant phosphate reserves—notably the Djebel Onk deposit in the northeast—local coating manufacturers are increasingly turning to domestically sourced phosphate rock to reduce raw material costs and enhance product performance. To meet the specific requirements of coating formulations, a consistent particle size of 150 mesh (approximately 100 microns) is often specified. Achieving this target efficiently and economically demands a reliable grinding mill tailored to the material’s abrasive nature and the production scale.
Phosphate rock is a medium-hard material (Mohs hardness 3–5) with a typical moisture content of 2–6%. While it is not extremely abrasive, its grinding requires equipment that can handle throughputs ranging from a few tons to tens of tons per hour, depending on the coating plant capacity. The target fineness of 150 mesh (150 microns) is relatively coarse compared to ultra-fine powders used in high-end paints, but it still demands precise control over particle size distribution. A poorly ground product can lead to inconsistent film properties, settling issues, and reduced gloss. Furthermore, coating manufacturers often look for energy-efficient solutions that minimize operational costs and environmental impact. In Algeria, where the industrial landscape is expanding, selecting the right grinding technology is crucial for long-term profitability.
Shanghai Zenith Machinery Co., Ltd., a renowned Chinese manufacturer of ore grinding equipment, has extensive experience in processing phosphate rock across various industries. For coating production applications targeting 150 mesh, two of Zenith’s flagship mills stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both offer proven performance, high reliability, and flexible operation. Below, we examine their suitability for phosphate rock grinding in Algeria.

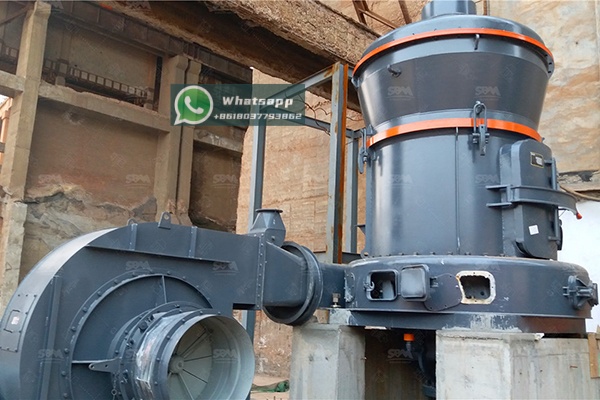

The MTW series is a multi-patented, eco-friendly mill designed for medium-fine grinding of non-metallic minerals. Its unique trapezoidal grinding ring and roller geometry improve grinding efficiency by 20%–30% compared to traditional Raymond mills. For phosphate rock, the MTW mill can easily achieve 150 mesh with a capacity ranging from 3 to 45 t/h, depending on the model. The mill features a built-in classifier that ensures a uniform particle size, critical for coating formulations. Additionally, its compact footprint and dust-tight design align with modern environmental standards. We recommend the MTW138Z or MTW175G models for small to medium-scale coating production lines.
For larger coating plants or centralized grinding stations, the LM Vertical Grinding Mill integrates crushing, grinding, drying, and classification in one unit. Its vertical roller design offers high grinding efficiency (up to 15–20% lower energy consumption than ball mills) and a small occupational area. The LM130K and LM190K models, belonging to the vertical mineral mill series, produce fineness adjustable from 170 to 40 microns (80–400 mesh), perfectly covering the 150 mesh target. The mill’s automatic control system simplifies operation, while its robust construction withstands the wear from phosphate rock. In Algeria, where skilled operators may be scarce, the LM mill’s user-friendly PLC interface is a distinct advantage.
To help coating manufacturers select the optimal equipment, the table below lists key parameters of the recommended models. Both mills can reliably produce 150 mesh (approximately 100 microns) with the noted capacity ranges.
| Mill Model | Max Feed Size (mm) | Discharge Fineness (mm) | Capacity (t/h) | Main Motor Power (kW) | Fan Motor Power (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
| LM130K | <38 | 0.170–0.040 | 10–28 | 200 | — |
| LM190K | <45 | 0.170–0.040 | 23–68 | 500 | — |
Algeria’s climate, with its hot summers and moderate humidity, demands equipment that can handle occasional moisture variations in phosphate rock. Both the MTW and LM mills feature integrated drying capabilities—the MTW uses hot air from the fan, while the LM includes a drying chamber. This ensures that the final moisture content of the ground product remains below 2%, preventing caking during storage and mixing. Moreover, the mills are built with wear-resistant materials (e.g., high-chrome liners) to extend service life, reducing maintenance downtime in remote locations. The after-sales support from Shanghai Zenith includes a dedicated team for North Africa, offering spare parts and technical guidance via local distributors or direct online assistance.
To achieve the desired 150 mesh with consistent quality, the following operational tips are recommended:
As Algeria’s coating industry continues to grow, the demand for high-quality, locally milled phosphate rock will rise. By investing in advanced grinding technology from Shanghai Zenith Machinery Co., Ltd., manufacturers can achieve a reliable 150 mesh product with low energy consumption and minimal environmental footprint. The MTW Trapezium Grinding Mill offers flexibility for medium-scale operations, while the LM Vertical Grinding Mill provides high-capacity, integrated solutions for larger plants. Both are backed by decades of expertise in ultra-fine powder grinding and a global service network. For detailed engineering proposals tailored to specific site conditions, contact Zenith’s international sales team to discuss a customized layout, including dust collection systems and automated control. With the right mill, Algerian coating producers can turn their rich phosphate resources into a competitive advantage.
Note: The images used are placeholders for illustrative purposes. Actual equipment and product images can be provided upon request.
