Ethiopia has been one of the fastest-growing economies in Africa over the past decade, driven largely by infrastructure development, industrialization, and urban expansion. A key component of this industrial growth is the cement manufacturing sector, which serves as the foundation for construction projects across the country. As the demand for high-quality cement continues to increase, efficient raw material preparation becomes essential. One of the critical processes in cement production is quartz grinding, as quartz is a major constituent of raw mix material. This article explores the use of advanced quartz grinding mills for cement production in Ethiopia within the capacity range of 20–30 tons per hour (TPH), highlighting how modern grinding technology from Shanghai Zenith Machinery Co., Ltd. delivers both operational efficiency and superior product fineness.
The cement industry in Ethiopia faces multiple challenges including raw material hardness, high energy costs, and the need for sustainable production. Quartz, being a hard mineral with a Mohs hardness of around 7, requires advanced grinding equipment capable of delivering high fineness while minimizing wear and energy loss. Traditional ball mills, although still in use, often lack the efficiency and precision demanded by modern cement plants. Therefore, manufacturers in Ethiopia are turning toward innovative grinding solutions that combine energy saving, automation, and environmental compliance.
Quartz serves as a source of silica in clinker production. Precise control of the silica content and particle size is critical for achieving the necessary chemical reactions during clinker formation. When quartz is ground to an optimal fineness (typically below 45 μm), it contributes to better clinker quality and strength development in the final cement product. Inadequate grinding, on the other hand, may lead to incomplete reactions, resulting in reduced cement performance and increased energy consumption during subsequent milling stages.
Modern grinding mills have evolved to offer better wear resistance, adjustable product fineness, and lower operational costs. Shanghai Zenith Machinery Co., Ltd., an industry leader in the field of ore and mineral grinding, provides a wide range of industrial grinding solutions. Their cutting-edge technologies such as the LM Vertical Grinding Mill and MTW Trapezium Grinding Mill are particularly well-suited for quartz processing in cement manufacturing due to their stability, high efficiency, and versatility.
For cement producers seeking reliable performance in the 20–30 TPH range, the LM Vertical Grinding Mill from Shanghai Zenith is an outstanding option. It integrates five key functions – grinding, drying, classifying, conveying, and powder selection – into one compact system. Its efficient drying capability is especially valuable for Ethiopian cement plants that often process materials with varying moisture content. Moreover, the LM series reduces the number of external machines, simplifying plant layout and cutting maintenance costs.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
For a medium-scale cement operation in Ethiopia producing around 20–30 TPH, the LM130K model fits perfectly in terms of production output, energy efficiency, and space utilization.

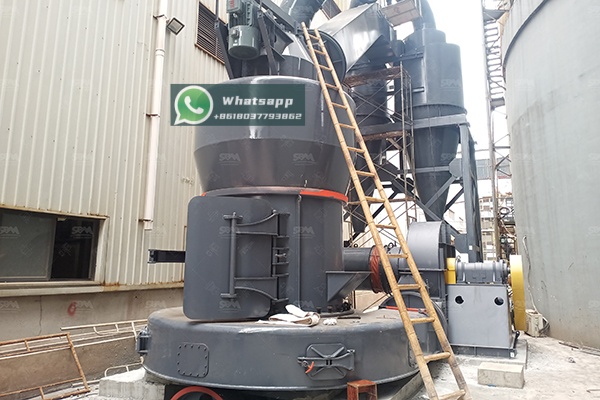

For plants focusing on high fineness quartz grinding, the MTW Trapezium Grinding Mill series provides another excellent choice. Known for its innovative design and superior performance, this mill is equipped with advanced air circulation systems, ensuring consistent particle classification. The MTW mill also features an adjustable classifier and variable-speed fan, allowing plant operators to fine-tune product fineness between 0.038 mm and 1.6 mm. Its European technology-based design ensures longer lifecycle and minimal vibration during operation.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
The MTW175G model aligns well with cement production capacities of 20–30 TPH, providing precise control of particle size distribution and enhanced durability under quartz grinding conditions.

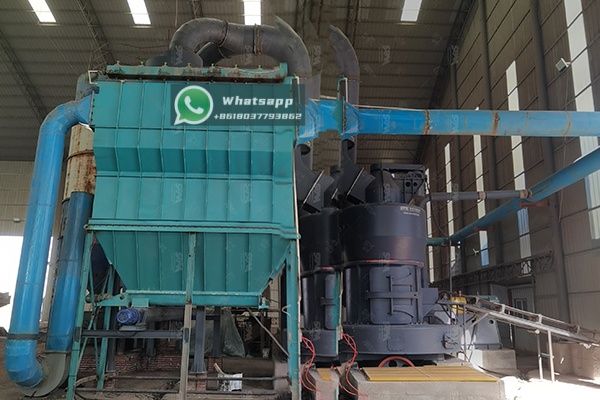

In a typical Ethiopian cement plant, quartz-rich raw materials are mixed with limestone and clay before entering the grinding unit. The introduction of the LM Vertical or MTW Trapezium Grinding Mill has delivered several operational benefits:
Energy cost remains a major factor in cement production profitability. The mills developed by Shanghai Zenith are designed with advanced motor control and optimized airflow to ensure minimal energy loss. Variable frequency drive (VFD) integration allows adjustment of grinding speed according to material hardness, further reducing power consumption. Additionally, both LM and MTW mills feature integrated dust collectors, contributing to compliance with Ethiopia’s increasingly stringent environmental standards.
Modern cement plants rely heavily on digital monitoring and control. Shanghai Zenith’s grinding mills can be equipped with intelligent control systems that monitor vibration, temperature, and pressure in real time. This predictive maintenance capability ensures longer uptime and reduces operational risk. The ability to integrate with plant-wide automation systems enhances production reliability and consistency.
Shanghai Zenith Machinery Co., Ltd. provides comprehensive technical support, from site evaluation to installation and commissioning. Spare parts are readily available, and customized maintenance programs reduce downtime. The modular design of the LM Vertical Mill and MTW Trapezium Mill also simplifies replacement of grinding rollers and liners, ensuring efficient long-term operation.
The demand for high-performance, energy-efficient quartz grinding solutions in Ethiopia’s cement industry continues to grow. For plants targeting a capacity of 20–30 TPH, Shanghai Zenith’s LM Vertical Grinding Mill and MTW Trapezium Grinding Mill stand out as ideal choices. Their combination of efficiency, automation, and sustainability enables manufacturers to achieve both operational excellence and environmental compliance. As Ethiopia expands its industrial base, adopting such advanced grinding technology will play a pivotal role in improving cement quality, reducing production costs, and supporting the nation’s infrastructure ambitions.
For further information or customized grinding solutions, Shanghai Zenith Machinery Co., Ltd. offers professional consultation and local service support across Africa, ensuring your cement production line operates efficiently and sustainably from the first day of operation.
