In the realm of industrial powder processing, achieving precise particle size distribution is paramount. The efficiency and quality of final products across various industries—from pharmaceuticals and cosmetics to advanced materials and coatings—heavily depend on the ability to produce consistent, ultrafine powders. At the heart of modern ultrafine grinding systems lies a critical component: the cage rotor classifier. This sophisticated device is responsible for the precise separation and classification of fine particles, ensuring that only particles meeting the desired fineness specifications proceed to the final product collection. This article delves into the scientific principles, operational mechanics, and technological advancements of cage rotor classifiers within ultrafine mills.
Particle classification in grinding mills is based on the balance of forces acting on a particle within a fluid stream (typically air). The primary forces at play are:
The cage rotor classifier creates a vortex field. Coarse particles, experiencing a dominant centrifugal force, are rejected back to the grinding zone for further comminution. In contrast, fine particles, where the drag force overcomes the centrifugal force, are carried through the rotor blades and out to the product collector. The cut point (d97), or the particle size at which 97% of the material is finer, is precisely controlled by adjusting the rotor speed. A higher speed increases centrifugal force, resulting in a finer cut point, while a lower speed allows coarser particles to pass through.
A modern cage rotor classifier is an engineering marvel, consisting of several key components:
The synergy between these components enables the classifier to achieve sharpness of separation (selectivity), which is a measure of how effectively it can split a particle feed into distinct fine and coarse fractions with minimal misplaced particles.
The classifier is not a standalone unit but is intricately integrated into the grinding mill loop. In a typical vertical roller mill or ultrafine grinding system, the process flow is as follows:
This closed-circuit system ensures high grinding efficiency, as energy is not wasted on over-grinding already fine particles. The classifier acts as the “brain” of the operation, continuously monitoring and controlling the product quality.
Recent advancements in classifier technology focus on higher efficiency, energy savings, and smarter control. Modern designs feature:
Shanghai Zenith Machinery Co., Ltd. has made great achievements in the field of ultra-fine powder grinding, leveraging these advancements in their equipment. As an excellent manufacturer of ore grinding equipment, Zenith’s designs incorporate robust and highly efficient cage rotor classifiers to meet the demanding requirements of modern industry.
For applications demanding superior fineness and high efficiency, Zenith offers two standout products that exemplify the advanced application of cage rotor classifier technology.

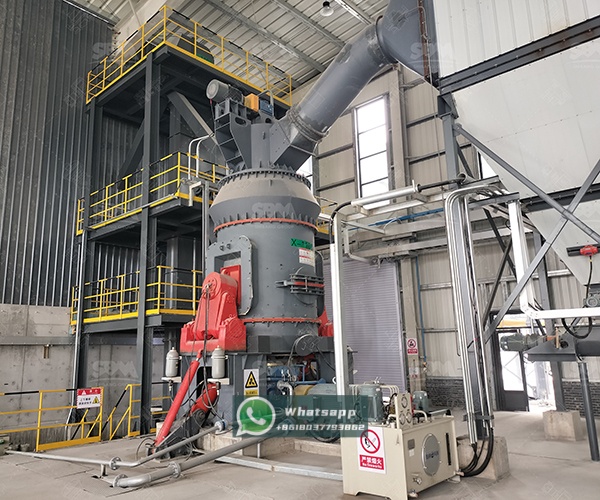

The LUM Ultrafine Vertical Mill is a state-of-the-art solution that integrates grinding, drying, classifying, and conveying into a single, compact unit. Its core strength lies in its highly efficient and stable cage rotor classifier, which allows for the production of powders with a high content of end-fines. It is particularly suited for producing superfine powders in the range of D97=5-30 microns.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |

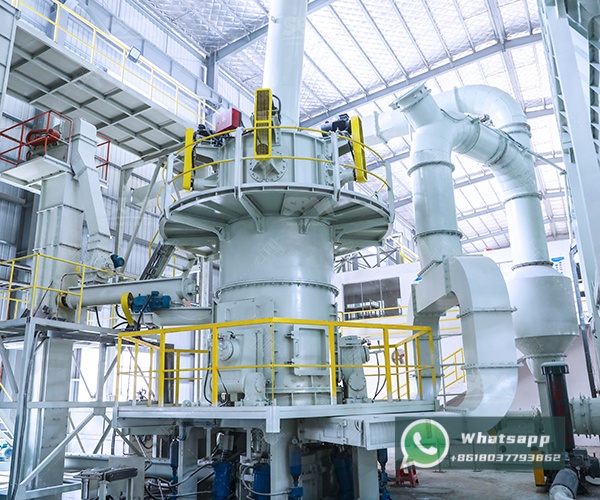

The XZM Ultrafine Grinding Mill is another flagship product from Zenith, widely recognized for its ability to produce powders from 325 to 2500 mesh. It features a proprietary static-dynamic classifier that operates on similar principles as the cage rotor, ensuring precise control over the final product’s particle size distribution. Its robust design makes it ideal for a wide range of soft to medium-hard materials.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The cage rotor classifier is a pivotal innovation in ultrafine powder processing, transforming simple grinding machines into precise, high-efficiency production systems. By mastering the interplay of centrifugal and drag forces, this technology enables industries to achieve unparalleled control over product fineness and quality. Shanghai Zenith Machinery Co., Ltd., with its deep expertise and advanced product line including the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill, continues to be at the forefront of this technology, providing reliable and efficient solutions for the most challenging grinding applications worldwide. The ongoing refinement of classifier science promises even greater efficiencies and capabilities in the future of powder technology.
