Quartz, as a key raw material in the ceramic industry, provides hardness, whiteness, and chemical stability to finished products such as tiles, sanitaryware, and tableware. In ceramic bodies and glazes, ground quartz powder (typically to 325 mesh, equivalent to 44 microns) ensures optimal flowability during shaping, controlled shrinkage during firing, and enhanced mechanical strength. For Syrian ceramic manufacturers who are rebuilding the nation’s industrial capacity after years of conflict, access to reliable and efficient quartz grinding equipment is vital to meet international quality standards and boost local production.
Syria has historically been a regional producer of ceramics, with abundant local reserves of quartz sand and clay. The post-war reconstruction phase has seen renewed investment in building materials, including ceramic tiles and bricks. The standard fineness required for quartz powder in ceramic applications is 325 mesh (D97 ≤ 44 μm). Finer particles ensure better homogeneity in the ceramic slurry, reduce water demand, and improve sintering behavior. However, many local facilities still rely on outdated ball mills or imported grinding solutions that lack energy efficiency and production stability. This is where Shanghai Zenith Machinery Co., Ltd. steps in—offering advanced grinding mills tailored to process quartz for ceramic materials in Syria, achieving the precise 325 mesh output with high throughput and low operating costs.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with decades of experience in ultra-fine powder grinding. Our equipment is designed to handle hard and abrasive materials like quartz (Mohs hardness 7) while maintaining consistent product fineness. For the Syrian market, where electricity supply may be intermittent and maintenance expertise limited, we recommend two proven solutions: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both can reliably produce 325 mesh quartz powder with the following advantages:

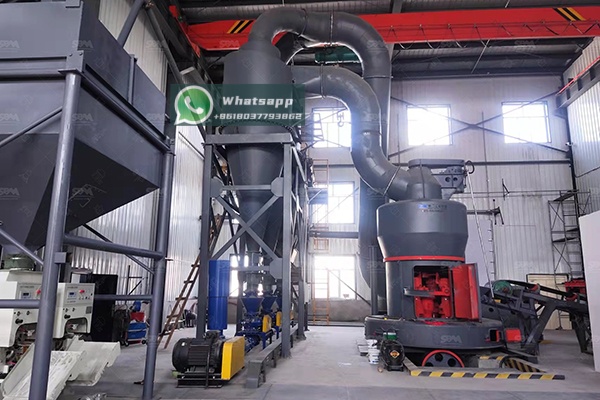

The MTW Trapezium Grinding Mill is a multi-patented machine with a compact structure and long service life. It is especially suitable for grinding quartz with a maximum feed size of 30–50 mm, and the final product can be adjusted from 1.6 mm down to 0.038 mm (approximately 400 mesh). For the 325 mesh requirement, the mill operates with a classifier speed that precisely cuts the powder at 44 microns. Below are the typical models recommended for Syrian ceramic quartz grinding:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 |
| MTW215G | <50 | 1.6–0.045 | 15–45 | 280 |
For a mid-scale Syrian plant producing 8–15 t/h of quartz powder, the MTW138Z is an ideal choice, offering stable operation and low power consumption. The mill’s trapezoidal grinding ring and roller design improve grinding efficiency, while the analytical engine classifier ensures that over 90% of the product passes 325 mesh.
The LM Vertical Grinding Mill integrates crushing, grinding, drying, and classifying in one unit. Its vertical mineral mill series (LM130K, LM190K, etc.) are excellent for coarse to medium fineness, but for the specific 325 mesh quartz application, Zenith’s Vertical Fine-powder Mill Series (LM130X-GX and LM220X-GX) is engineered to produce powders from 325 mesh up to 600 mesh. These mills have a smaller footprint and higher drying capacity, which is beneficial if the quartz feed contains some moisture. The table below shows the parameters relevant to Syrian ceramic producers:
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (D97) | Main Motor (kW) |
|---|---|---|---|---|
| LM130X-GX | 1300 | 4–12 | 325–600 mesh | 220 |
| LM220X-GX | 2200 | 15–30 | 325–600 mesh | 560 |
The LM130X-GX is perfect for small to medium plants with a capacity of 4–12 t/h, while the LM220X-GX suits larger continuous production lines. Both models feature a hydraulic roller system and an integrated classifier that can be adjusted to achieve exactly 325 mesh with minimal oversize particles. Additionally, the vertical mill’s sealed design reduces dust leakage, which is crucial for meeting local environmental regulations in Syrian industrial zones.
Besides the two recommended products, Zenith also offers XZM Ultrafine Grinding Mill which can achieve 325–2500 mesh, ideal if you need even finer quartz for high-end ceramic glazes. The Raymond Mill (YGM series) is a classic choice for lower capacity (2–8 t/h) where initial investment is limited. For large-scale operations, the Ball Mill can be used in wet grinding circuits to produce quartz slurry directly for ceramic slip preparation. However, the MTW and LM series remain the most cost-effective and reliable solutions for dry grinding quartz to 325 mesh in Syria.
As Syria continues to rebuild its industrial infrastructure, the demand for high-quality ceramic materials will only grow. Investing in a dependable quartz grinding mill from Shanghai Zenith Machinery ensures consistent 325 mesh powder production, lower energy bills, and reduced downtime. Our team provides complete after-sales service, including installation guidance, spare parts supply, and remote technical support. Contact us today to discuss your specific capacity requirements and site conditions. Let Zenith be your partner in powering Syria’s ceramic industry forward.
Shanghai Zenith Machinery Co., Ltd. – Excellence in grinding, trust in performance.
