Quartz is one of the most abundant minerals found in nature and is widely used across industries such as construction, glass manufacturing, and high-end ceramics. In the construction industry, finely ground quartz serves as an essential aggregate component, improving the durability and performance of concrete, mortars, and other structural materials. In Libya, where infrastructure and industrial development are accelerating, the demand for high-quality quartz aggregate is growing rapidly. To meet this demand, efficient grinding systems capable of producing 1–3 tons per hour (TPH) of fine quartz powder are essential.
Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of industrial grinding equipment in China, offers a complete range of grinding mills that are ideal for this purpose. With decades of experience in the field of mineral processing and ultra-fine powder production, Zenith provides technical solutions tailored to meet different capacity requirements, including the 1–3 TPH quartz grinding setup in Libya.
Quartz possesses a unique combination of hardness, chemical stability, and resistance to wear, making it a suitable material for use in construction aggregates. Its inclusion in cementitious composites enhances strength, minimizes cracking, and improves workability. Fine quartz powder, when integrated with cement and other materials, significantly increases the compressive strength of buildings and road structures.
In Libya’s construction environment, where sand and limestone aggregates are commonly used, introducing a controlled quartz component promises improved mechanical performance, reduced maintenance, and longer lifespan for infrastructure projects.
Choosing the right grinding mill is a critical decision that influences the final product’s particle size distribution, energy consumption, and production stability. Factors such as feed hardness, desired output fineness, moisture content, and capacity requirements must all be considered. For a production line of 1–3 TPH aiming at processing quartz into fine aggregate, medium-speed mills or ultrafine vertical mills are recommended.
Shanghai Zenith Machinery Co., Ltd. provides several models tailored for medium-capacity production. Two of the most suitable mills for quartz grinding in Libya include the MTW Trapezium Grinding Mill and the XZM Ultrafine Grinding Mill. Both feature advanced technology, durable components, and efficient energy control systems.
For processing quartz aggregates at 1–3 TPH, stability and particle size control are priorities. A typical Zenith configuration includes a vibrating feeder, jaw crusher (for initial coarse crushing), followed by the grinding mill, classifier, dust collector, and centralized control system. Below is a recommended product suitable for this production range.

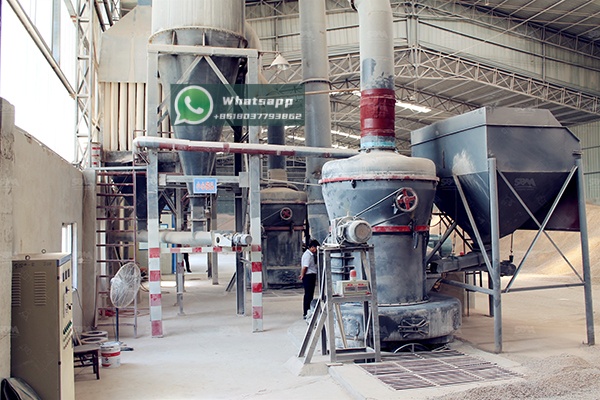

The MTW Trapezium Grinding Mill from Shanghai Zenith Machinery is one of the most advanced mills for medium-size industrial production. It integrates grinding, classifying, and conveying in a compact structure. It is ideal for processing materials like quartz due to its high durability and adjustable fineness control.
| Model | Max. Feed Size (mm) | Final Product Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 | 55 |
Given the 1–3 TPH target, the MTW110 model easily accommodates this capacity with room for output flexibility. Its efficient air circulation system enhances powder separation and minimizes dust leakage—an important factor when handling quartz particles.
For finer powder output or high-purity quartz aggregate, the XZM Ultrafine Grinding Mill offers superior performance. It employs a flexible ring-and-roller design that ensures uniform grinding and minimal heat buildup. Additionally, it operates under negative pressure conditions, ensuring an environmentally friendly production environment.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325–2500 | 500–4500 | 75 |
This model’s precision control over the particle size makes it perfect for producing quartz powders suitable for high-performance construction materials and coatings. Operating at around 1–3 TPH, it ensures consistent product output, minimal residue, and high energy efficiency.

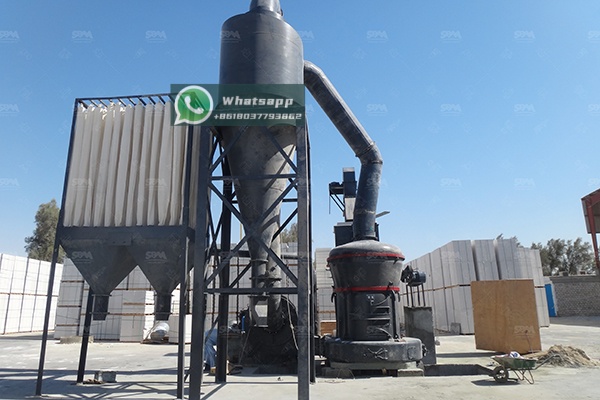

The design of a quartz grinding plant for Libyan construction aggregates should be tailor-made based on local site conditions, power supply, and raw material composition. Shanghai Zenith engineers typically follow a systematic process design that includes:
These steps ensure consistent high-quality quartz aggregate, ready for mixing into concrete or asphalt binders used in Libyan infrastructure projects.
Choosing Shanghai Zenith Machinery’s grinding solutions offers multiple advantages:
These features make Zenith mills a long-term investment for companies involved in materials processing and construction aggregate production.
Shanghai Zenith Machinery Co., Ltd. understands that installation and operation in different countries require localized support. The company offers remote technical assistance, on-site commissioning, and training for customer teams. In Libya, Zenith engineers can provide guidance for equipment optimization, ensuring that the quartz grinding line achieves the targeted 1–3 TPH rate with minimal downtime.
Spare parts and accessories are supplied promptly through regional distributors, ensuring stable continuous production without unnecessary interruptions.
The demand for high-quality construction materials in Libya is driving the need for advanced mineral grinding systems. Quartz, as a durable and versatile mineral, can greatly enhance the performance of concrete and other aggregates when properly ground. For a 1–3 TPH capacity, Shanghai Zenith’s MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill provide ideal solutions—combining performance, precision, and environmental responsibility.
By adopting Zenith’s proven technology, construction material producers in Libya can achieve consistent production, improved output quality, and long-term cost savings. As infrastructure development continues, such efficient grinding systems will play a vital role in supporting sustainable growth across the country.
Shanghai Zenith Machinery Co., Ltd. remains committed to innovation and excellence in grinding technology—empowering customers around the world with reliable and efficient mineral processing solutions.
