The oil and gas industry in Egypt has experienced significant growth in recent years, driven by major discoveries in the Western Desert, the Nile Delta, and offshore Mediterranean fields. Drilling fluids, commonly known as drilling mud, play a critical role in successful well construction. Among the many additives used in these fluids, quartz powder (silica flour) is indispensable for controlling filtration, adjusting density, and providing abrasion resistance. The standard specification for quartz powder in drilling mud is often 200 mesh (74 microns), which ensures both effective suspension in the mud system and optimal rheological properties. To meet this demand, efficient and reliable grinding equipment is essential. Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of industrial grinding mills in China, offers a complete range of solutions for processing quartz into the precise 200-mesh powder required by the Egyptian drilling industry.
Quartz powder is added to water-based and oil-based drilling muds for several reasons. First, it acts as a weighting agent to increase the density of the mud, helping to control formation pressure and prevent blowouts. Second, fine quartz particles help form a thin, low-permeability filter cake on the borehole wall, reducing fluid loss into the formation. Third, the hardness of quartz improves the mud’s ability to carry cuttings to the surface without excessive wear on the pump and circulation equipment. The particle size distribution is critical: if the powder is too coarse (above 200 mesh), it may settle too quickly; if too fine, it can increase viscosity excessively. Therefore, achieving a consistent 200-mesh product with a narrow particle size distribution is the primary goal for drilling mud manufacturers in Egypt.
Quartz, with a Mohs hardness of 7, is a highly abrasive material. Grinding it to 200 mesh requires equipment that can withstand severe wear while maintaining high throughput. Traditional ball mills, while capable, often suffer from high energy consumption and frequent liner replacement. Additionally, the heat generated during grinding can affect the moisture content and flowability of the final product. Modern vertical roller mills and trapezium mills have proven more effective for such applications, offering lower specific energy consumption, longer service life of wear parts, and better product fineness control. Shanghai Zenith Machinery has developed a series of grinding mills specifically engineered for hard minerals like quartz, ensuring that Egyptian drilling mud producers can achieve the required 200-mesh specification with maximum efficiency.
Based on extensive field experience and laboratory tests, Shanghai Zenith Machinery recommends two series of grinding mills for quartz processing to 200 mesh in drilling mud applications: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both machines are proven in thousands of installations worldwide, including in the Middle East and Africa.

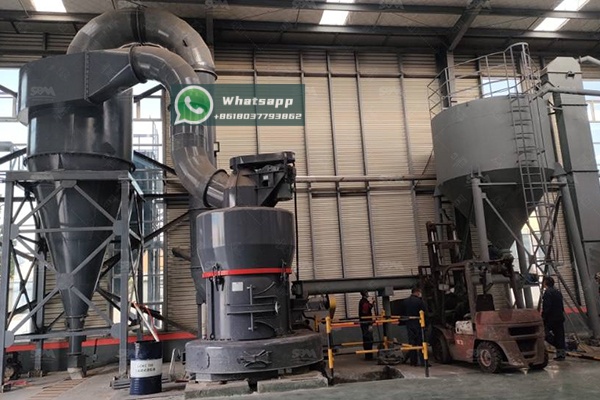

The MTW series is a modern upgrade of the traditional Raymond mill, featuring multiple patented technologies. Its trapezium-shaped rollers and ring reduce material slippage and improve grinding efficiency. The mill is equipped with an automatic lubrication system, a variable-frequency powder classifier, and a fully enclosed gearbox for dust-free operation. For quartz feed sizes up to 50 mm, the MTW mill can produce final fineness ranging from 1.6 mm to 0.038 mm (400 mesh), easily covering the 200 mesh target. The model MTW175G is particularly suitable for medium-scale production (9.5–25 t/h) and is widely used in North African drilling mud plants. Below is the technical parameter table for the MTW175G:
| Parameter | Value |
|---|---|
| Max. Feed Size (mm) | <40 |
| Final Size (mm) | 1.6 – 0.045 |
| Capacity (t/h) | 9.5 – 25 |
| Main Motor Power (kW) | 160 |
| Fan Motor Power (kW) | 200 |
| Number of Rollers | 5 (trapezium type) |
| Classifier Speed Adjustment | Variable frequency |
The LM Vertical Grinding Mill combines crushing, grinding, drying, and classifying in one unit, greatly simplifying the process flow. Its rotating grinding table and stationary rollers compress and shear the quartz particles, producing a uniform product. The integrated classifier can be adjusted to achieve exact 200 mesh (74 µm) with high precision. The LM series is available in several sizes; for quartz, the LM130K model is a popular choice for capacities up to 28 t/h. The LM series offers additional benefits: lower noise levels, a compact footprint (saving valuable plant space), and easy maintenance due to the absence of grinding media. The table below shows key parameters for the LM130K mineral mill:
| Parameter | Value |
|---|---|
| Plate Diameter (mm) | 1300 |
| Capacity (t/h) | 10 – 28 |
| Output Fineness (μm) | 170 – 40 (adjustable, 74 μm for 200 mesh) |
| Max Feed Size (mm) | <38 |
| Main Motor Power (kW) | 200 |
| Integrated Drying | Yes (hot air optional) |
Shanghai Zenith Machinery Co., Ltd. has over three decades of experience in powder processing equipment. The company’s mills are designed with high-chromium wear parts that resist abrasion from quartz, ensuring long intervals between maintenance. Furthermore, Zenith provides complete turnkey solutions, including feeders, conveyors, dust collectors, and control systems, tailored to the specific needs of Egyptian clients. The company has a strong service network in the Middle East and offers on-site commissioning and training. Both the MTW and LM series mills are capable of running continuously for 24 hours, meeting the high demand of drilling mud preparation plants. In addition, the energy consumption per ton of finished product is significantly lower than that of ball mills, reducing operational costs—a crucial factor in the competitive Egyptian market.
The Egyptian drilling industry continues to expand, and the demand for high-quality 200-mesh quartz powder will remain strong. By investing in advanced grinding technology from Shanghai Zenith, drilling mud manufacturers can achieve consistent product quality, higher productivity, and lower operating costs. The MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill are both excellent choices, each offering unique advantages depending on the scale of operation and specific site conditions. With reliable equipment, expert support, and proven performance, Shanghai Zenith Machinery is the ideal partner for quartz grinding projects in Egypt.
