Quartz is a vital industrial mineral that finds extensive applications across multiple industries due to its hardness, durability, and chemical stability. In Bangladesh, the demand for finely ground quartz powder with a fineness of around 200 mesh has been increasing significantly, especially in the plastic filler industry. This specific fineness enhances the mechanical and thermal properties of plastic composites, making them more robust and resistant to deformation. The use of a reliable and efficient grinding mill is essential for producing consistent quartz powder within such specifications.
In this article, we will discuss the requirements of quartz grinding for plastic filler production in Bangladesh and explore how modern grinding technologies—particularly those provided by Shanghai Zenith Machinery Co., Ltd.—can deliver high-quality output. As a well-established manufacturer specializing in industrial grinding equipment, Shanghai Zenith offers a series of advanced grinding mills designed to achieve precise fineness, stable output, and energy-efficient operation.
Quartz powder (SiO₂) is widely used as a filler material in plastic industries to improve product performance. When added to plastic resin formulations, quartz enhances stiffness, dimensional stability, and resistance to abrasion while maintaining a smooth surface finish. For these benefits to manifest, however, the quartz particles must be uniformly fine—typically at 200 mesh (74 microns). This size distribution ensures proper dispersion and strong interfacial bonding between the filler and polymer matrix.
In Bangladesh, where the plastics industry is rapidly expanding to meet both domestic and export demands, the importance of locally producing high-grade quartz fillers cannot be overstated. The consistency of the product ensures reduced dependency on imports and lowers the cost of production for manufacturers.
Producing 200 mesh quartz powder requires precise control over several process parameters. The grinding mill must achieve uniform fineness, maintain low contamination levels, and minimize energy consumption. Moreover, since quartz is highly abrasive, the grinding equipment must be robust and capable of withstanding long-term wear and tear.
Key technical requirements for such an application include:
Meeting these criteria requires advanced grinding technology, and this is where Shanghai Zenith Machinery Co., Ltd. offers a competitive edge.
Shanghai Zenith Machinery Co., Ltd. is a professional manufacturer dedicated to the research, development, and production of industrial powder grinding equipment. With decades of technological innovation and industrial experience, Zenith has developed a wide range of mills suitable for hard minerals like quartz. Among these, the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill stand out for 200 mesh applications in the plastic filler industry.

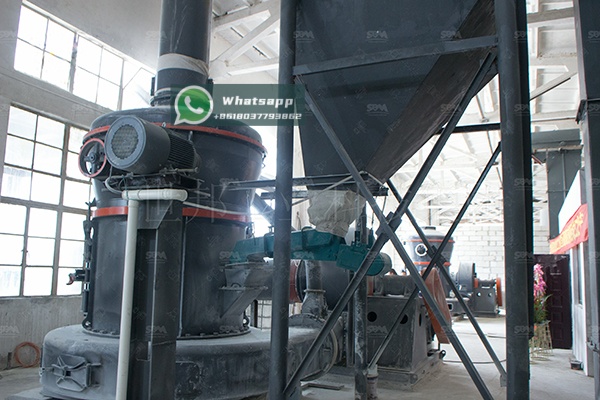

The MTW Trapezium Grinding Mill is one of Zenith’s most advanced designs, incorporating European technology. It is ideal for medium to fine powder production and can handle quartz up to 50 mm feed size. For plastic filler production, its ability to deliver consistent particle size distribution around 200 mesh is crucial. It also offers lower operational noise and higher mechanical reliability.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
The MTW mill’s unique trapezoidal blade design improves grinding efficiency and reduces energy loss, while the integral transmission system ensures a stable operation. For medium-capacity production of around 10–25 tons per hour, this model is ideal for processing quartz into 200 mesh powder used in fillers and coatings.
For larger production lines requiring an all-in-one grinding, drying, and classification solution, the LM Vertical Grinding Mill from Zenith offers a compact and eco-friendly choice. It integrates multiple functions—crushing, grinding, drying, and material conveying—into a single system. This integration minimizes the need for additional equipment, thereby reducing production complexity and plant footprint.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max. Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
The LM series is particularly suitable for large-scale plants in Bangladesh’s industrial zones. Thanks to its advanced airflow system and internal powder separator, it achieves uniform fineness levels that can easily correspond to 200 mesh output requirements. Additionally, its sealed design enhances dust collection efficiency, ensuring that the plant meets environmental standards while maintaining product purity.
The typical quartz grinding process in a plastic filler production facility involves several stages:
This streamlined process minimizes waste and ensures uniform product quality. Additionally, modern automation systems allow continuous monitoring of particle size, air pressure, and output consistency, ensuring stable production.
In Bangladesh’s rapidly industrializing economy, energy consumption and environmental impact are key concerns. Both MTW and LM series grinding mills incorporate advanced air-flow balance systems, low-resistance cyclones, and high-efficiency powder collectors, making them environmentally responsible solutions. Energy consumption per ton of product is significantly reduced compared to traditional ball mills or Raymond mills.
Furthermore, thanks to enhanced dust collection technology, air pollution around the grinding site is minimized. The machines are designed to meet international environmental standards while maintaining high throughput and product quality.

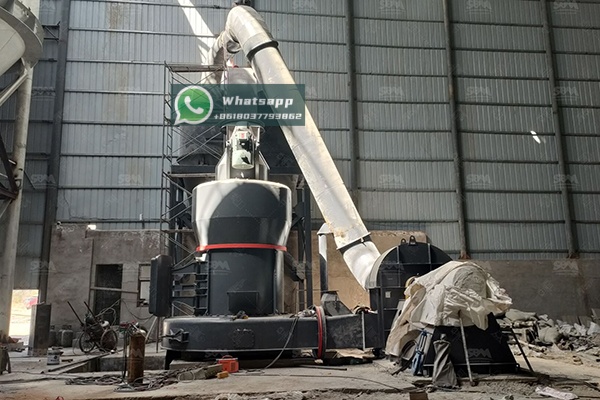

Several Bangladeshi companies involved in plastic masterbatch production have recently equipped their production lines with Zenith grinding systems. The installation of the MTW175G model allowed them to achieve steady production of quartz filler at 200 mesh, with a capacity of approximately 20 tons per hour. The result was a 25% improvement in filler dispersion quality, lower resin consumption per batch, and better surface gloss of the final plastic products.
Choosing the right quartz grinding mill is a fundamental step toward efficient and sustainable plastic filler production. For operators in Bangladesh, the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. represent two highly viable options. The MTW model is ideal for medium-scale production with high flexibility, while the LM series suits larger plants requiring integrated operations and superior energy performance.
Shanghai Zenith’s long-term experience in ultra-fine and industrial mineral grinding ensures that clients receive comprehensive technical support—from process design to equipment commissioning and maintenance. By implementing these advanced grinding technologies, manufacturers in Bangladesh can elevate their production quality, reduce costs, and compete effectively in the global market for high-performance plastic filler materials.
Shanghai Zenith Machinery Co., Ltd. continues to lead the innovation in grinding technology, striving to provide reliable, intelligent, and cost-effective solutions for modern material processing industries worldwide.
